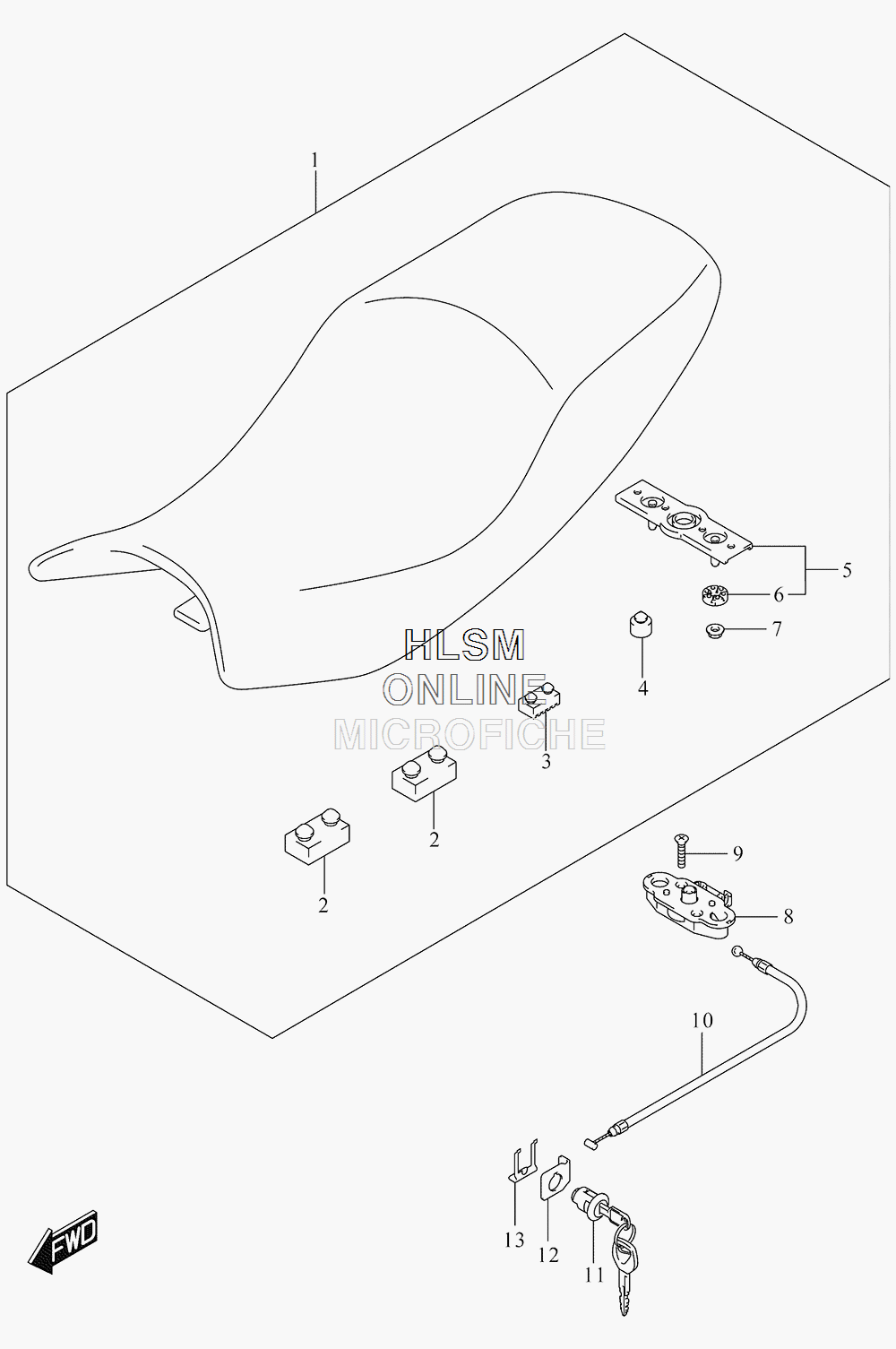

SEAT для Suzuki GSX-650FA L5 - 2015 года выпуска
-
№АртикулНазвание
-
145100-17H10-P3H SEAT ASSY (BLACK)SEAT ASSY (BLACK)
-
245149-17H10 CUSHIONCUSHION
-
345149-42F00 CUSHIONCUSHION
-
409321-10011 CUSHIONCUSHION
-
545290-42F02 STRIKERSTRIKER
-
645213-42F00 CUSHIONCUSHION
-
708319-3106A NUTNUT
-
845220-47H00 BRACKET, SEAT SUPPORTBRACKET, SEAT SUPPORT
-
902122-0630A SCREWSCREW
-
1045280-17H00 CABLE, SEAT LOCKCABLE, SEAT LOCK
-
1195700-14F00 LOCK ASSY, SEATLOCK ASSY, SEAT
-
1245288-14F00 GUIDE, SEAT LOCK CABLEGUIDE, SEAT LOCK CABLE
-
1345289-11F00 PLATE, SEAT LOCKPLATE, SEAT LOCK
