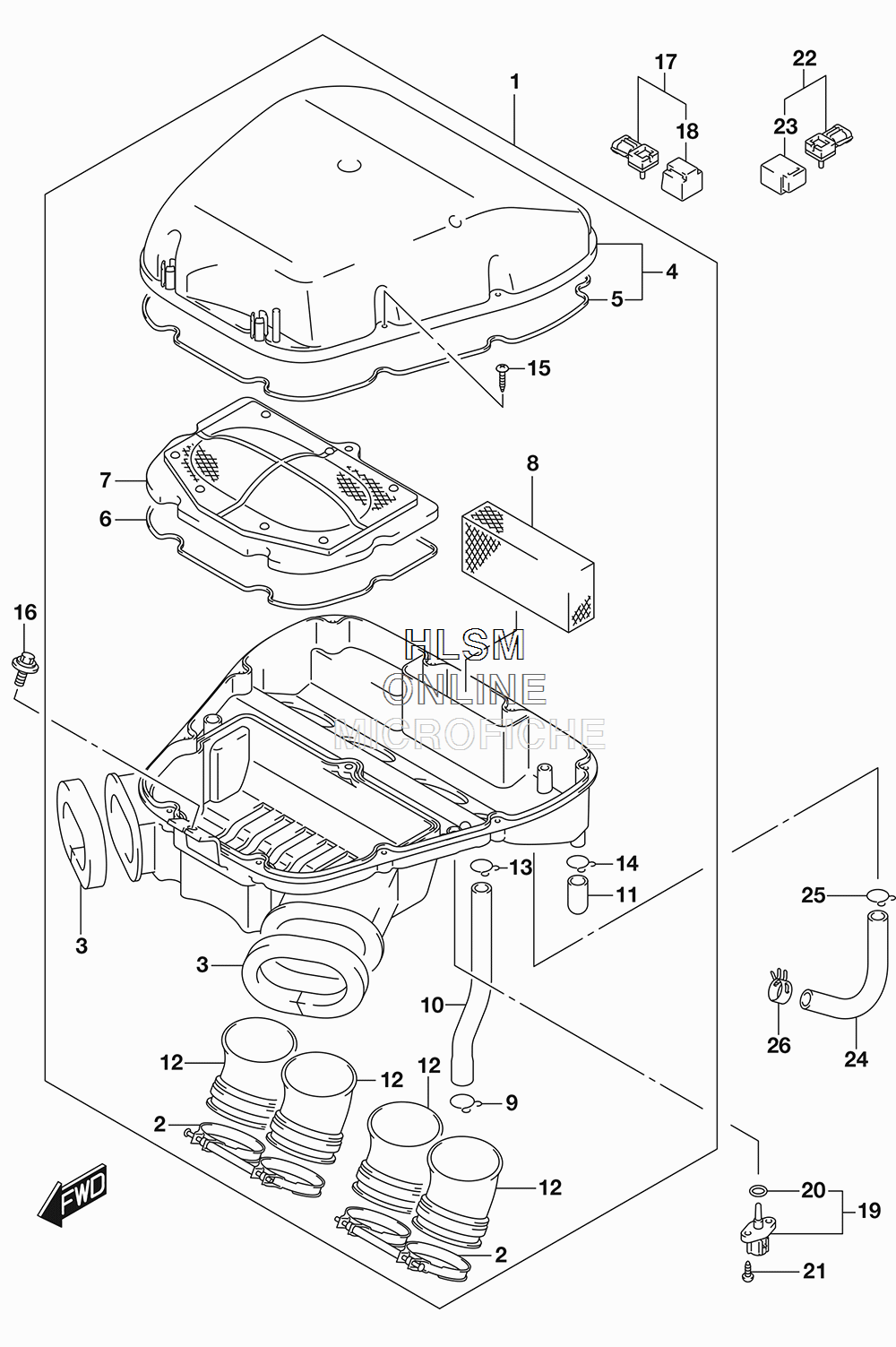

AIR CLEANER для Suzuki GSX 1300RA - 2017 года выпуска
-
№АртикулНазвание
-
113700-15H02 CLEANER ASSY, AIRCLEANER ASSY, AIR
-
213170-15H10 ...CLAMP...CLAMP
-
313736-15H01 ...CUSHION, DUCT...CUSHION, DUCT
-
413740-15H00 ...CAP, AIR CLEANER...CAP, AIR CLEANER
-
513746-15H00 ......GASKET, CAP......GASKET, CAP
-
613756-15H00 ...GASKET, CASE...GASKET, CASE
-
713780-15H00 ...FILTER ASSY...FILTER ASSY
-
813788-15H00 ...FILTER, BREATHER...FILTER, BREATHER
-
909401-16401 ...CLIP...CLIP
-
1013853-15H00 ...TUBE, BREATHER...TUBE, BREATHER
-
1113859-41B10 ...PLUG...PLUG
-
1213882-41G00 ...TUBE, OUTLET...TUBE, OUTLET
-
1309401-14101 ...CLIP...CLIP
-
1409401-14101 ...CLIP...CLIP
-
1503541-0525A ...SCREW...SCREW
-
1609116-06130 BOLT (6X16)BOLT (6X16)
-
1715630-29G40 SENSOR, BOOSTSENSOR, BOOST
-
1815625-29G40 ...COVER...COVER
-
1913650-14G10 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
2013655-14G10 ...O RING...O RING
-
2103511-0516A SCREWSCREW
-
2215630-29G30 SENSOR, AIR PRESSURESENSOR, AIR PRESSURE
-
2315625-29G30 ...COVER...COVER
-
2413697-15H00 HOSE, ISC VALVEHOSE, ISC VALVE
-
2509401-15101 CLIPCLIP
-
2609401-16403 CLIPCLIP
