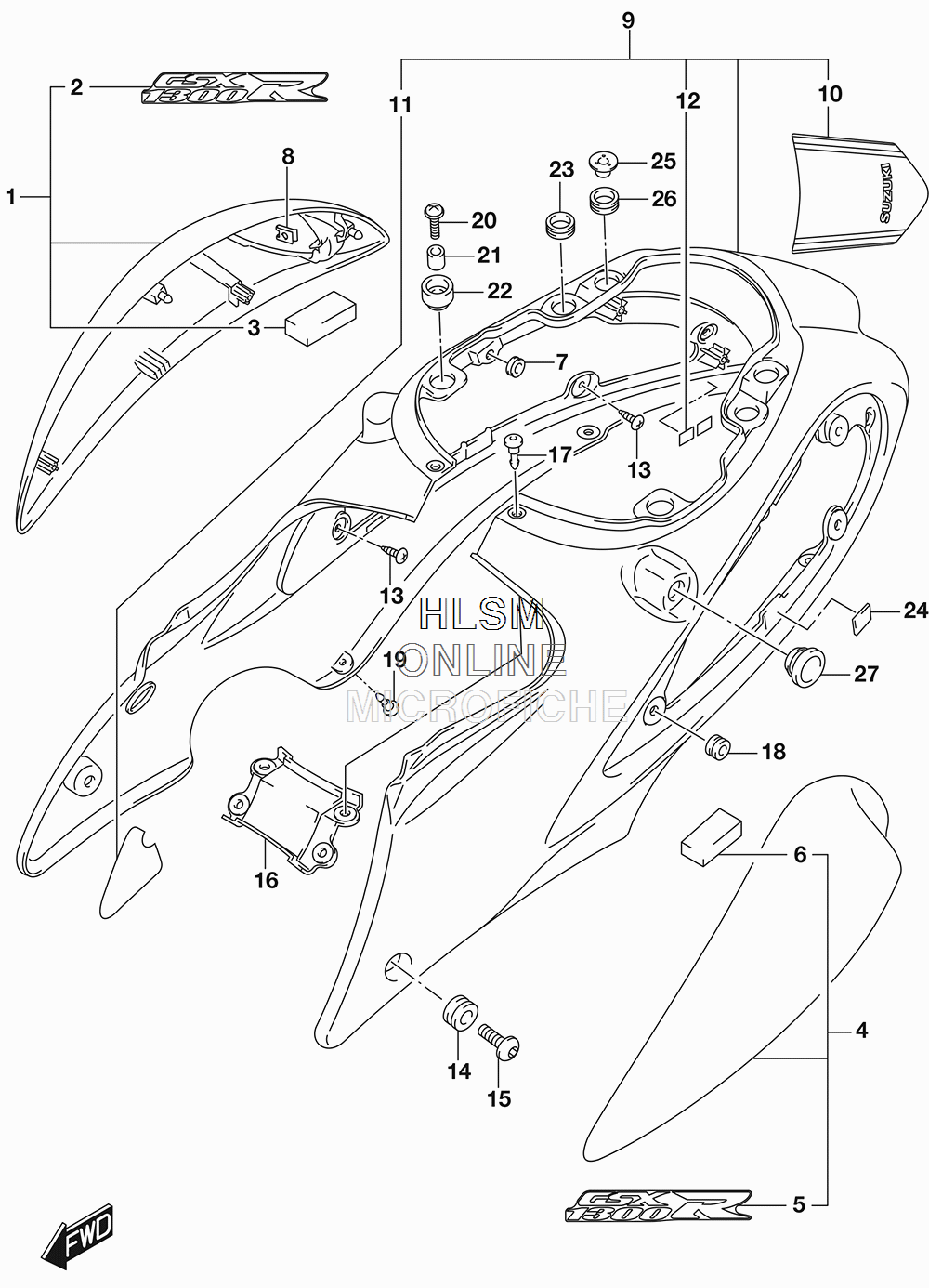

SIDE COVER для Suzuki GSX 1300RA - 2017 года выпуска
-
№АртикулНазвание
-
1-147110-15H30-6UX COVER, FRAME (RH) (6UX - BLACK FOR YVB)COVER, FRAME (RH) (6UX - BLACK FOR YVB)
-
1-247110-15H30-YWW COVER, FRAME (RH) (YWW - WHITE FOR AGT)COVER, FRAME (RH) (YWW - WHITE FOR AGT)
-
1-347110-15H30-5FX COVER, FRAME (RH) (5FX - BLUE FOR BBD)COVER, FRAME (RH) (5FX - BLUE FOR BBD)
-
2-168131-15H10-A98 ...EMBLEM, FRAME COVER (A98 - GRAY/RED FOR 6UX)...EMBLEM, FRAME COVER (A98 - GRAY/RED FOR 6UX)
-
2-268131-15H10-BGA ...EMBLEM, FRAME COVER (BGA - GRAY/RED FOR REF 1-2 YWW - WHITE FOR AGT)...EMBLEM, FRAME COVER (BGA - GRAY/RED FOR REF 1-2 YWW - WHITE FOR AGT)
-
347511-15H00 ...CUSHION...CUSHION
-
4-147210-15H30-6UX COVER, FRAME (LH) (FOR YVB - BLACK)COVER, FRAME (LH) (FOR YVB - BLACK)
-
4-247210-15H30-YWW COVER, FRAME (LH) (YWW - WHITE FOR AGT)COVER, FRAME (LH) (YWW - WHITE FOR AGT)
-
4-347210-15H30-5FX COVER, FRAME (LH) (5FX - BLUE FOR BBD)COVER, FRAME (LH) (5FX - BLUE FOR BBD)
-
5-168131-15H10-A98 ...EMBLEM, FRAME COVER (A98 - GRAY/RED FOR 6UX)...EMBLEM, FRAME COVER (A98 - GRAY/RED FOR 6UX)
-
5-268131-15H10-BGA ...EMBLEM, FRAME COVER (BGA - GRAY/RED FOR REF 4-2 YWW - WHITE FOR AGT)...EMBLEM, FRAME COVER (BGA - GRAY/RED FOR REF 4-2 YWW - WHITE FOR AGT)
-
647511-15H00 ...CUSHION...CUSHION
-
709320-06016 CUSHIONCUSHION
-
809148-04034 NUTNUT
-
9-147310-15H30-YVB COVER, FRAME CENTER (FOR YVB - BLACK)COVER, FRAME CENTER (FOR YVB - BLACK)
-
9-247310-15H30-YWW COVER, FRAME CENTER (YWW - WHITE FOR AGT)COVER, FRAME CENTER (YWW - WHITE FOR AGT)
-
9-347310-15H30-YKY COVER, FRAME CENTER (YKY - BLUE FOR BBD)COVER, FRAME CENTER (YKY - BLUE FOR BBD)
-
10-168135-15H40-BF3 ...TAPE, FRAME COVER CENTER (BF3 - BLACK/GRAY FOR YVB)...TAPE, FRAME COVER CENTER (BF3 - BLACK/GRAY FOR YVB)
-
10-268135-15H40-AJV ...TAPE, FRAME COVER CENTER (AJV - GRAY/BLACK FOR YWW)...TAPE, FRAME COVER CENTER (AJV - GRAY/BLACK FOR YWW)
-
10-368135-15H40-BF5 ...TAPE, FRAME COVER CENTER (BF5 - BLUE/WHITE FOR YKY)...TAPE, FRAME COVER CENTER (BF5 - BLUE/WHITE FOR YKY)
-
1147312-15H00 ...TAPE, CENTER...TAPE, CENTER
-
1245516-01H00 ...CUSHION...CUSHION
-
1309136-05062 SCREW (5X15)SCREW (5X15)
-
1409320-09016 CUSHIONCUSHION
-
1509139-06190 BOLT (6X20)BOLT (6X20)
-
16-147411-15H00-YVB LID, CENTER (FOR YVB - BLACK)LID, CENTER (FOR YVB - BLACK)
-
16-247411-15H00-YWW LID, CENTER (YWW - WHITE FOR AGT)LID, CENTER (YWW - WHITE FOR AGT)
-
16-347411-15H00-YKY LID, CENTER (YKY - BLUE FOR BBD)LID, CENTER (YKY - BLUE FOR BBD)
-
1709409-06314-5PK CLIP (5PK - BLACK)CLIP (5PK - BLACK)
-
1809320-09016 CUSHIONCUSHION
-
1909409-06329 CLIPCLIP
-
2009136-06105 SCREW (6X20)SCREW (6X20)
-
2109180-06288 SPACER (6.5X10X11)SPACER (6.5X10X11)
-
2247115-16G00 CUSHION, UPPER FRONTCUSHION, UPPER FRONT
-
2347191-24F00 CUSHION, UPPER CENTERCUSHION, UPPER CENTER
-
2433651-37000 CUSHION (170X95) (CUT AS REQUIRED)CUSHION (170X95) (CUT AS REQUIRED)
-
2547190-24F21 WASHER, UPPER REARWASHER, UPPER REAR
-
2647191-24F30 CUSHION, UPPER REARCUSHION, UPPER REAR
-
2747191-24F20 SPACER, SIDE CENTERSPACER, SIDE CENTER
