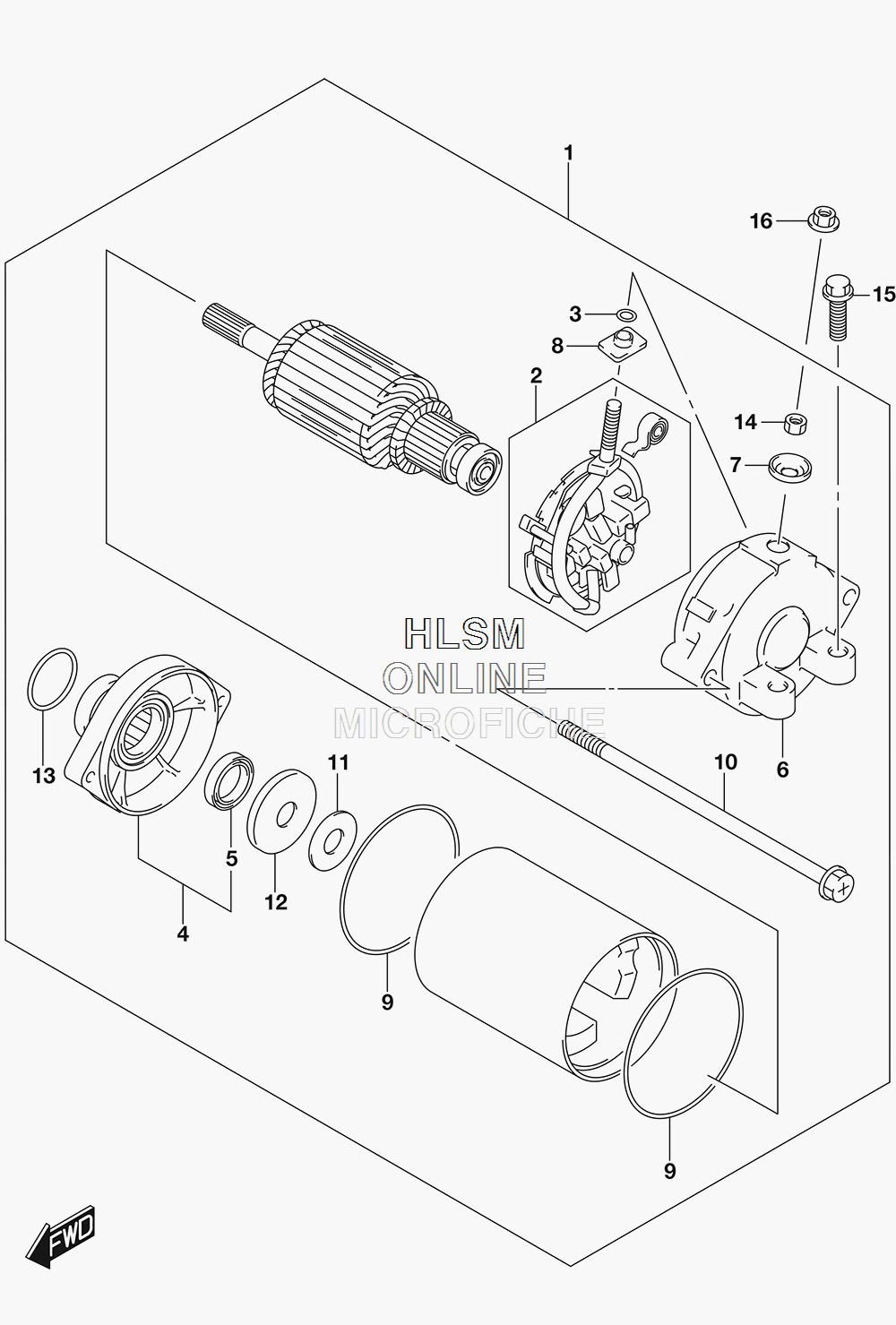

STARTING MOTOR для Suzuki GSX 1300RA - 2017 года выпуска
-
№АртикулНазвание
-
131100-15H20 MOTOR ASSY, STARTINGMOTOR ASSY, STARTING
-
231132-45C00 ...HOLDER SET, BRUSH...HOLDER SET, BRUSH
-
331143-38300 ...O RING...O RING
-
431150-15H20 ...HOUSING ASSY, STARTER...HOUSING ASSY, STARTER
-
531153-49210 ......OIL SEAL......OIL SEAL
-
631171-24F00 ...FRAME, STARTER END...FRAME, STARTER END
-
731172-38300 ...BUSHING...BUSHING
-
831173-88C00 ...BUSHING...BUSHING
-
931264-44110 ...O RING...O RING
-
1031281-24F00 ...BOLT...BOLT
-
1131361-38300 ...SHIM...SHIM
-
1231361-43400 ...WASHER...WASHER
-
1309280-24003 ...O RING (D:3,ID:24.5)...O RING (D:3,ID:24.5)
-
1408310-00067 ...NUT...NUT
-
1501547-0625A BOLTBOLT
-
1608361-3506A NUTNUT
