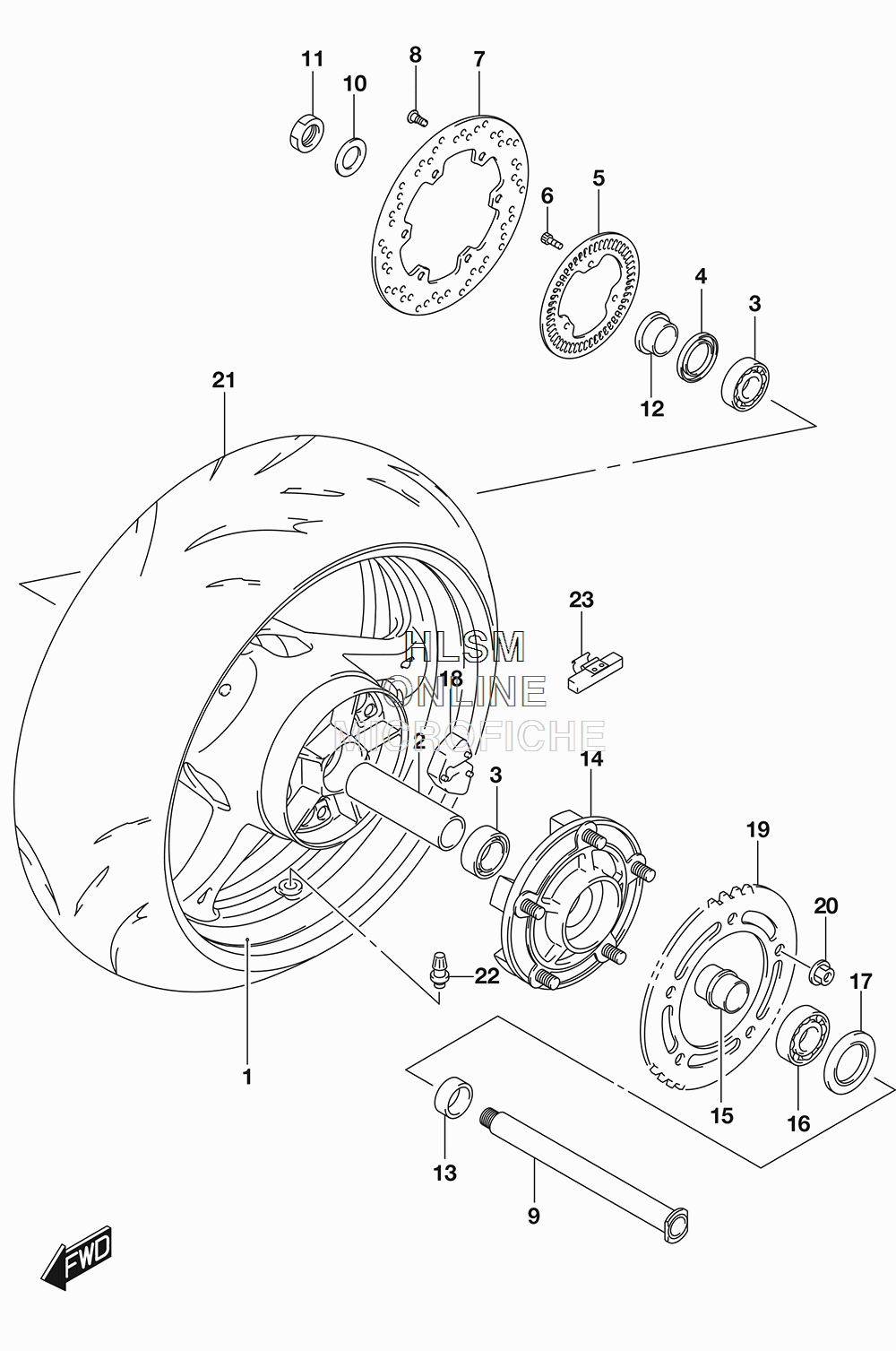

WHEEL - REAR (CALIF.) для Suzuki GSX 1300RA - 2017 года выпуска
-
№АртикулНазвание
-
164111-15H11-019 WHEEL, REAR (17M/CXMT6.00) (BLACK)WHEEL, REAR (17M/CXMT6.00) (BLACK)
-
264731-40F10 SPACER, HUB BEARINGSPACER, HUB BEARING
-
309262-28052 BEARING (28X52X12)BEARING (28X52X12)
-
409284-37001 OIL SEAL (37X52X8) (RH)OIL SEAL (37X52X8) (RH)
-
564162-23H00 RING, SPEED SENSOR (60T)RING, SPEED SENSOR (60T)
-
607130-0512A BOLTBOLT
-
769211-15H00 DISC, REAR BRAKEDISC, REAR BRAKE
-
809106-08160 BOLT (8X21)BOLT (8X21)
-
964711-33E20 AXLE, REARAXLE, REAR
-
1009160-25070 WASHER (25.2X42X3.2)WASHER (25.2X42X3.2)
-
1109159-25003 NUTNUT
-
1264741-35F00 SPACER, AXLE (RH)SPACER, AXLE (RH)
-
1364751-49G00 SPACER, AXLE (LH)SPACER, AXLE (LH)
-
1464610-35F30 DRUM, REAR SPROCKETDRUM, REAR SPROCKET
-
1564733-35F00 RETAINER, SPROCKET DRUMRETAINER, SPROCKET DRUM
-
1609262-32022 BEARING (32X65X17)BEARING (32X65X17)
-
1709285-39001 OIL SEAL (39X65X7)OIL SEAL (39X65X7)
-
1864651-35F20 ABSORBER, HUB SHOCKABSORBER, HUB SHOCK
-
1964511-15H00 SPROCKET, REAR (NT:43)SPROCKET, REAR (NT:43)
-
2008319-3110A NUTNUT
-
2165110-24F70 TIRE, REAR 190/50 ZR17 M/C (73W) BT015 R (BRIDGESTONE)TIRE, REAR 190/50 ZR17 M/C (73W) BT015 R (BRIDGESTONE)
-
2243130-24A00 VALVE ASSY, WHEEL RIM (TR412)VALVE ASSY, WHEEL RIM (TR412)
-
23-155411-22H00 BALANCER, WHEEL NO.1 (10G)BALANCER, WHEEL NO.1 (10G)
-
23-255412-22H00 BALANCER, WHEEL NO.2 (20G)BALANCER, WHEEL NO.2 (20G)
-
23-355413-22H00 BALANCER, WHEEL NO.3 (30G)BALANCER, WHEEL NO.3 (30G)
