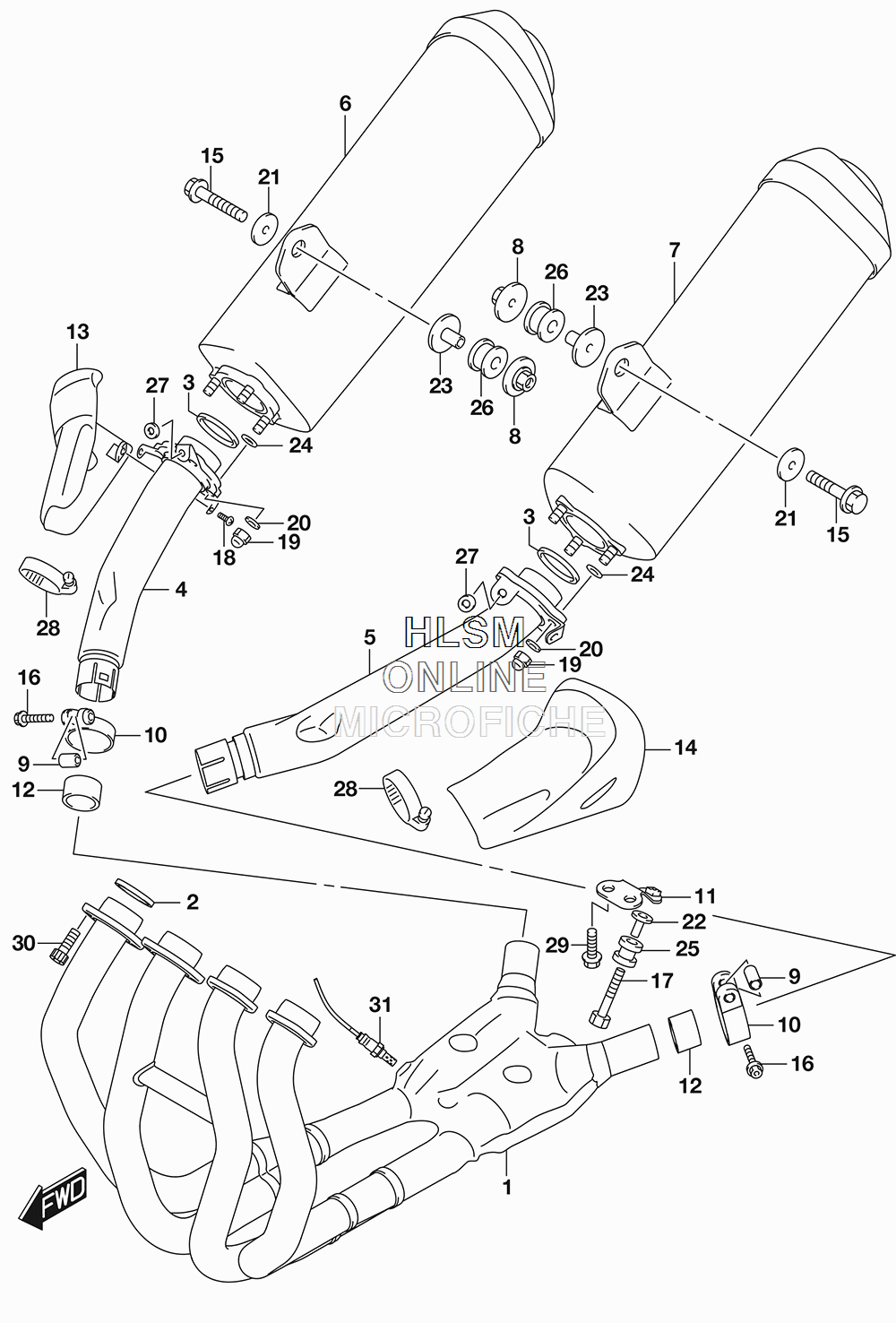

MUFFLER (CANADA) для Suzuki GSX 1300RA - 2017 года выпуска
-
№АртикулНазвание
-
114100-15H02 PIPE, EXHAUSTPIPE, EXHAUST
-
214181-22D01 GASKETGASKET
-
314181-33E00 GASKET, JOINTGASKET, JOINT
-
414230-15H00 PIPE, JOINT (RH)PIPE, JOINT (RH)
-
514240-15H00 PIPE, JOINT (LH)PIPE, JOINT (LH)
-
614310-15H03-H01 BODY, MUFFLER (RH)BODY, MUFFLER (RH)
-
714340-15H03-H01 BODY, MUFFLER (LH)BODY, MUFFLER (LH)
-
814414-15H00 NUTNUT
-
914458-45G10 SPACERSPACER
-
1014459-15H00 CLAMPCLAMP
-
1114770-15H00 BRACKETBRACKET
-
1214771-15H00 CONNECTORCONNECTOR
-
1314780-15H00 COVER, FRONT (RH)COVER, FRONT (RH)
-
1414790-15H00 COVER, FRONT (LH)COVER, FRONT (LH)
-
1509103-08358 BOLT (8X45)BOLT (8X45)
-
1609103-08392 BOLT (8X40)BOLT (8X40)
-
1709118-08152-A05 BOLT (8X45)BOLT (8X45)
-
1809139-06027 SCREW (6X12)SCREW (6X12)
-
1909159-08116 NUTNUT
-
2009160-08059 WASHER (8.5X18X1.6)WASHER (8.5X18X1.6)
-
2109160-08142 WASHER (8.5X28X1.5)WASHER (8.5X28X1.5)
-
2209180-08152 SPACER (8.6X12X24.2)SPACER (8.6X12X24.2)
-
2309180-08216 SPACER (8.6X12X25)SPACER (8.6X12X25)
-
2409280-08012 O RING (D:1.9,ID:7.8)O RING (D:1.9,ID:7.8)
-
2509320-12048 CUSHIONCUSHION
-
2609320-12049 CUSHIONCUSHION
-
2709321-10018 CUSHIONCUSHION
-
2809402-70503 CLAMPCLAMP
-
2901550-0816A BOLTBOLT
-
3007130-0825A BOLTBOLT
-
3118213-15H10 SENSOR, OXYGENSENSOR, OXYGEN
