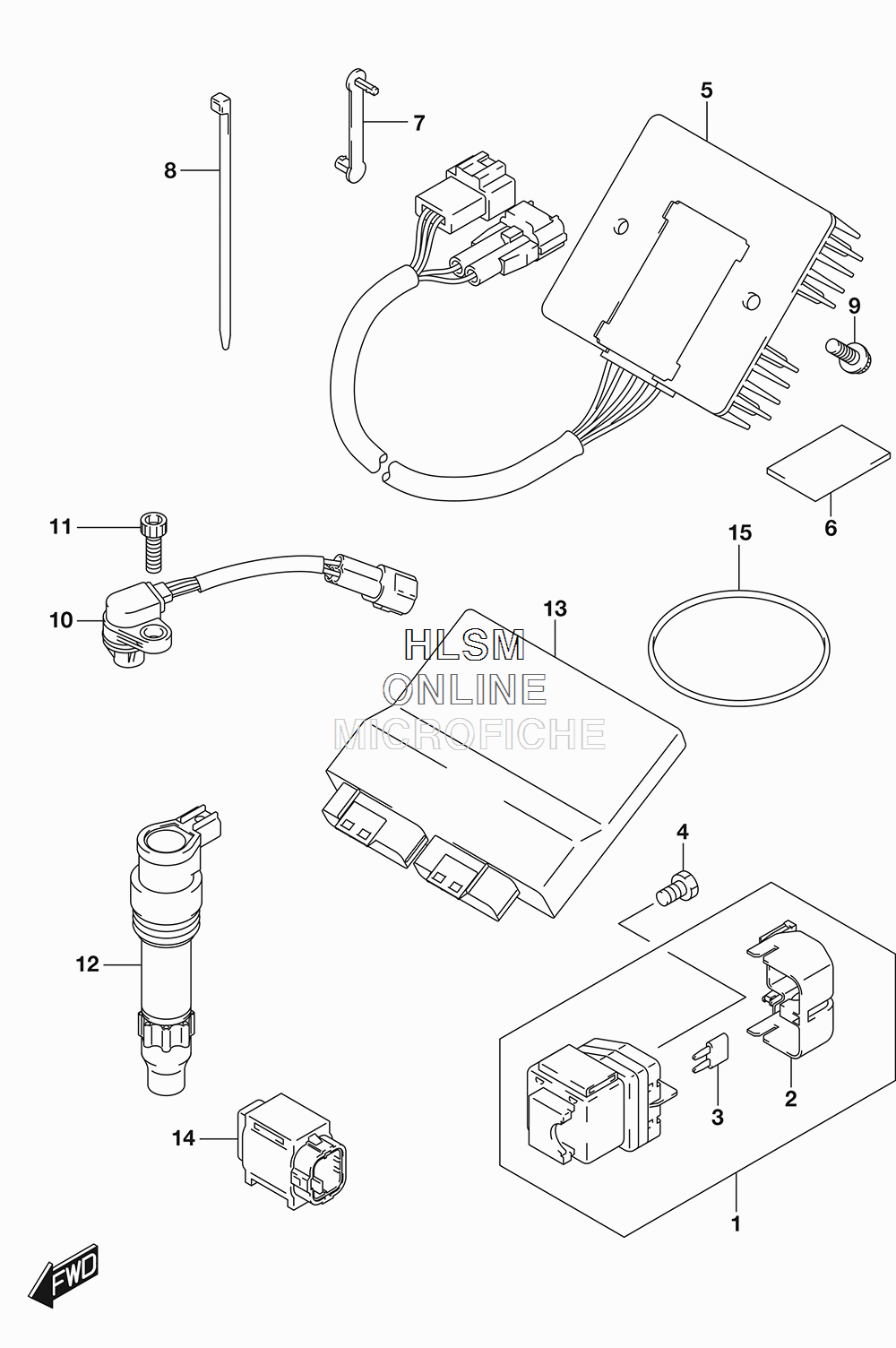

ELECTRICAL (CANADA) для Suzuki GSX 1300RA - 2017 года выпуска
-
№АртикулНазвание
-
131800-44G00 RELAY ASSY, STARTING MOTORRELAY ASSY, STARTING MOTOR
-
231861-38G00 ...COVER, RECTIFIER...COVER, RECTIFIER
-
309481-30501 ...FUSE (30A)...FUSE (30A)
-
409128-06013 SCREW (6X8)SCREW (6X8)
-
532800-10G40 RECTIFIER ASSYRECTIFIER ASSY
-
633652-36000 PROTECTOR (30X50X3)PROTECTOR (30X50X3)
-
736651-48E00 CLAMP, RECTIFIER LEADCLAMP, RECTIFIER LEAD
-
809407-14407 CLAMP (L:145)CLAMP (L:145)
-
902162-0616A SCREWSCREW
-
1033220-01H00 SENSOR ASSY, CAM POSITIONSENSOR ASSY, CAM POSITION
-
1107130-0616A BOLTBOLT
-
1233410-24F10 COIL ASSY, IGNITIONCOIL ASSY, IGNITION
-
1332920-15H80 CONTROL UNIT, FICONTROL UNIT, FI
-
1433960-06G10 SENSOR ASSY, FUEL CUTSENSOR ASSY, FUEL CUT
-
1509280-76005 O RING (D:3.5,ID;76)O RING (D:3.5,ID;76)
