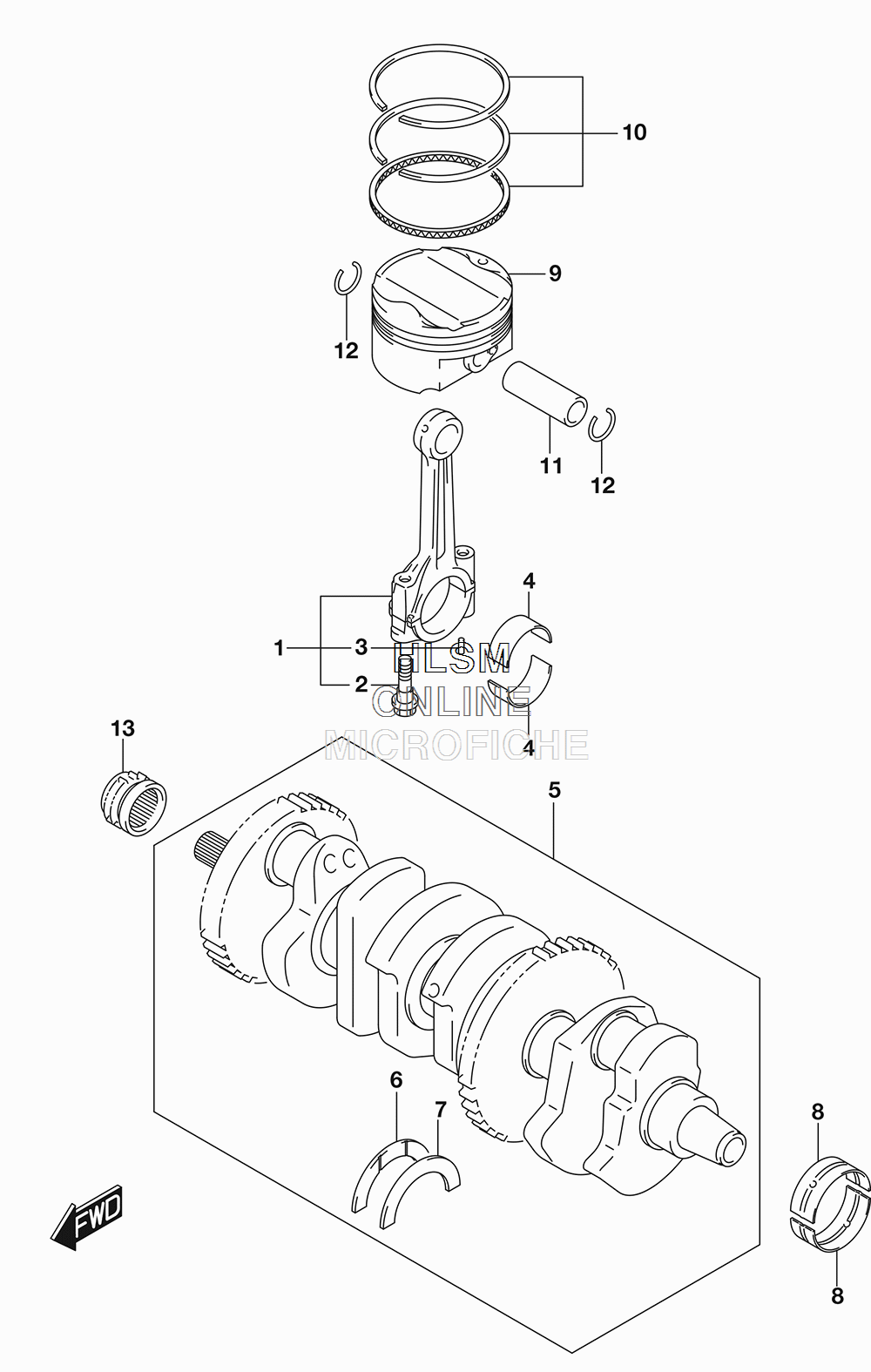

CRANKSHAFT W/ PISTON для Suzuki GSX 1300RA - 2017 года выпуска
-
№АртикулНазвание
-
112160-15H00 ROD ASSY, CONNECTINGROD ASSY, CONNECTING
-
212163-24F10 ...BOLT...BOLT
-
304221-04089 ...PIN...PIN
-
4-112164-46E01-0A0 BEARING, CRANK PIN (GREEN)BEARING, CRANK PIN (GREEN)
-
4-212164-46E01-0B0 BEARING, CRANK PIN (BLACK)BEARING, CRANK PIN (BLACK)
-
4-312164-46E01-0C0 BEARING, CRANK PIN (BROWN)BEARING, CRANK PIN (BROWN)
-
4-412164-46E01-0D0 BEARING, CRANK PIN (YELLOW)BEARING, CRANK PIN (YELLOW)
-
512000-15811 CRANKSHAFT SETCRANKSHAFT SET
-
612228-24F00-0D0 ...BEARING, THRUST (RH) (GREEN)...BEARING, THRUST (RH) (GREEN)
-
7-112228-24F00-0A0 ...BEARING, THRUST (LH) (RED)...BEARING, THRUST (LH) (RED)
-
7-212228-24F00-0B0 ...BEARING, THRUST (LH) (BLACK)...BEARING, THRUST (LH) (BLACK)
-
7-312228-24F00-0C0 ...BEARING, THRUST (LH) (BLUE)...BEARING, THRUST (LH) (BLUE)
-
7-412228-24F00-0D0 ...BEARING, THRUST (LH) (GREEN)...BEARING, THRUST (LH) (GREEN)
-
7-512228-24F00-0E0 ...BEARING, THRUST (LH) (YELLOW)...BEARING, THRUST (LH) (YELLOW)
-
7-612228-24F00-0F0 ...BEARING, THRUST (LH) (WHITE)...BEARING, THRUST (LH) (WHITE)
-
8-112229-15H10-0A0 BEARING, CRANKSHAFT (GREEN)BEARING, CRANKSHAFT (GREEN)
-
8-212229-15H10-0B0 BEARING, CRANKSHAFT (BLACK)BEARING, CRANKSHAFT (BLACK)
-
8-312229-15H10-0C0 BEARING, CRANKSHAFT (BROWN)BEARING, CRANKSHAFT (BROWN)
-
8-412229-15H10-0D0 BEARING, CRANKSHAFT (YELLOW)BEARING, CRANKSHAFT (YELLOW)
-
8-512229-15H10-0E0 BEARING, CRANKSHAFT (BLUE)BEARING, CRANKSHAFT (BLUE)
-
912111-15H00-0F0 PISTONPISTON
-
1012140-15H10 RING SET, PISTONRING SET, PISTON
-
1112151-07D00 PIN, PISTONPIN, PISTON
-
1209381-18003 CIRCLIPCIRCLIP
-
1312731-24F10 SPROCKET, CAM CHAINSPROCKET, CAM CHAIN
