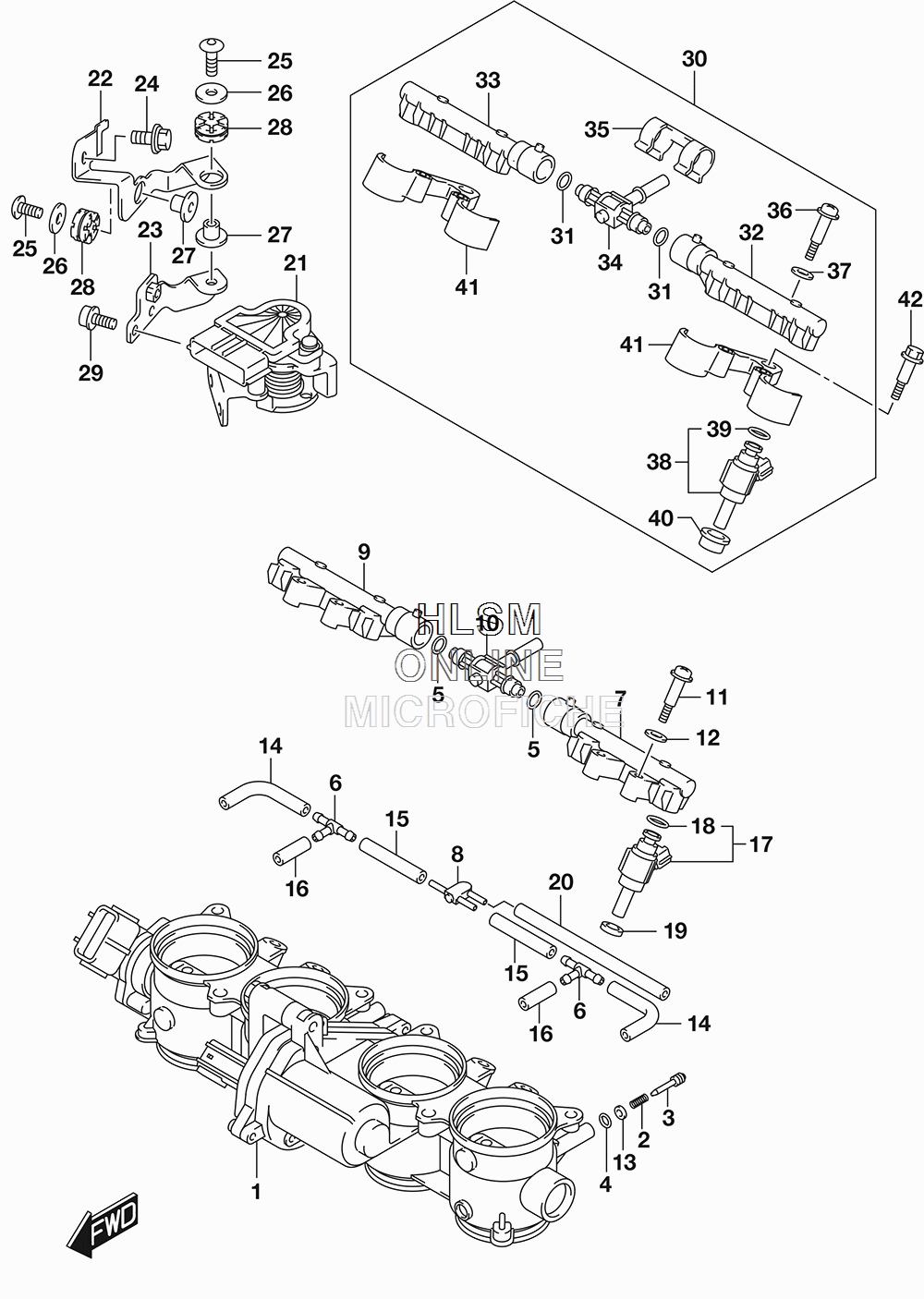

CARBURETOR - THROTTLE BODY (CANADA) для Suzuki GSX-R1000 - 2017 года выпуска
-
№АртикулНазвание
-
113405-17K00 BODY ASSY, THROTTLEBODY ASSY, THROTTLE
-
213268-48700 ...SPRING, THROTTLE SCREW...SPRING, THROTTLE SCREW
-
313269-33E00 ...SCREW...SCREW
-
413295-29900 ...O RING...O RING
-
513374-32G00 ...O RING...O RING
-
613685-02FA0 ...3WAY, VACUUM HOSE...3WAY, VACUUM HOSE
-
713471-17K00 ...DELIVERRY PIPE...DELIVERRY PIPE
-
813471-18H00 ...JOINT...JOINT
-
913472-17K00 ...DELIVERY PIPE...DELIVERY PIPE
-
1013473-17K00 ...NIPPLE ASSY...NIPPLE ASSY
-
1113601-29G00 ...SCREW...SCREW
-
1213602-29G00 ...PACKING...PACKING
-
1313606-47A00 ...WASHER...WASHER
-
1413681-39F00-060 ...HOSE (3.2X7.4X60)...HOSE (3.2X7.4X60)
-
1513683-10F60 ...HOSE (L:425) (L:425->50)...HOSE (L:425) (L:425->50)
-
1613683-10F60 ...HOSE (L:425) (L:425->25)...HOSE (L:425) (L:425->25)
-
1715710-04K00 ...INJECTOR ASSY...INJECTOR ASSY
-
1815717-58B00 ......O RING......O RING
-
1915722-14J00 ...SEAL...SEAL
-
2009355-30705-600 ...HOSE (3X7X600) (L:600->135)...HOSE (3X7X600) (L:600->135)
-
2113500-17K00 BODY ASSY, ACCELERATORBODY ASSY, ACCELERATOR
-
2213571-17K00 BRACKET, ACCEL SENSOR NO.1BRACKET, ACCEL SENSOR NO.1
-
2313572-17K00 BRACKET , ACCEL SENSOR NO.2BRACKET , ACCEL SENSOR NO.2
-
2409116-06197 BOLT (6X12)BOLT (6X12)
-
2509139-06208 BOLTBOLT
-
2609160-06088 WASHER (6.5X20X1.6)WASHER (6.5X20X1.6)
-
2709180-06319 SPACER (6.5X10X11.6)SPACER (6.5X10X11.6)
-
2809320-10055 CUSHIONCUSHION
-
2907120-0612B BOLTBOLT
-
3015900-17K00 BODY ASSY, 2ND INJECTORBODY ASSY, 2ND INJECTOR
-
3113374-32G00 ...O RING...O RING
-
3213471-17K00 ...DELIVERY PIPE...DELIVERY PIPE
-
3313472-17K00 ...DELIVERY PIPE...DELIVERY PIPE
-
3413473-17K00 ...NIPPLE ASSY...NIPPLE ASSY
-
3513474-17K00 ...CLIP...CLIP
-
3613601-29G00 ...SCREW...SCREW
-
3713602-29G00 ...PACKING...PACKING
-
3815710-17K10 ...INJECTOR ASSY...INJECTOR ASSY
-
3915717-58B00 ......O RING......O RING
-
4015722-17K00 ...INSULATOR...INSULATOR
-
4115910-17K00 ...BRACKET, 2ND INJECTOR...BRACKET, 2ND INJECTOR
-
4209111-06250 BOLTBOLT
