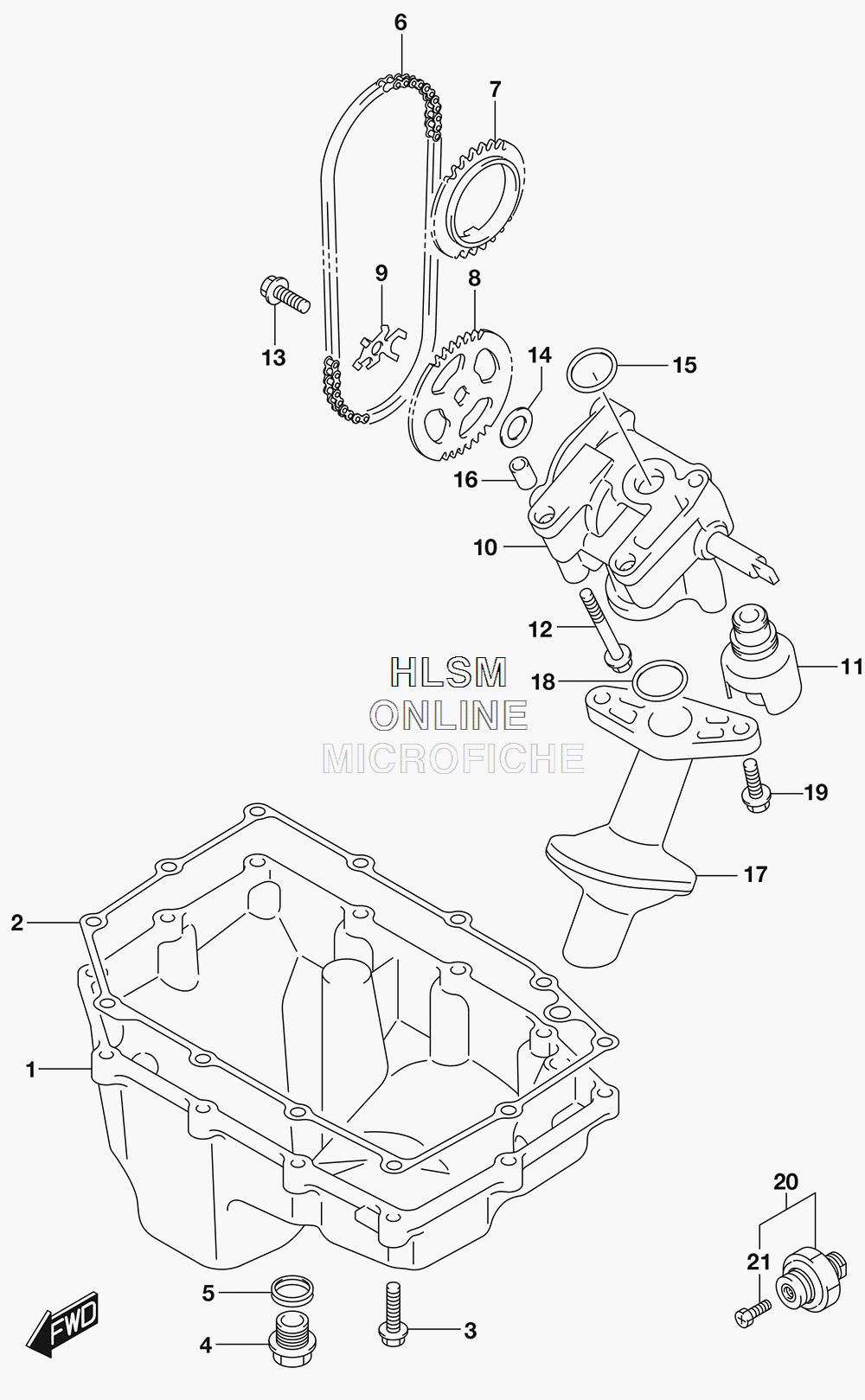

OIL PAN W/ OIL PUMP ASSY. для Suzuki GSX-R1000 - 2017 года выпуска
-
№АртикулНазвание
-
111511-17K00 PAN, OILPAN, OIL
-
211489-17K00 GASKET, OIL PANGASKET, OIL PAN
-
301547-0625A BOLTBOLT
-
409247-14036 PLUG (14X20) (OIL DRAIN)PLUG (14X20) (OIL DRAIN)
-
509168-14002 GASKET (13.8X18.8X4.8)GASKET (13.8X18.8X4.8)
-
616310-47H00 CHAIN, OIL PUMP DRIVECHAIN, OIL PUMP DRIVE
-
716321-01H00 SPROCKET, DRIVE (NT:27)SPROCKET, DRIVE (NT:27)
-
816331-17K00 SPROCKET, DRIVEN (NT:30)SPROCKET, DRIVEN (NT:30)
-
916332-17K00 RETAINER, OIL PUMP SPRKT BOLTRETAINER, OIL PUMP SPRKT BOLT
-
1016400-17K00 PUMP ASSY, OILPUMP ASSY, OIL
-
1116440-17K00 VALVE ASSY, OIL RELIEFVALVE ASSY, OIL RELIEF
-
1209103-06206 BOLT (6X50)BOLT (6X50)
-
1309103-06523 BOLTBOLT
-
1409181-12158 SHIM (12X20X0.5)SHIM (12X20X0.5)
-
1509280-15007 O RING (D:2.4,ID:15.8)O RING (D:2.4,ID:15.8)
-
1604211-09149 PINPIN
-
1716520-17K00 STRAINER, ENGINE OILSTRAINER, ENGINE OIL
-
1809280-19008 O RING (D:2.62,ID:20.3)O RING (D:2.62,ID:20.3)
-
1901550-0620A BOLTBOLT
-
2037820-33D10 SWITCH ASSY, OIL PRESSURESWITCH ASSY, OIL PRESSURE
-
2137822-33D00 ...BOLT...BOLT
