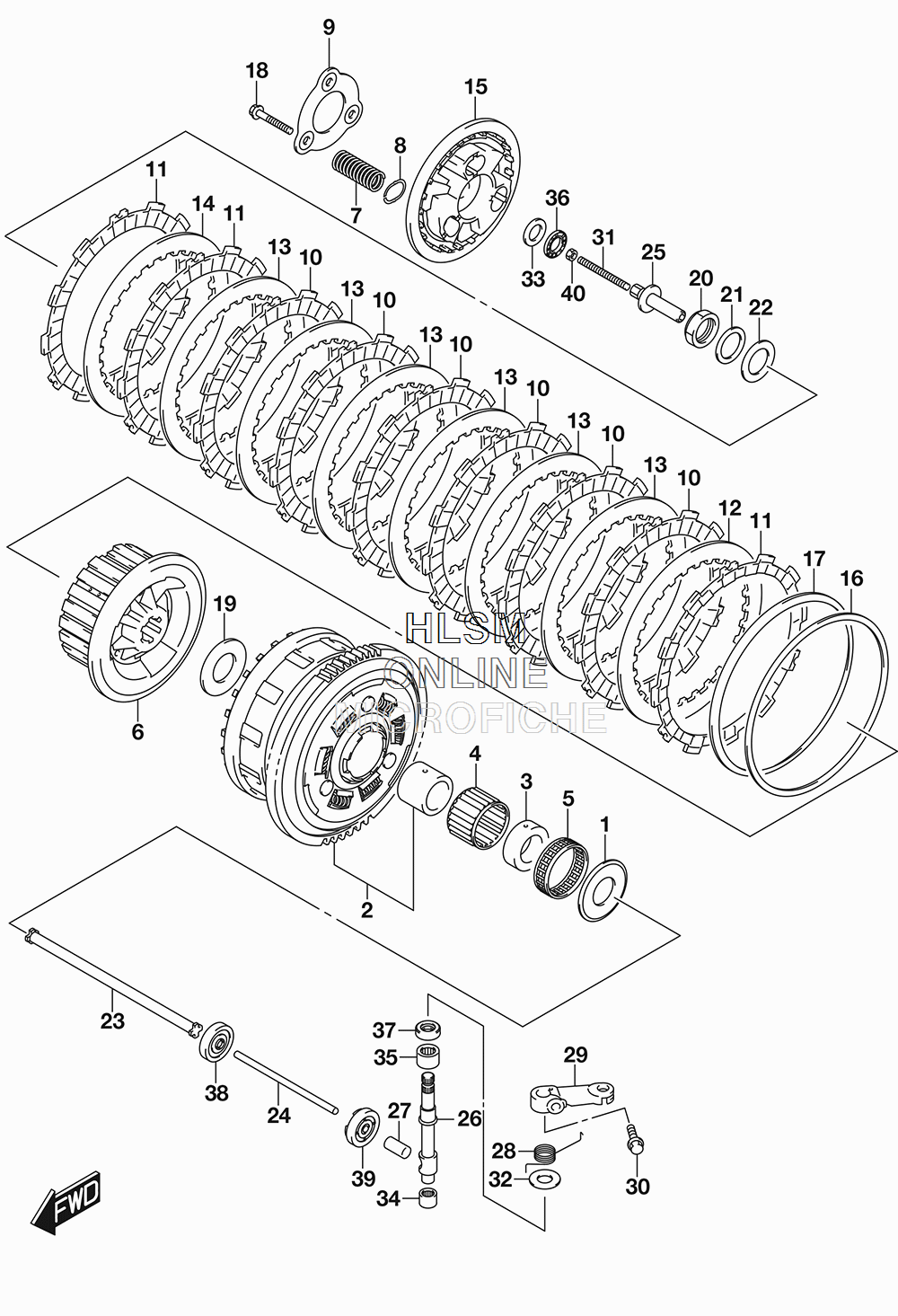

CLUTCH для Suzuki GSX-R1000 - 2017 года выпуска
-
№АртикулНазвание
-
121222-17K00 WASHER, PRI DRIVEN GEAR THRWASHER, PRI DRIVEN GEAR THR
-
221200-17880 GEAR ASSY, PRIMARY DRIVENGEAR ASSY, PRIMARY DRIVEN
-
321253-01H10 SPACER, OIL PUMP DRIVE SPROCKETSPACER, OIL PUMP DRIVE SPROCKET
-
409263-35015 BEARING (35X40X26.8)BEARING (35X40X26.8)
-
509263-35045 BEARING (35X40X12)BEARING (35X40X12)
-
621411-17K00 HUB, CLUTCH SLEEVEHUB, CLUTCH SLEEVE
-
721413-17K00 SPRING, CLUTCHSPRING, CLUTCH
-
821415-17K00 SEAT, CLUTCH SPRINGSEAT, CLUTCH SPRING
-
921414-17K00 PLATE, STOPPERPLATE, STOPPER
-
1021441-42F20 PLATE, CLUTCH DRIVE NO.1 (T:3.3)PLATE, CLUTCH DRIVE NO.1 (T:3.3)
-
1121442-42F10 PLATE, CLUTCH DRIVE NO.2 (T:3.3)PLATE, CLUTCH DRIVE NO.2 (T:3.3)
-
1221451-47H10 PLATE, CLUTCH DRIVEN NO.2 (T:2.3)PLATE, CLUTCH DRIVEN NO.2 (T:2.3)
-
1321451-47H30 PLATE, CLUTCH DRIVEN NO.1 (T:2.3)PLATE, CLUTCH DRIVEN NO.1 (T:2.3)
-
1421451-47H50 PLATE, CLUTCH DRIVEN NO.4 (T:2.6)PLATE, CLUTCH DRIVEN NO.4 (T:2.6)
-
1521462-17K00 DISC, CLUTCH PRESSUREDISC, CLUTCH PRESSURE
-
1621471-02F20 SEAT, WAVE WASHERSEAT, WAVE WASHER
-
1721472-02F20 WASHER, CLUTCH PLATE WAVEWASHER, CLUTCH PLATE WAVE
-
1821482-17K00 BOLT, CLUTCH SPRINGBOLT, CLUTCH SPRING
-
1909160-25056 WASHER (25X50X2.5)WASHER (25X50X2.5)
-
2009159-24010 NUTNUT
-
2109164-24008 WASHERWASHER
-
2209181-25223 SHIM (25X38X1)SHIM (25X38X1)
-
2323110-27A00 ROD, CLUTCHROD, CLUTCH
-
2423111-26D00 ROD, CLUTCH PUSH, (LH)ROD, CLUTCH PUSH, (LH)
-
2523121-41G30 PIECE, CLUTCH PUSHPIECE, CLUTCH PUSH
-
2623122-41G00 CAMSHAFT, CLUTCH RELEASECAMSHAFT, CLUTCH RELEASE
-
2723123-41G00 CAP, CLUTCH PUSH RODCAP, CLUTCH PUSH ROD
-
2823125-41G00 SPRING, CLUTCH RELEASE RETURNSPRING, CLUTCH RELEASE RETURN
-
2923271-41G50 ARM, CLUTCH RELEASEARM, CLUTCH RELEASE
-
3009103-06223 BOLT (6X20)BOLT (6X20)
-
3109134-06015 SCREW (6X73)SCREW (6X73)
-
3209160-10020 WASHER (10.5X24X1)WASHER (10.5X24X1)
-
3309160-15045 WASHER (15.5X28X1)WASHER (15.5X28X1)
-
3409263-10014 BEARING (10X14X10)BEARING (10X14X10)
-
3509263-12027 BEARING (12X18X12)BEARING (12X18X12)
-
3609263-15003 BEARING (15X28X2)BEARING (15X28X2)
-
3709282-10012 OIL SEAL (10X20X6)OIL SEAL (10X20X6)
-
3809283-06013 OIL SEALOIL SEAL
-
3909285-10004 OIL SEAL (10X17X5)OIL SEAL (10X17X5)
-
4008310-0006A NUTNUT
