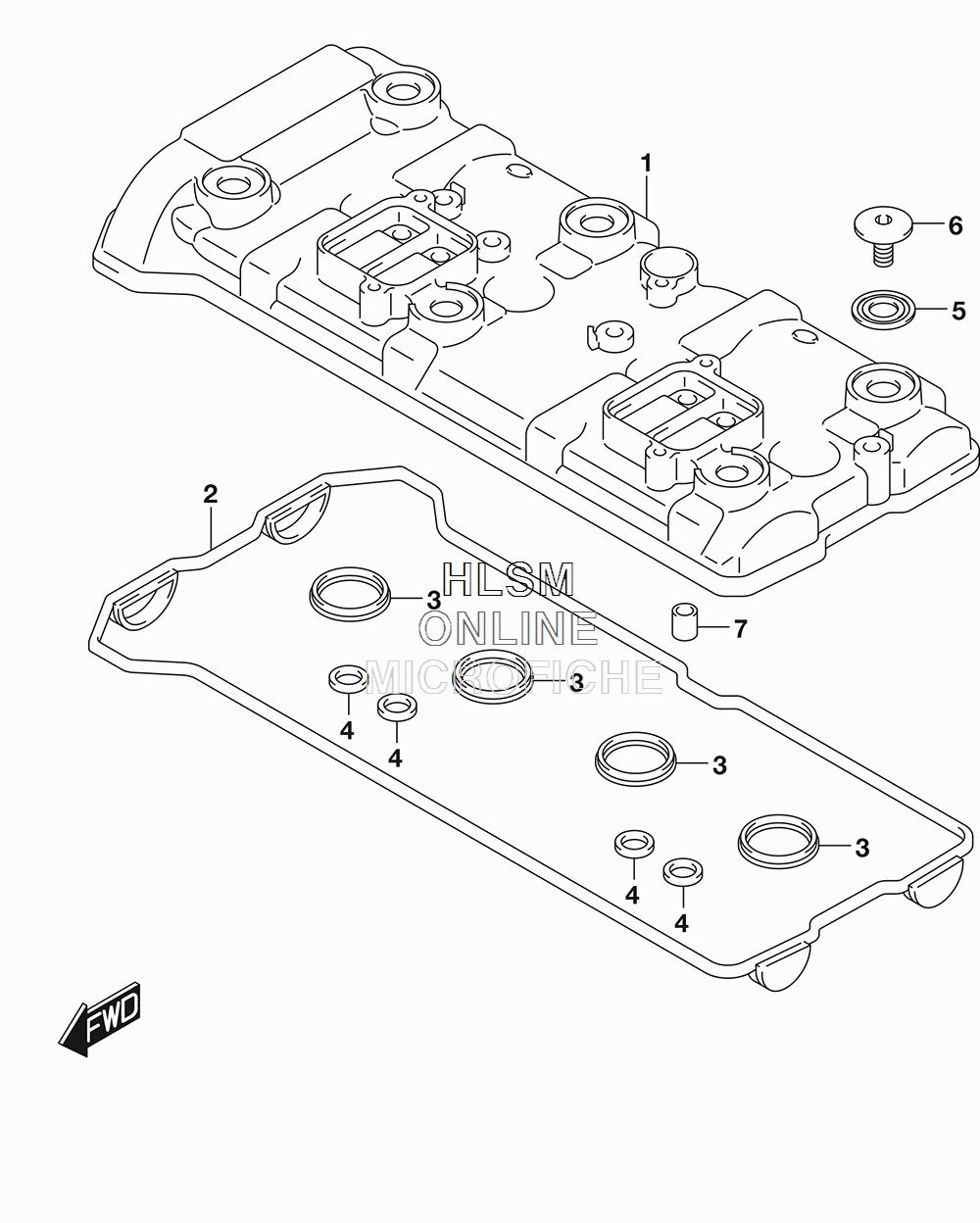

CYLINDER HEAD COVER для Suzuki GSX-R1000 - 2017 года выпуска
-
№АртикулНазвание
-
111171-17K00 COVER, CYLINDER HEADCOVER, CYLINDER HEAD
-
211173-17K00 GASKET, HEAD COVERGASKET, HEAD COVER
-
311178-33E00 GASKET, HEAD COVER NO.2GASKET, HEAD COVER NO.2
-
411182-35F10 GASKET, 2ND AIR PASSAGEGASKET, 2ND AIR PASSAGE
-
511191-27E00 WASHERWASHER
-
609106-07021 BOLT (7X17.5)BOLT (7X17.5)
-
709206-10016 PIN (8.2X10X13)PIN (8.2X10X13)
