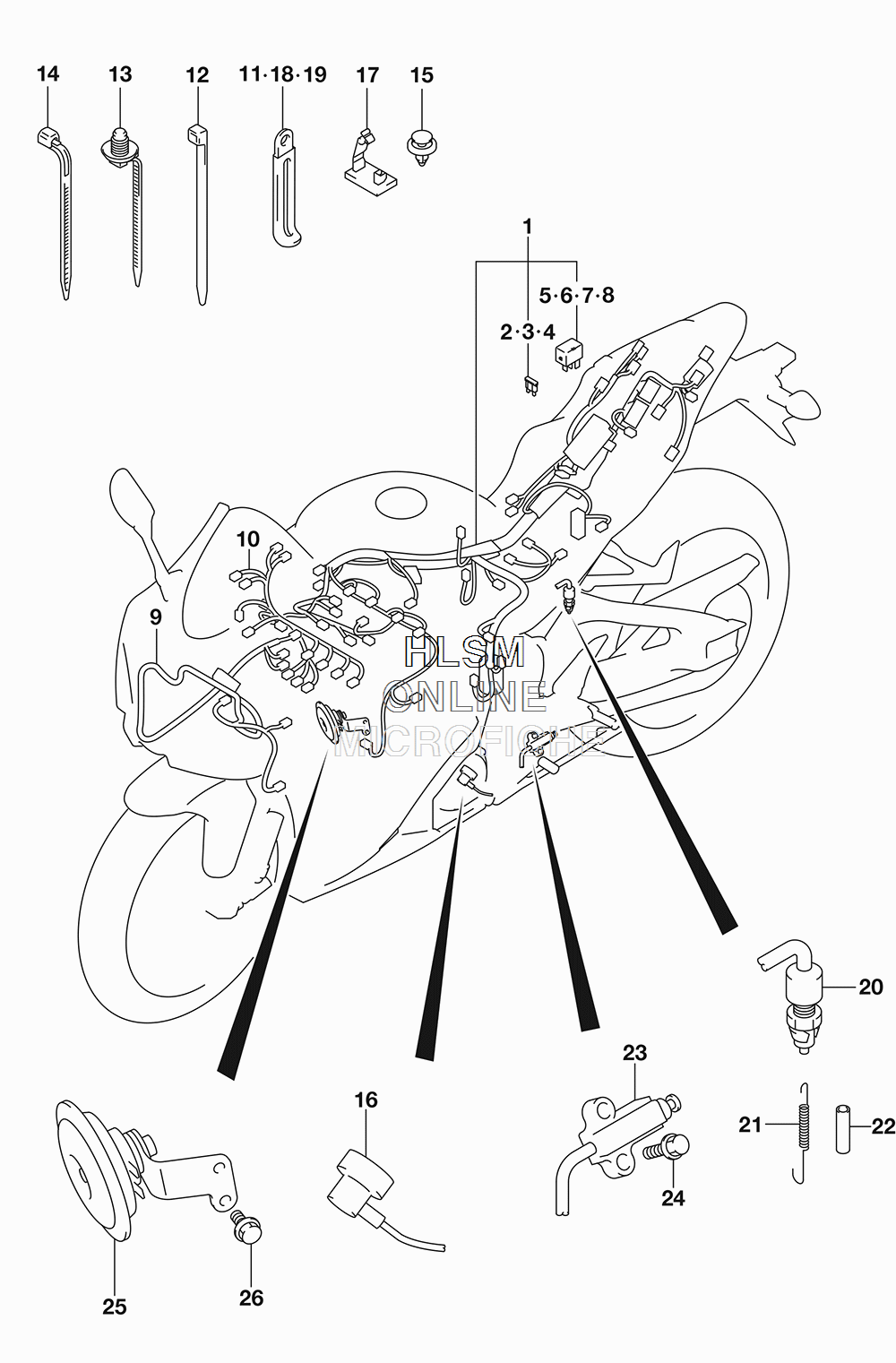

WIRING HARNESS (EXCEPT CALIF.) для Suzuki GSX-R1000 - 2017 года выпуска
-
№АртикулНазвание
-
136610-17K40 HARNESS, WIRING NO.1HARNESS, WIRING NO.1
-
209481-07504 ...FUSE (7.5A)...FUSE (7.5A)
-
309481-10504 ...FUSE (10A)...FUSE (10A)
-
409481-15504 ...FUSE (15A)...FUSE (15A)
-
538860-76F01 ...RELAY (FUEL PUMP)...RELAY (FUEL PUMP)
-
638860-76F01 ...RELAY (FAN MOTOR)...RELAY (FAN MOTOR)
-
738860-76F01 ...RELAY (SIDE STAND)...RELAY (SIDE STAND)
-
838860-76F01 ...RELAY (HEADLAMP)...RELAY (HEADLAMP)
-
936620-17K10 HARNESS, WIRING NO.2HARNESS, WIRING NO.2
-
1036630-17K00 HARNESS, WIRING NO.3HARNESS, WIRING NO.3
-
1109404-06429 CLAMP (L:45)CLAMP (L:45)
-
1209407-14407 CLAMP (L:145)CLAMP (L:145)
-
1309407-17403 CLAMP (L:154)CLAMP (L:154)
-
1409407-14403 CLAMP (L:125)CLAMP (L:125)
-
1509409-06328 CLIPCLIP
-
1636851-17K00 WIRE, OIL PRESSURE SWITCHWIRE, OIL PRESSURE SWITCH
-
1709403-04310 CLAMPCLAMP
-
1809404-06429 CLAMP (L:45)CLAMP (L:45)
-
1909404-06433 CLAMP (L:80)CLAMP (L:80)
-
2037740-17K00 SWITCH ASSY, STOP LAMPSWITCH ASSY, STOP LAMP
-
2109443-06087 SPRINGSPRING
-
2209352-50823-600 HOSE (5X8.2X600) (L:600->60)HOSE (5X8.2X600) (L:600->60)
-
2337840-35F00 SWITCH ASSY, SIDE STANDSWITCH ASSY, SIDE STAND
-
2401550-0620A BOLTBOLT
-
2538500-17K00 HORN ASSYHORN ASSY
-
2601550-0612A BOLTBOLT
