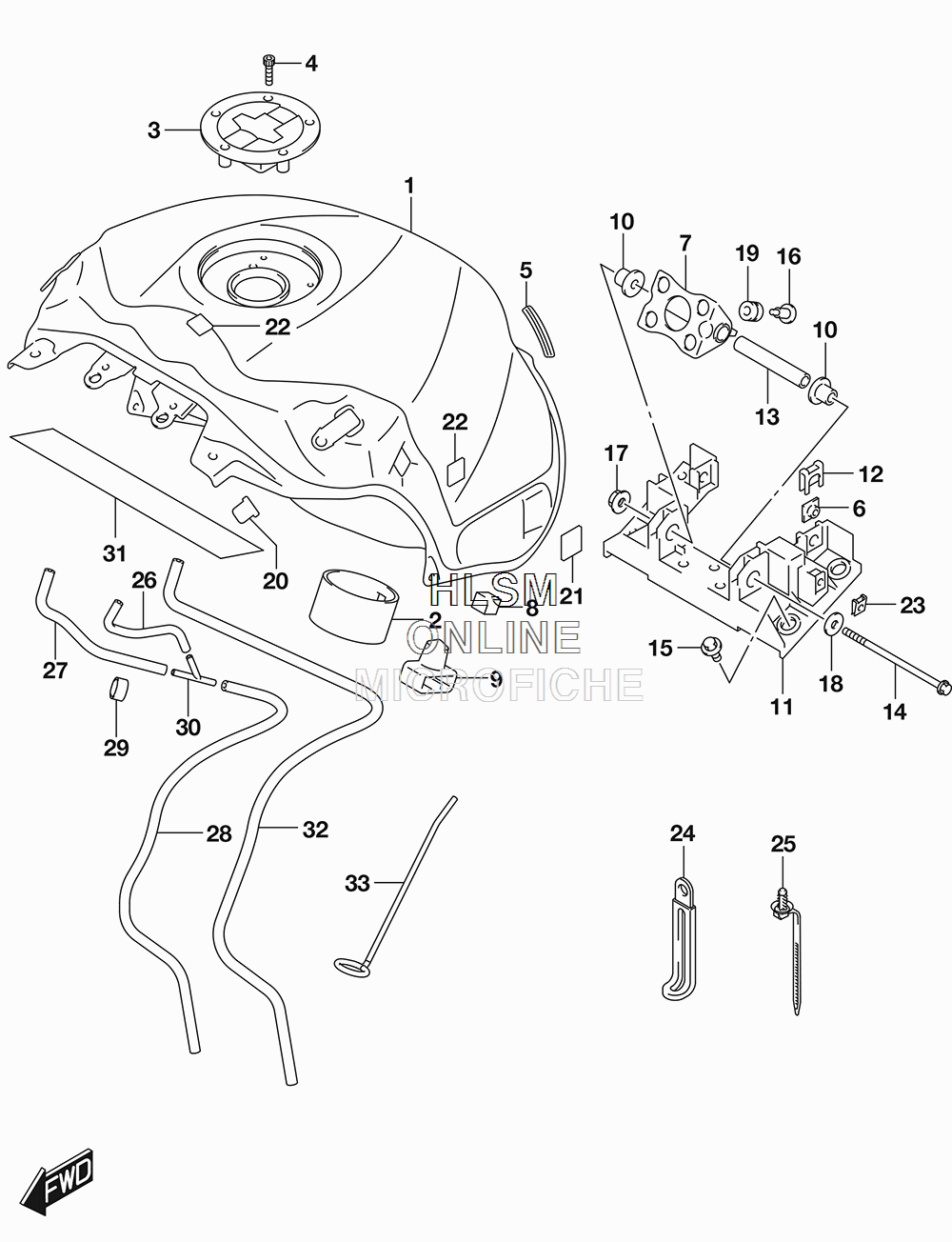

FUEL TANK (BLACK/RED) (EXCEPT CALIF.) для Suzuki GSX-R1000 - 2017 года выпуска
-
№АртикулНазвание
-
1-144100-17K00-YKV TANK ASSY, FUEL (FOR YKV - BLACK)TANK ASSY, FUEL (FOR YKV - BLACK)
-
1-244100-17K00-YVZ TANK ASSY, FUEL (FOR YVZ - RED)TANK ASSY, FUEL (FOR YVZ - RED)
-
244121-17K00 VESSEL, FUEL TANK INNERVESSEL, FUEL TANK INNER
-
344200-17820 CAP SET, FUEL TANKCAP SET, FUEL TANK
-
444244-11J00 BOLT, FUEL TANK FILLER CAPBOLT, FUEL TANK FILLER CAP
-
544552-24B10 MOLDING, FUEL TANK REARMOLDING, FUEL TANK REAR
-
644523-47H00 NUTNUT
-
744530-17K00 BRACKET, FUEL TANK NO.1BRACKET, FUEL TANK NO.1
-
844541-17K00 CUSHION, SIDECUSHION, SIDE
-
944542-17K00 CUSHION, REARCUSHION, REAR
-
1044544-17K00 SPACER, FUEL TANK REAR BRACKESPACER, FUEL TANK REAR BRACKE
-
1144551-17K00 BRACKET, FUEL TANK REARBRACKET, FUEL TANK REAR
-
1244552-17K00 CLIP, NUTCLIP, NUT
-
1344561-18G00 SPACER, JOINTSPACER, JOINT
-
1409103-06033 BOLT (6X125)BOLT (6X125)
-
1509111-06081 BOLT (6X18)BOLT (6X18)
-
1609139-06191 SCREW (6X22)SCREW (6X22)
-
1709159-06086 NUTNUT
-
1809160-06012 WASHER (6.5X22X1.6)WASHER (6.5X22X1.6)
-
1909320-08071 CUSHIONCUSHION
-
2044543-17K00 CUSHION, FUEL TANK COVERCUSHION, FUEL TANK COVER
-
2144572-13G00 FASTENER, COVER SIDEFASTENER, COVER SIDE
-
2244572-44G00 FASTENER, COVER FRONTFASTENER, COVER FRONT
-
2309148-05052 NUTNUT
-
2409404-06433 CLAMP (L:80)CLAMP (L:80)
-
2509407-17403 CLAMP (L:154)CLAMP (L:154)
-
2644424-15H10 HOSE, TANK BREATHER NO.2HOSE, TANK BREATHER NO.2
-
2744424-17K00 HOSE, FUEL TANK BRTHR NO.1HOSE, FUEL TANK BRTHR NO.1
-
2844424-17K10 HOSE, FUEL TANK BRTHR NO.2HOSE, FUEL TANK BRTHR NO.2
-
2909352-13162-010 HOSE (13.5X16.5X10)HOSE (13.5X16.5X10)
-
3009367-06007 3 WAY3 WAY
-
3144283-17K00 PROTECTOR, FUEL TANKPROTECTOR, FUEL TANK
-
3244423-17K00 HOSE, DRAINHOSE, DRAIN
-
3344574-17K00 STAY, FUEL TANK (OPT)STAY, FUEL TANK (OPT)
