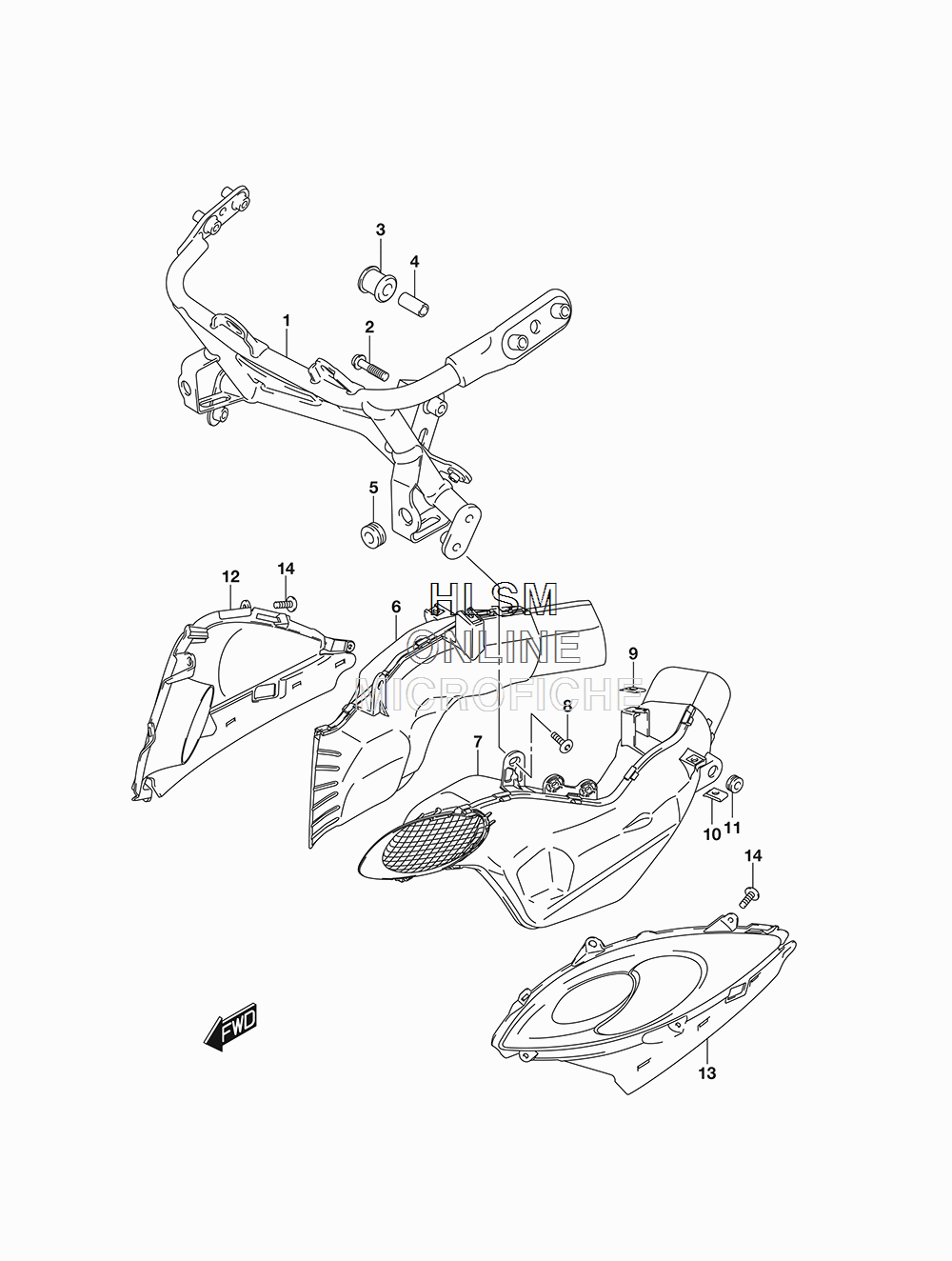

AIR INTAKE для Suzuki GSX1300RA HAYABUSA - 2018 года выпуска
-
№АртикулНазвание
-
194510-15H01 BRACE, COWLINGBRACE, COWLING
-
209103-08367 BOLT (8X40)BOLT (8X40)
-
394541-41C00 CUSHION, UPPERCUSHION, UPPER
-
409180-08215 SPACER (8.6X12.2X26.5)SPACER (8.6X12.2X26.5)
-
509320-08028 CUSHIONCUSHION
-
694420-15H01 PIPE, INTAKE (RH)PIPE, INTAKE (RH)
-
794430-15H01 PIPE, INTAKE (LH)PIPE, INTAKE (LH)
-
894423-15H00 SCREWSCREW
-
994484-24F00 NUT, METER PANELNUT, METER PANEL
-
1009148-05038 NUTNUT
-
1109320-08028 CUSHIONCUSHION
-
12-194671-15H00-YVB COVER, INTAKE (RH) (YVB - BLACK FOR YVB - BLACK)COVER, INTAKE (RH) (YVB - BLACK FOR YVB - BLACK)
-
12-294671-15H00-YWW COVER, INTAKE (RH) (YWW - WHITE FOR AGS - RED/WHITE)COVER, INTAKE (RH) (YWW - WHITE FOR AGS - RED/WHITE)
-
13-194681-15H00-YVB COVER, INTAKE (LH) (YVB - BLACK FOR YVB - BLACK)COVER, INTAKE (LH) (YVB - BLACK FOR YVB - BLACK)
-
13-294681-15H00-YWW COVER, INTAKE (LH) (YWW - WHITE FOR AGS - RED/WHITE)COVER, INTAKE (LH) (YWW - WHITE FOR AGS - RED/WHITE)
-
1403541-0516A SCREWSCREW
