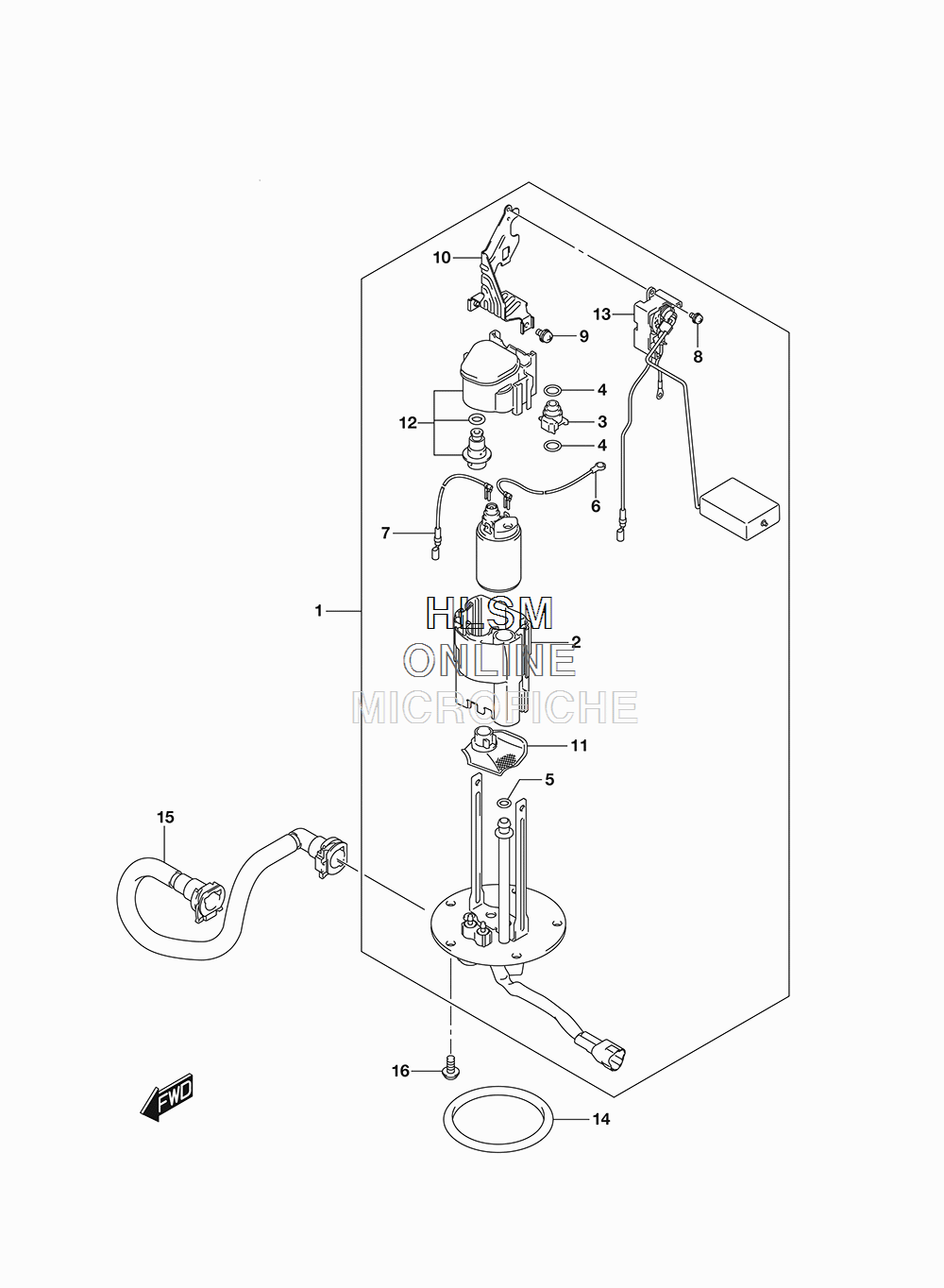

FUEL PUMP для Suzuki GSX1300RA HAYABUSA - 2018 года выпуска
-
№АртикулНазвание
-
115100-15H11 PUMP ASSY, FUELPUMP ASSY, FUEL
-
215111-27G00 ...CUP, RESERVOIR...CUP, RESERVOIR
-
315112-05H00 ...JOINT...JOINT
-
415113-05H00 ...O RING...O RING
-
515113-35F00 ...O RING...O RING
-
615114-14J00 ...WIRE, EARTH...WIRE, EARTH
-
715115-08J00 ...WIRE, LEAD...WIRE, LEAD
-
815116-10F00 ...SCREW...SCREW
-
915116-10F00 ...SCREW...SCREW
-
1015181-15H10 ...BRACKET, GAUGE...BRACKET, GAUGE
-
1115420-05H00 ...STRAINER...STRAINER
-
1215610-14J00 ...REGULATOR...REGULATOR
-
1334810-15H10 ...GAUGE ASSY, FUEL LEVEL...GAUGE ASSY, FUEL LEVEL
-
1415201-35F00 O RINGO RING
-
1515810-15H10 HOSE, FUELHOSE, FUEL
-
1607120-0612A BOLTBOLT
