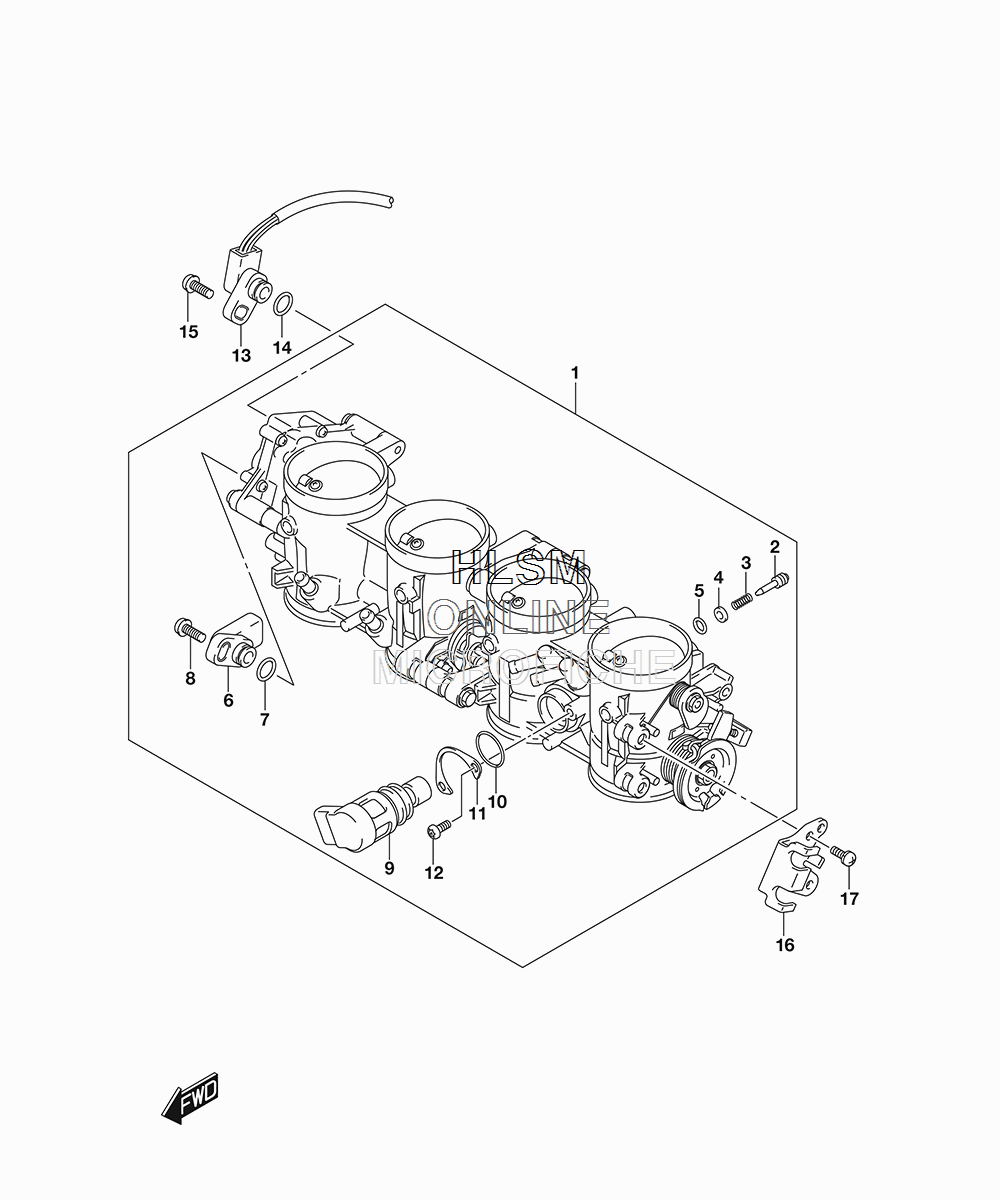

THROTTLE BODY (CALIF.) для Suzuki GSX1300RA HAYABUSA - 2018 года выпуска
-
№АртикулНазвание
-
113406-15H30 THROTTLE BODYTHROTTLE BODY
-
213269-18G00 ...SCREW, AIR ADJUST...SCREW, AIR ADJUST
-
313271-43E00 ...SPRING, AIR SCREW...SPRING, AIR SCREW
-
413291-26E00 ...WASHER...WASHER
-
513295-26E00 ...O RING...O RING
-
613580-18G00 ...SENSOR ASSY, THROTTLE MAIN...SENSOR ASSY, THROTTLE MAIN
-
713575-40F00 ...O RING...O RING
-
813605-40F00 ...SCREW...SCREW
-
918117-15H12 ...VALVE ASSY, ISC...VALVE ASSY, ISC
-
1018119-05H00 ...O RING...O RING
-
1113428-15H00 ...PLATE, ISC VALVE...PLATE, ISC VALVE
-
1213605-15H00 ...SCREW...SCREW
-
1313580-40F31 SENSOR ASSY, THROTTLE SUBSENSOR ASSY, THROTTLE SUB
-
1413575-40F00 O RINGO RING
-
1513605-40F00 SCREWSCREW
-
1613565-15H00 PLATE, STAYPLATE, STAY
-
1713601-21H00 SCREWSCREW
