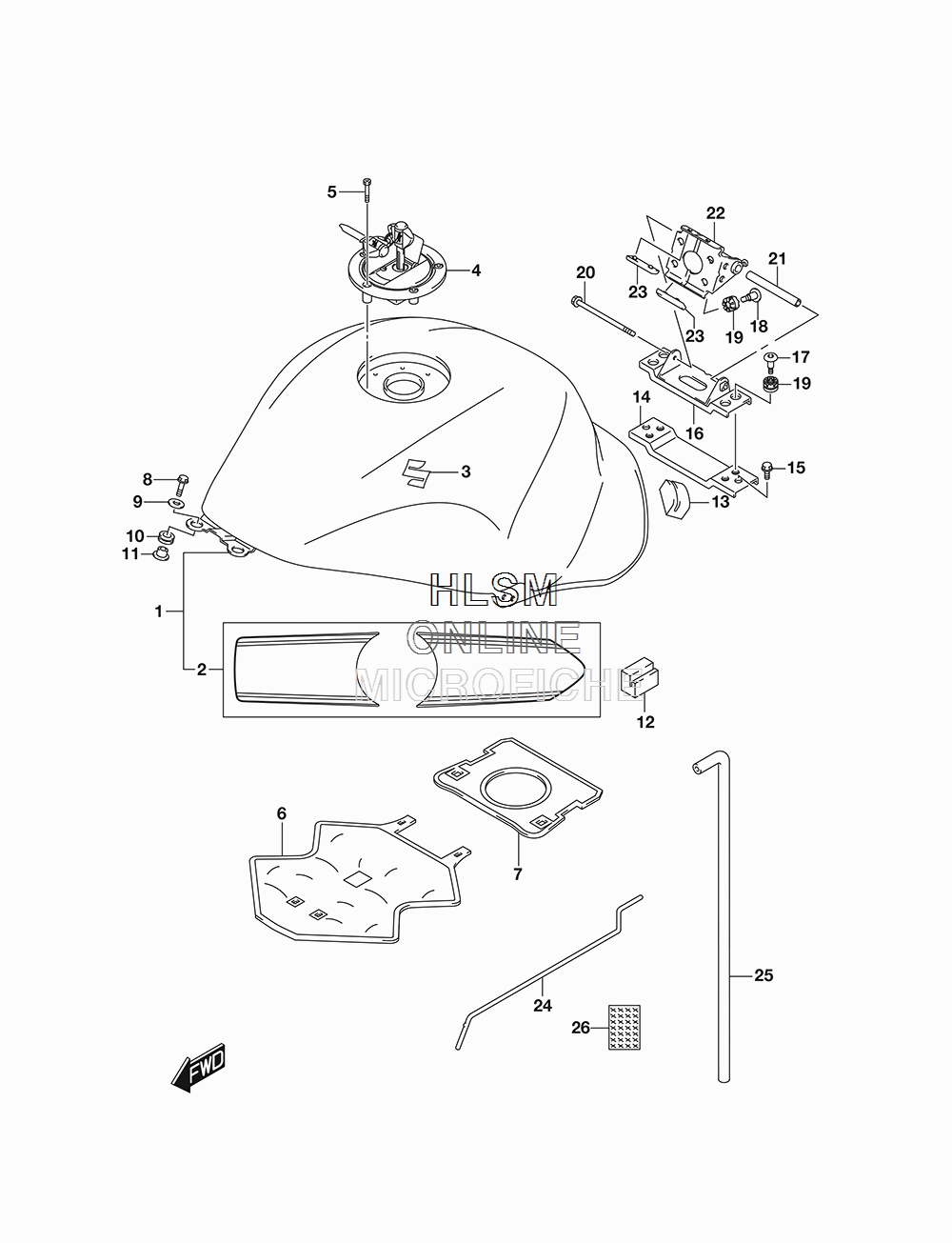

FUEL TANK (CALIF.) для Suzuki GSX1300RA HAYABUSA - 2018 года выпуска
-
№АртикулНазвание
-
1-144100-15HL0-ATX TANK ASSY, FUEL (ATX - BLACK FOR YVB - BLACK)TANK ASSY, FUEL (ATX - BLACK FOR YVB - BLACK)
-
1-244100-15HL0-AJX TANK ASSY, FUEL (AJX - WHITE FOR AGS - RED/WHITE)TANK ASSY, FUEL (AJX - WHITE FOR AGS - RED/WHITE)
-
2-168110-15H50-JBA ...TAPE SET (JBA - BLACK/ORANGE FOR TANK ATX FOR BIKE YVB - BLACK)...TAPE SET (JBA - BLACK/ORANGE FOR TANK ATX FOR BIKE YVB - BLACK)
-
2-268110-15H50-AGS ...TAPE SET (AGS - RED/WHITE FOR TANK AJX FOR BIKE AGS - RED/WHITE)...TAPE SET (AGS - RED/WHITE FOR TANK AJX FOR BIKE AGS - RED/WHITE)
-
368111-47HA0 EMBLEM, "S"EMBLEM, "S"
-
444200-16870 CAP SET, FUEL TANKCAP SET, FUEL TANK
-
509106-05017 BOLT (5X20)BOLT (5X20)
-
644191-15H00 SHIELD, FUEL TANK HEAT NO.1SHIELD, FUEL TANK HEAT NO.1
-
744191-15H10 SHIELD, FUEL TANK HEAT NO.2SHIELD, FUEL TANK HEAT NO.2
-
809139-06204 SCREW (6X30)SCREW (6X30)
-
909160-06012 WASHER (6.5X22X1.6)WASHER (6.5X22X1.6)
-
1044511-16G00 CUSHIONCUSHION
-
1144512-16G00 SPACERSPACER
-
1244541-24F00 CUSHION, SIDECUSHION, SIDE
-
1344543-15H00 CUSHION, REARCUSHION, REAR
-
1444555-15H00 BRACKET, FUEL TANK REAR NO.3BRACKET, FUEL TANK REAR NO.3
-
1501550-0816A BOLTBOLT
-
1644550-15H01 BRACKET, FUEL TANK REAR NO.2BRACKET, FUEL TANK REAR NO.2
-
1709139-06191 SCREW (6X22)SCREW (6X22)
-
1809139-06191 SCREW (6X22)SCREW (6X22)
-
1909320-08071 CUSHIONCUSHION
-
2007120-0695A BOLTBOLT
-
2144561-18G00 SPACER, FUEL TANK REARSPACER, FUEL TANK REAR
-
2244530-15H01 BRACKET, FUEL TANK REAR NO.1BRACKET, FUEL TANK REAR NO.1
-
2345149-44G00 CUSHION, BRACKETCUSHION, BRACKET
-
2444574-35F00 STAY (OPT)STAY (OPT)
-
2544423-15H00 HOSE, DRAINHOSE, DRAIN
-
2644427-15H10 SHIELD, DRAIN HOSE HEATSHIELD, DRAIN HOSE HEAT
