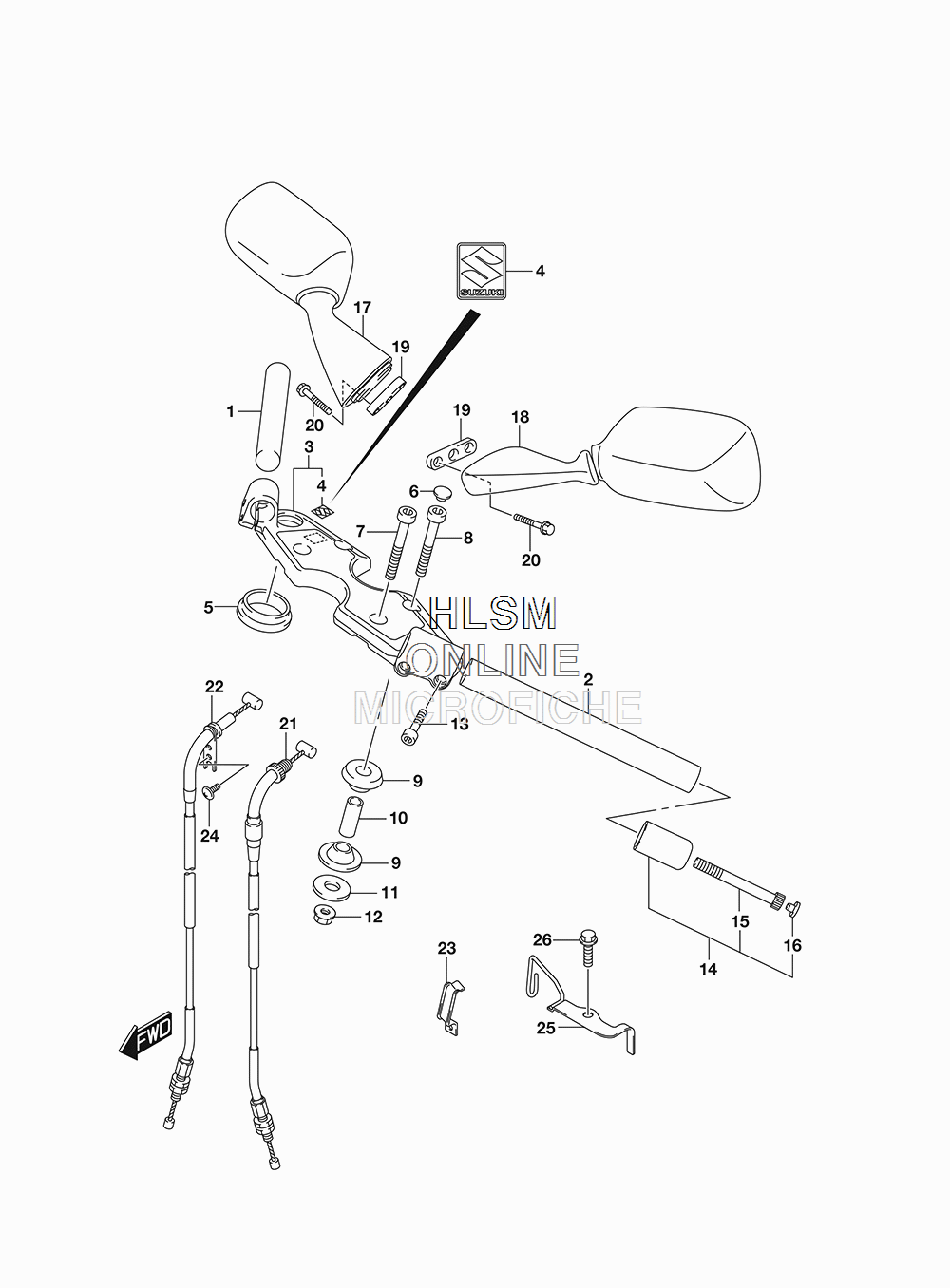

HANDLEBAR для Suzuki GSX1300RA HAYABUSA - 2018 года выпуска
-
№АртикулНазвание
-
156111-15H00 HANDLEBAR (RH)HANDLEBAR (RH)
-
256151-15H00 HANDLEBAR (LH)HANDLEBAR (LH)
-
356210-15H10 HOLDER, HANDLEHOLDER, HANDLE
-
468281-47HA0 ...EMBLEM, "S"...EMBLEM, "S"
-
556247-24F00 CUSHION, HANDLE HOLDERCUSHION, HANDLE HOLDER
-
656246-24F00 CAP, BOLTCAP, BOLT
-
707130-1065B BOLTBOLT
-
807130-1060A BOLTBOLT
-
956240-01D00 CUSHIONCUSHION
-
1056243-01D00 SPACERSPACER
-
1109160-10094 WASHER (10.5X30X3.2)WASHER (10.5X30X3.2)
-
1208319-3110A NUTNUT
-
1309106-06090 BOLT (6X25)BOLT (6X25)
-
1456200-15830 BALANCER SET, HANDLEBARBALANCER SET, HANDLEBAR
-
1507130-0660B ...BOLT...BOLT
-
1609250-05009 ...CAP (OD:10)...CAP (OD:10)
-
1756500-24F20 MIRROR ASSY, REAR VIEW (RH)MIRROR ASSY, REAR VIEW (RH)
-
1856600-24F20 MIRROR ASSY, REAR VIEW (LH)MIRROR ASSY, REAR VIEW (LH)
-
1994576-24F00 CUSHIONCUSHION
-
2001547-0630B BOLTBOLT
-
2158300-15H20 CABLE ASSY, THROTTLE NO.1CABLE ASSY, THROTTLE NO.1
-
2258300-15H30 CABLE ASSY, THROTTLE NO.2CABLE ASSY, THROTTLE NO.2
-
2358623-24F10 GUIDE, CABLEGUIDE, CABLE
-
2409125-05042 SCREW (5X10)SCREW (5X10)
-
2558620-15H00 GUIDE, CABLEGUIDE, CABLE
-
2601547-0612A BOLTBOLT
