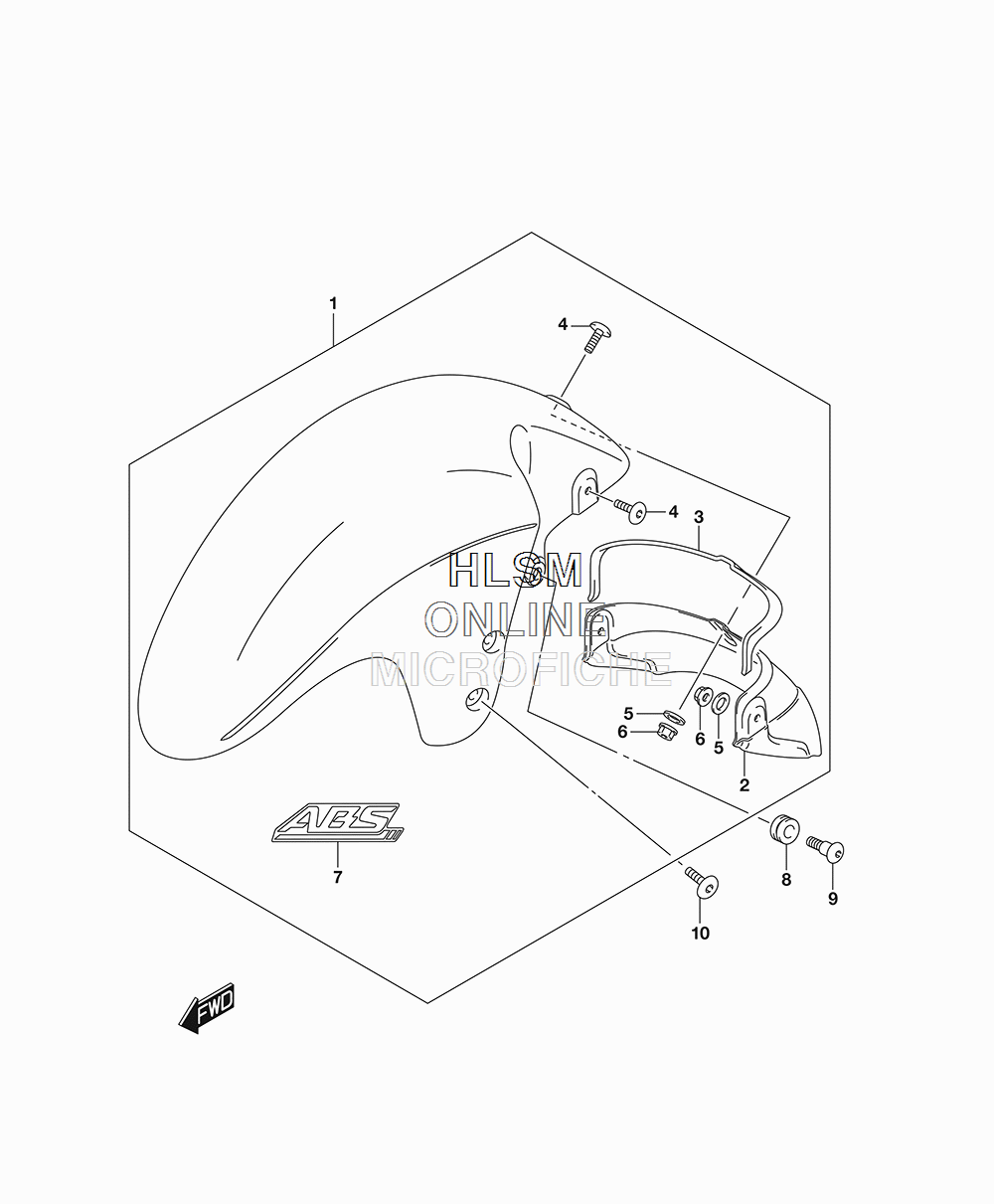

FENDER - FRONT для Suzuki GSX1300RA HAYABUSA - 2018 года выпуска
-
№АртикулНазвание
-
1-153100-15H10-YVB FENDER, FRONT (YVB - BLACK FOR YVB - BLACK)FENDER, FRONT (YVB - BLACK FOR YVB - BLACK)
-
1-253100-15H10-YWW FENDER, FRONT (YWW - WHITE FOR AGS - RED/WHITE)FENDER, FRONT (YWW - WHITE FOR AGS - RED/WHITE)
-
253331-15H00 ...MUDGUARD, FRONT FENDER...MUDGUARD, FRONT FENDER
-
394424-05H00 ...CUSHION...CUSHION
-
409139-06129 ...SCREW (6X16)...SCREW (6X16)
-
509160-06129 ...WASHER (6.5X16X1)...WASHER (6.5X16X1)
-
608319-3106A ...NUT...NUT
-
768151-44G00-1ZY ...EMBLEM, "ABS" (1ZY - GRAY)...EMBLEM, "ABS" (1ZY - GRAY)
-
809320-09016 CUSHIONCUSHION
-
909139-06146 SCREW (6X16)SCREW (6X16)
-
1009139-06131 SCREW (6X16)SCREW (6X16)
