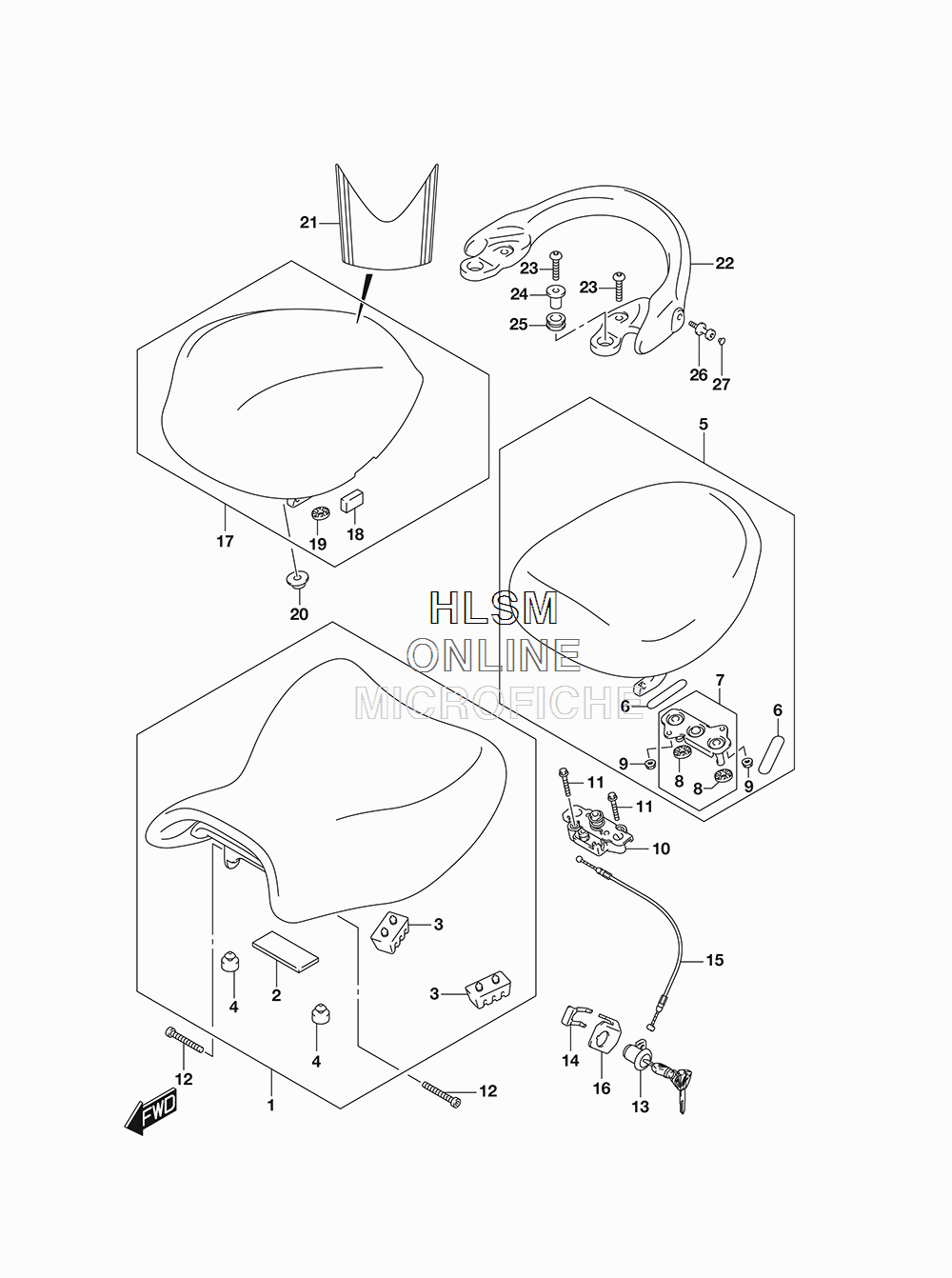

SEAT для Suzuki GSX1300RA HAYABUSA - 2018 года выпуска
-
№АртикулНазвание
-
145100-15H02-EJY SEAT ASSY (EJY - BLACK/BLACK)SEAT ASSY (EJY - BLACK/BLACK)
-
245117-15H01 ...CUSHION...CUSHION
-
345149-45330 ...CUSHION...CUSHION
-
409321-10011 ...CUSHION...CUSHION
-
545300-15H11-U6H SEAT ASSY, PILLION (U6H - BLACK)SEAT ASSY, PILLION (U6H - BLACK)
-
645149-15H10 ...CUSHION...CUSHION
-
745290-15H00 ...STRIKER, SEAT LOCK...STRIKER, SEAT LOCK
-
845213-42F00 ......CUSHION......CUSHION
-
908316-1006A ...NUT...NUT
-
1045220-15H00 BRACKET, SEAT SUPPORTBRACKET, SEAT SUPPORT
-
1101547-0630A BOLTBOLT
-
1245191-15H00 BOLT, SEAT FRONTBOLT, SEAT FRONT
-
1395700-14F00 LOCK ASSY, SEATLOCK ASSY, SEAT
-
1445289-11F00 PLATE, SEAT LOCKPLATE, SEAT LOCK
-
1545280-18G01 CABLE, SEAT LOCKCABLE, SEAT LOCK
-
1645288-14F20 GUIDE, CABLEGUIDE, CABLE
-
17-145550-15H01-YVB BOX, SEAT TAIL (YVB - BLACK FOR YVB - BLACK)BOX, SEAT TAIL (YVB - BLACK FOR YVB - BLACK)
-
17-245550-15H01-YWW BOX, SEAT TAIL (YWW - WHITE FOR AGS - RED/WHITE)BOX, SEAT TAIL (YWW - WHITE FOR AGS - RED/WHITE)
-
1845553-15H00 ...CUSHION...CUSHION
-
1945213-42F00 ...CUSHION...CUSHION
-
2047190-24F01 WASHERWASHER
-
21-168165-15H00-JBA TAPE, BOX SEAT TAIL (JBA - BLACK/ORANGE FOR YVB - BLACK)TAPE, BOX SEAT TAIL (JBA - BLACK/ORANGE FOR YVB - BLACK)
-
21-268165-15H00-AGS TAPE, BOX SEAT TAIL (AGS - RED/WHITE FOR AGS - RED/WHITE)TAPE, BOX SEAT TAIL (AGS - RED/WHITE FOR AGS - RED/WHITE)
-
22-146211-15H01-YVB HANDLE, PILLION RIDER (YVB - BLACK FOR YVB - BLACK)HANDLE, PILLION RIDER (YVB - BLACK FOR YVB - BLACK)
-
22-246211-15H01-YWW HANDLE, PILLION RIDER (YWW - WHITE FOR AGS - RED/WHITE)HANDLE, PILLION RIDER (YWW - WHITE FOR AGS - RED/WHITE)
-
2309106-08137 BOLT (8X33)BOLT (8X33)
-
2447190-24F11 WASHER, PILLION RIDER HANDLEWASHER, PILLION RIDER HANDLE
-
2546217-24F00 CUSHION, PILLION RIDER HANDLECUSHION, PILLION RIDER HANDLE
-
2646212-24F11 HOOK, HANDLEHOOK, HANDLE
-
2709250-05009 CAP (OD:10)CAP (OD:10)
