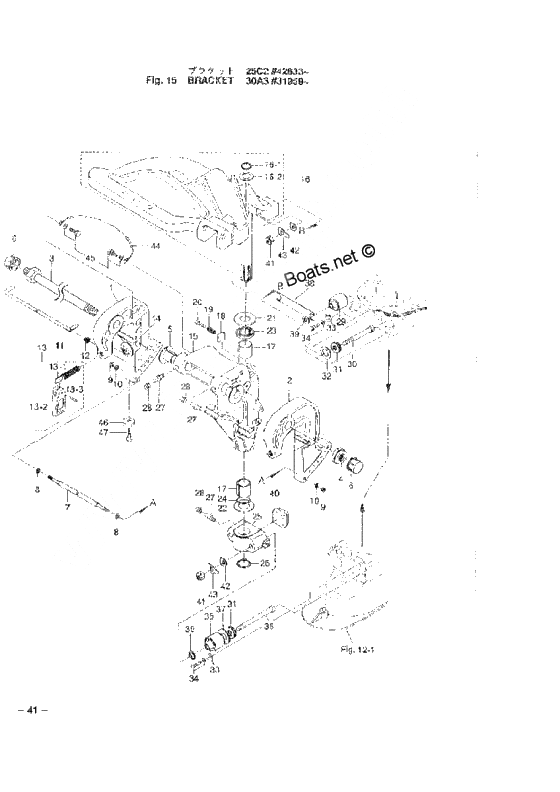

Bracket для Tohatsu M25C2 - 2002 года выпуска
-
№АртикулНазвание
-
1349S62112-0 Stern braket rStern braket r
-
2349S62113-0 Stern braket lStern braket l
-
3346-62191-0 Bracket Bolt Ass'y
25C2 #38993- 30A3 #29854-Bracket Bolt Ass'y
25C2 #38993- 30A3 #29854- -
4346-62124-0 Bracket Nut(Nylon)Bracket Nut(Nylon)
-
5349-62126-0 Bushing, Bracket BoltBushing, Bracket Bolt
-
6346-62127-0 Cap,Bracket BoltCap,Bracket Bolt
-
7346-62117-0 Distance PieceDistance Piece
-
8940103-0600 WasherWasher
-
9930103-0600 NutNut
-
10941303-0600 New partNew part
-
11345-62121-0 Thrust RodThrust Rod
-
12345-62122-1 Spring, thrust rodSpring, thrust rod
-
13398S62100-0 Clamp Screw Ass'yClamp Screw Ass'y
-
13-1398-62103-0 Винт струбциныВинт струбцины
-
13-33C8-62104-0 Rivet 3-22Rivet 3-22
-
14332-62101-0 Pad clamp screwPad clamp screw
-
15349S62310-0 Swivel bracketSwivel bracket
-
16346S62010-0 Steering shaft ass'ySteering shaft ass'y
-
16-1945103-2200 ClipClip
-
16-2346-62412-0 WasherWasher
-
346-62412-1 WasherWasher
-
17345-62417-0 Bushing Steering ShaftBushing Steering Shaft
-
18345-62441-0 Friction PlateFriction Plate
-
19346-62421-0 Spring, friction plateSpring, friction plate
-
20910103-0830 New partNew part
-
213C8-62423-0 Thrust plate upper
тИЕ26.5 - тИЕ50 - 3mmThrust plate upper
тИЕ26.5 - тИЕ50 - 3mm -
22346-62424-0 Thrust plate 26.5-46-1
тИЕ26.5 - тИЕ46 - 1mmThrust plate 26.5-46-1
тИЕ26.5 - тИЕ46 - 1mm -
23345-62311-0 Oil seal 26-40-5
тИЕ26 - тИЕ40 - 5mmOil seal 26-40-5
тИЕ26 - тИЕ40 - 5mm -
24345-62415-0 O-Ring
тИЕ3.5 - тИЕ25.7O-Ring
тИЕ3.5 - тИЕ25.7 -
25346S61411-1 Mount bracketMount bracket
-
26945103-2500 ClipClip
-
27344-67177-0 МасленкаМасленка
-
28344-67178-0 Cap grease nippleCap grease nipple
-
29346-61301-0 Mount rubber upperMount rubber upper
-
30346-61307-1 Bolt, mount rubber upperBolt, mount rubber upper
-
31346-61333-0 Damper plateDamper plate
-
32346-61335-0 Lock plate upper
тИЕ20 - тИЕ31.7 - 3mmLock plate upper
тИЕ20 - тИЕ31.7 - 3mm -
33346-61312-0 Retainer, mount rubberRetainer, mount rubber
-
34910103-6820 BoltBolt
-
35346-61302-0 Lower Mount RubberLower Mount Rubber
-
36346-61321-1 Bolt, mount rubber lowerBolt, mount rubber lower
-
37346-61334-0 Lock plate lower
тИЕ21 - тИЕ35.7 - 3mmLock plate lower
тИЕ21 - тИЕ35.7 - 3mm -
38346-61337-0 Damper rubber upperDamper rubber upper
-
40346-61336-0 Damper rubber lowerDamper rubber lower
-
41930103-1000 Nut
P1.5Nut
P1.5 -
42345-61322-1 WasherWasher
-
43346-61323-0 Lock plate mount rubberLock plate mount rubber
-
443C8-62158-0 Ground WireGround Wire
-
46338-60218-2 New partNew part
