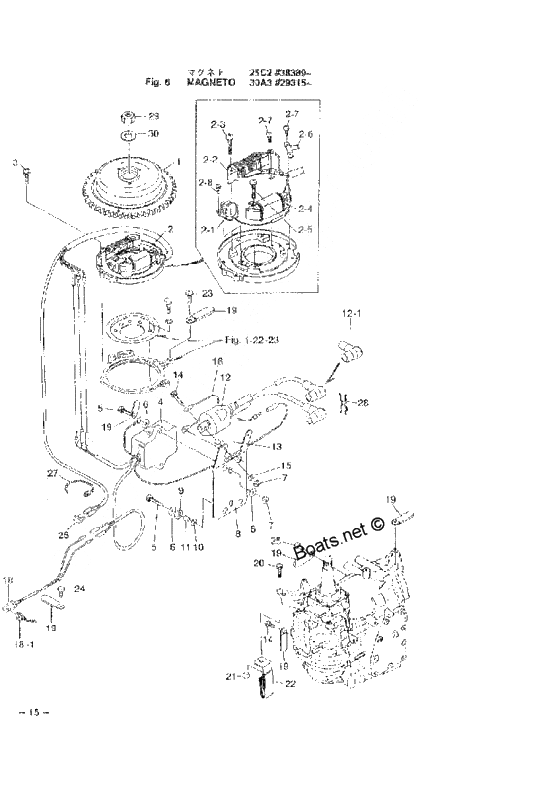

Magneto для Tohatsu M25C2 - 2002 года выпуска
-
№АртикулНазвание
-
13A0-06091-0 Flywheel Cap
FP5505Flywheel Cap
FP5505 -
23A0-06002-0 Coil plate ass'yCoil plate ass'y
-
2-13G2-06022-0 Trigger coil setTrigger coil set
-
2-23A0-06023-0 AlternaterAlternater
-
2-3921521-6528 Stud BoltStud Bolt
-
2-43G2-06021-0 Exciter coilExciter coil
-
2-5921521-6522 Stud BoltStud Bolt
-
2-6350-06025-0 Holder, magneto cordHolder, magneto cord
-
2-7921521-6406 Stud BoltStud Bolt
-
2-8921521-6408 Stud BoltStud Bolt
-
3921521-6510 Stud BoltStud Bolt
-
43A0-06060-1 C.D. UnitC.D. Unit
-
5910103-6625 BoltBolt
-
63C8-66308-0 New partNew part
-
7930103-0600 NutNut
-
83A0-06322-0 Plate electronicPlate electronic
-
93B7-06305-0 Mount Rubber, 9-16-4.3Mount Rubber, 9-16-4.3
-
103F3-06920-0 Mount Rubber 9-12-2Mount Rubber 9-12-2
-
113A0-76079-0 Collar, 6.2-9-7.5Collar, 6.2-9-7.5
-
123A0-06040-1 Ignition CoilIgnition Coil
-
12-13C7-06921-0 Prug cap (with waterproof registance)Prug cap (with waterproof registance)
-
133B2-02416-0 Spacer air silencerSpacer air silencer
-
15941303-0600 New partNew part
-
163B7-76142-0 Ground cordGround cord
-
18398-06830-0 Safety Switch Ass'ySafety Switch Ass'y
-
18-1353-06821-0 Lock, lanyard stop switchLock, lanyard stop switch
-
19309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
20910114-0825 BoltBolt
-
22345-06917-1 Clamp 9-20uClamp 9-20u
-
24910121-0612 Bolt
EP Type OptionBolt
EP Type Option -
26353-76037-0 Plug Cable TerminalPlug Cable Terminal
-
27336-76091-0 Band Battery CordBand Battery Cord
-
28346-06916-0 Clip high tension cordClip high tension cord
-
29334-00132-0 Nut 16p1.5lNut 16p1.5l
-
30334-00133-0 Washer magneto
тИЕ17 - тИЕ30 - 1.6mmWasher magneto
тИЕ17 - тИЕ30 - 1.6mm
