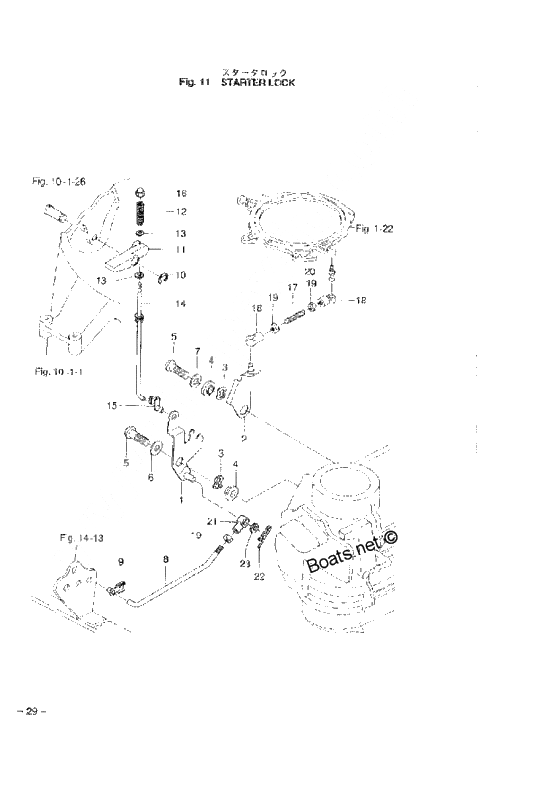

Starter lock для Tohatsu M25C2 - 2002 года выпуска
-
№АртикулНазвание
-
1346-05211-1 Lock arm starterLock arm starter
-
2346-05213-0 Stop arm throttleStop arm throttle
-
3941403-1000 WasherWasher
-
4346-05212-0 Bushing starter lock armBushing starter lock arm
-
5921503-0620 Stud BoltStud Bolt
-
63C8-66308-0 New part
тИЕ6 - тИЕ16 - 1.5mmNew part
тИЕ6 - тИЕ16 - 1.5mm -
7940103-0600 WasherWasher
-
8346-05222-0 New partNew part
-
9345-05224-0 Rod snap,5-2.5Rod snap,5-2.5
-
10945303-0600 E-RingE-Ring
-
11345-05226-0 Starter lock leverStarter lock lever
-
12345-05216-0 Starter lock springStarter lock spring
-
13940103-0400 WasherWasher
-
14346-05217-1 Rod, starter lockRod, starter lock
-
15345-05223-1 Rod Snap,3.5-2Rod Snap,3.5-2
-
16346-05209-0 Cap starter lock rodCap starter lock rod
-
17346-05221-0 Rod throttle stop armRod throttle stop arm
-
183B7-05243-0 New partNew part
-
20346-05228-0 New partNew part
-
21346-05234-0 New part
тИЕ5New part
тИЕ5 -
22951603-0800 R-PinR-Pin
-
23353-83719-0 Washer
тИЕ8.5 - тИЕ18 - 1.6mmWasher
тИЕ8.5 - тИЕ18 - 1.6mm
Все узлы модели:
- Assembly kit
- Bracket
- Carburetor
- Cylinder - crank case assembly
- Drive housing - gear case
- Electric starter (common use for p & f types)
- Electric starter (exclusive use for p & f types)
- Fuel pump
- Fuel tank (remote)
- Gear shift
- Inlet - reed valve
- Magneto (old)
- Magneto
- Meter
- Motor cover
- Piston & crank shaft
- Recoil starter
- Remote control
- Reverse lock 25c2 #42833- 30a3 #31959-
- • Starter lock
- Throttle mechanism
- Tiller handle
- Transmission - water pump
