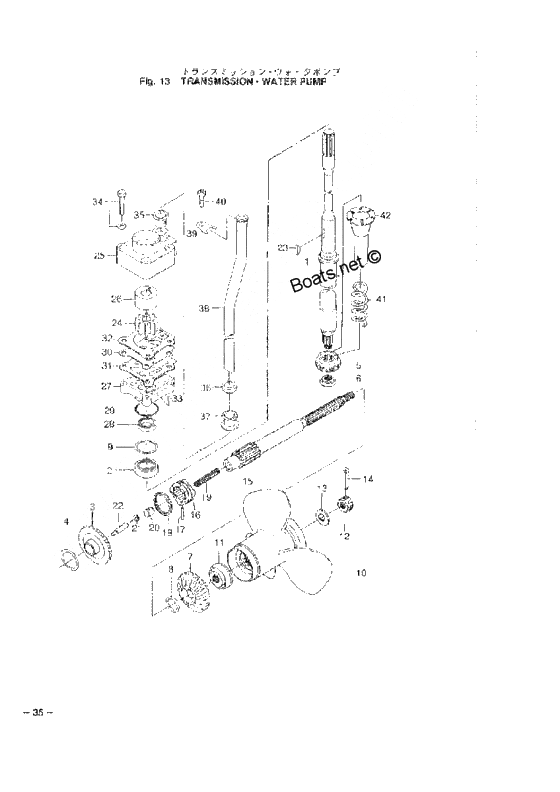

Transmission - water pump для Tohatsu M25C2 - 2002 года выпуска
-
№АртикулНазвание
-
1346-64301-5 Drive Shaft SDrive Shaft S
-
1346-64302-5 Drive shaft lDrive shaft l
-
1346-64304-5 Drive shaft llDrive shaft ll
-
1346-64303-5 Drive Shaft ULDrive Shaft UL
-
2346-60213-0 Bearing, 32004Bearing, 32004
-
3346-64010-1 Bevel Gear A
25C2 #40911- 30A3 #30720Bevel Gear A
25C2 #40911- 30A3 #30720 -
4369-64081-1 Shim, 26. 5-34. 8-0.1
for Gear AShim, 26. 5-34. 8-0.1
for Gear A -
4369-64082-1 Shim, 26. 5-34. 8-0.15
for Gear AShim, 26. 5-34. 8-0.15
for Gear A -
5346-64020-1 Bevel Gear B
25C2 #40911- 30A3 #30720Bevel Gear B
25C2 #40911- 30A3 #30720 -
6346-64027-1 Nut, Bevel Gear BNut, Bevel Gear B
-
7346-64030-0 Bevel Gear CBevel Gear C
-
8346-64032-0 New part
тИЕ18.1 - тИЕ24 - 1.5mmNew part
тИЕ18.1 - тИЕ24 - 1.5mm -
9346-64081-0 Shim, 35-41.9-0.1Shim, 35-41.9-0.1
-
9346-64082-0 Shim, 35-41.9-0.15Shim, 35-41.9-0.15
-
9346-64083-0 Shim, 35-41.9-0.3Shim, 35-41.9-0.3
-
9346-64084-0 Shim, 35-41.9-0.5Shim, 35-41.9-0.5
-
10346-64102-5 Propeller 10
Standard Propeller for Transom ULPropeller 10
Standard Propeller for Transom UL -
10346-64101-5 Propeller 9Propeller 9
-
10346-64106-5 Prop 25&30 hp (10.2 dia. x 8.3 pitch)Prop 25&30 hp (10.2 dia. x 8.3 pitch)
-
346B64106-5 Prop 25&30 hp (10.2 dia. x 8.3 pitch)Prop 25&30 hp (10.2 dia. x 8.3 pitch)
-
10346-64105-5 Prop 25 & 30 hp (9.9 dia. x 14.2 pitch)Prop 25 & 30 hp (9.9 dia. x 14.2 pitch)
-
349B64529-1 Prop 25 & 30 hp (9.9 dia. x 14.2 pitch)Prop 25 & 30 hp (9.9 dia. x 14.2 pitch)
-
10346-64104-5 Propeller 13
Standard Propeller for Transom SPropeller 13
Standard Propeller for Transom S -
10346-64103-5 Propeller 11
Standard Propeller for Transoms L & LLPropeller 11
Standard Propeller for Transoms L & LL -
11346-64231-5 New partNew part
-
12346-64121-5 ナット、プロペラナット、プロペラ
-
13346-64124-5 WasherWasher
-
14951503-0322 Split pin, 3-22Split pin, 3-22
-
15346-64211-6 プロペラシャフトプロペラシャフト
-
16346-64215-1 New partNew part
-
17346-64218-0 New partNew part
-
18346-64219-0 New partNew part
-
19332-64221-0 New partNew part
-
20350-64222-0 New partNew part
-
21965002-0803 Steel ball, 3/8
25C2 #40911- 30A3 #30720Steel ball, 3/8
25C2 #40911- 30A3 #30720 -
223C8-64223-1 Push rod, clutch
25C2 #40911- 30A3 #30720Push rod, clutch
25C2 #40911- 30A3 #30720 -
23332-65022-0 Key, pump impellerKey, pump impeller
-
24345-65021-0 Крыльчатка водной помпыКрыльчатка водной помпы
-
25348-65016-1 Upper Pump CaseUpper Pump Case
-
26348-65011-0 Liner, pump caseLiner, pump case
-
27346-65017-2 Pump Case Lower
25C2 #41596- 30A3 #31283-Pump Case Lower
25C2 #41596- 30A3 #31283- -
28346-65013-0 Oil' seal, 17-30-9
тИЕ17 - тИЕ30 - 9mmOil' seal, 17-30-9
тИЕ17 - тИЕ30 - 9mm -
29336-62415-0 O-Ring
тИЕ3.5 - тИЕ36O-Ring
тИЕ3.5 - тИЕ36 -
30348-65025-0 Guide plate, water pumpGuide plate, water pump
-
31348-65029-1 Gasket, pump guide plateGasket, pump guide plate
-
32348-65018-0 Прокладка насосаПрокладка насоса
-
33334-65012-0 Стопор
тИЕ4 - 10mmСтопор
тИЕ4 - 10mm -
353B7-65014-0 Lower seal rubber, water pipeLower seal rubber, water pipe
-
36346-65206-0 Seal rubber upper water pipeSeal rubber upper water pipe
-
37346-65204-0 Lock Rubber Water PipeLock Rubber Water Pipe
-
38346-65120-0 Water Pipe ULWater Pipe UL
-
38346-65100-0 Water pipe sWater pipe s
-
38346-65110-0 Water Pipe LWater Pipe L
-
38346-65130-0 Water pipe llWater pipe ll
-
39346-65203-0 Lock plate water pipeLock plate water pipe
-
41346-64327-0 Spring Drive ShaftSpring Drive Shaft
-
42346-64328-0 New partNew part
