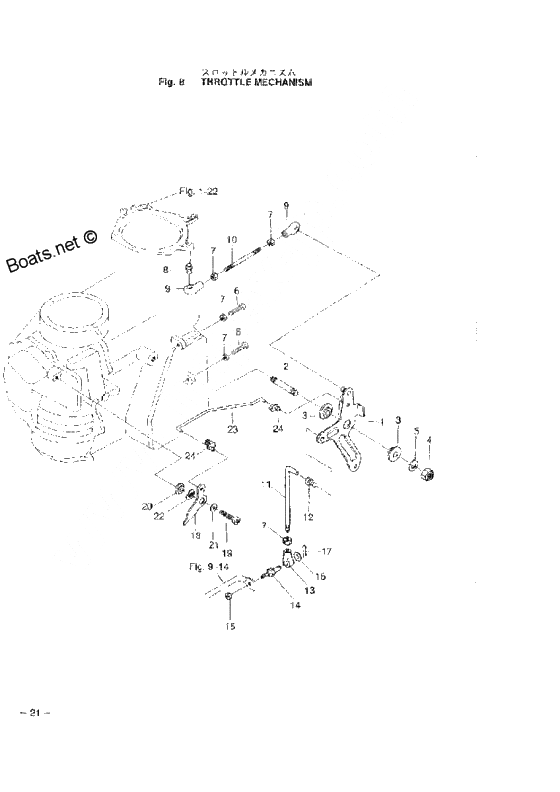

Throttle mechanism для Tohatsu M25C2 - 2002 года выпуска
-
№АртикулНазвание
-
1346-63711-1 Advancer ArmAdvancer Arm
-
2915221-0823 Stud BoltStud Bolt
-
3345-63713-0 BushingBushing
-
4930406-0800 Nylon NutNylon Nut
-
5334-66233-0 Bracket washer
тИЕ8.1 - тИЕ16 - 1.5mmBracket washer
тИЕ8.1 - тИЕ16 - 1.5mm -
8346-05228-0 New partNew part
-
93B7-05243-0 New partNew part
-
10346-63715-0 Advancer link rodAdvancer link rod
-
113A1-63717-0 Link rod 5-70lLink rod 5-70l
-
12345-05224-0 Rod snap,5-2.5Rod snap,5-2.5
-
13346-05234-0 New part
тИЕ5New part
тИЕ5 -
14353-83728-0 Cable PinCable Pin
-
353-83728-1 Cable PinCable Pin
-
16353-83719-0 WasherWasher
-
17951603-0800 R-PinR-Pin
-
18346-63718-0 Throttle CamThrottle Cam
-
19921503-0616 Stud BoltStud Bolt
-
20346-63721-0 BushingBushing
-
213C8-66308-0 New part
тИЕ6 - тИЕ16 - 1.5mmNew part
тИЕ6 - тИЕ16 - 1.5mm -
22941403-1000 WasherWasher
-
23346-63716-0 Throttle link rodThrottle link rod
-
24345-05223-1 Rod Snap,3.5-2
тИЕ3.5Rod Snap,3.5-2
тИЕ3.5
