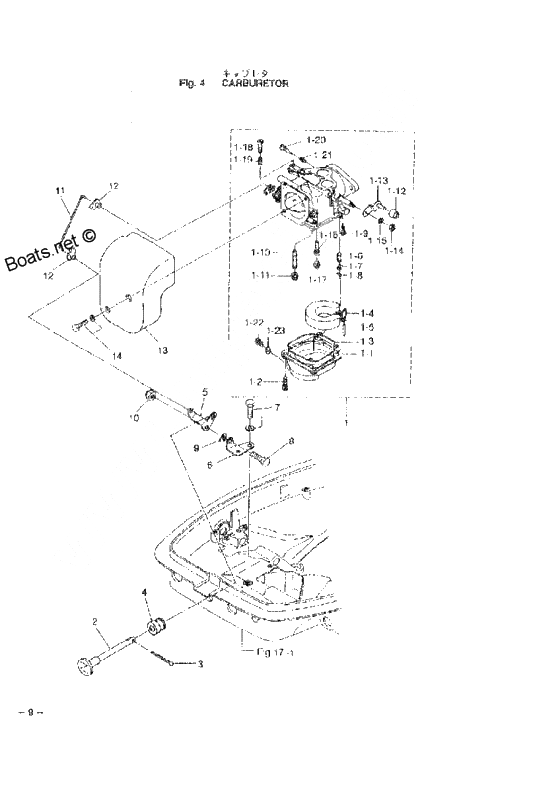

Carburetor для Tohatsu M25C2 - 2002 года выпуска
-
№АртикулНазвание
-
1346-03200-2 Carburetor ass'y
25C2 #27906, 30A3 #21031Carburetor ass'y
25C2 #27906, 30A3 #21031 -
1-1353-03221-0 Float ChamberFloat Chamber
-
1-103A1-03252-0 Main nozzle (#100)
, 25C2 #27906-, 30A3 #21031-Main nozzle (#100)
, 25C2 #27906-, 30A3 #21031- -
1-113A1-03251-0 Жиклер главный
, 25C2 #27906-, 30A3 #21031-Жиклер главный
, 25C2 #27906-, 30A3 #21031- -
1-12346-03264-0 Втулка тяги КППВтулка тяги КПП
-
1-13346-03272-0 Throttle leverThrottle lever
-
1-163A1-03276-0 Slow jet(#85)
25C2 #27906-, 30A3 #21031-Slow jet(#85)
25C2 #27906-, 30A3 #21031- -
1-17346-03256-0 Rubber capRubber cap
-
1-18346-03265-0 Stop ScrewStop Screw
-
1-19346-03267-0 Spring aSpring a
-
1-2922503-6414 Stud BoltStud Bolt
-
1-20346-03266-0 Adjust ScrewAdjust Screw
-
1-21346-03268-0 Spring BSpring B
-
1-22345-03292-0 Drain ScrewDrain Screw
-
1-23336-03293-0 O-RingO-Ring
-
1-3346-03222-0 O-ring, floatO-ring, float
-
1-4346-03231-0 FloatFloat
-
1-5346-03232-0 Arm Pin FloatArm Pin Float
-
1-6346-03240-0 Float ValveFloat Valve
-
1-7334-03242-0 Игольчатый клапанИгольчатый клапан
-
1-8344-03244-0 ClipClip
-
1-93F3-03234-0 Screw arm pinScrew arm pin
-
2346-67151-0 Choke RodChoke Rod
-
3951503-0212 Split PinSplit Pin
-
4346-67104-0 Bushing choke rodBushing choke rod
-
5346-67152-0 Рукоятка отбойникаРукоятка отбойника
-
6346-67153-0 Bracket choke leverBracket choke lever
-
7910103-6612 BoltBolt
-
8910103-0614 BoltBolt
-
9941403-0600 WasherWasher
-
11346-67191-0 Rod choke linkRod choke link
-
12346-67196-0 Rod snap, 3 - b
тИЕ3 - BRod snap, 3 - b
тИЕ3 - B -
13346-02411-0 Air SilencerAir Silencer
-
14910121-5614 BoltBolt
