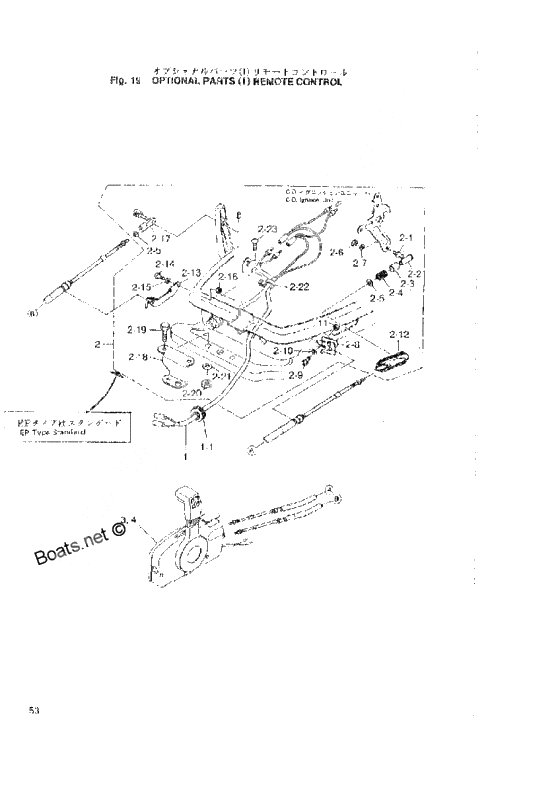

Remote control для Tohatsu M25C2 - 2002 года выпуска
-
№АртикулНазвание
-
1361-83853-0 R.c. stop cord 3.9mR.c. stop cord 3.9m
-
1361-83858-0 R.c. Stop Cord 5.9mR.c. Stop Cord 5.9m
-
1-1345-76023-0 Grommet 22-2.5Grommet 22-2.5
-
23A1-83880-1 S.r.c. fitting parts ass'y
for Inch ScrewS.r.c. fitting parts ass'y
for Inch Screw -
2-1345-83721-0 Шаровое соединениеШаровое соединение
-
2-10941303-0500 Spring WasherSpring Washer
-
2-11930103-0500 NutNut
-
2-12346-83732-0 Grommet throttle cableGrommet throttle cable
-
2-13346-83870-0 Clutch cable clip ass'yClutch cable clip ass'y
-
2-14910103-0620 BoltBolt
-
2-173A1-83710-1 Sleeve b ass'ySleeve b ass'y
-
2-18346-84830-1 Steering Hook PlateSteering Hook Plate
-
2-19910103-6830 BoltBolt
-
2-23A1-83722-0 Ball holderBall holder
-
2-20930103-0800 NutNut
-
2-21940103-0800 Washer -> 940113-0800Washer -> 940113-0800
-
2-22336-06973-0 Clamp Lead WireClamp Lead Wire
-
2-23921503-0612 Stud BoltStud Bolt
-
2-3332-83723-0 Cap ball jointCap ball joint
-
2-4332-83724-0 Spring ball jointSpring ball joint
-
2-5332-83725-0 WasherWasher
-
2-6930103-0600 NutNut
-
2-7941303-0600 New partNew part
-
2-8345-83820-0 Cable clip ass'yCable clip ass'y
-
33B7-84350-1 Single remote control box ass'y(rc5c)
for EP UniqueSingle remote control box ass'y(rc5c)
for EP Unique -
43B7-84360-0 Single remote control box ass'y(rc5d)
for F UniqueSingle remote control box ass'y(rc5d)
for F Unique
