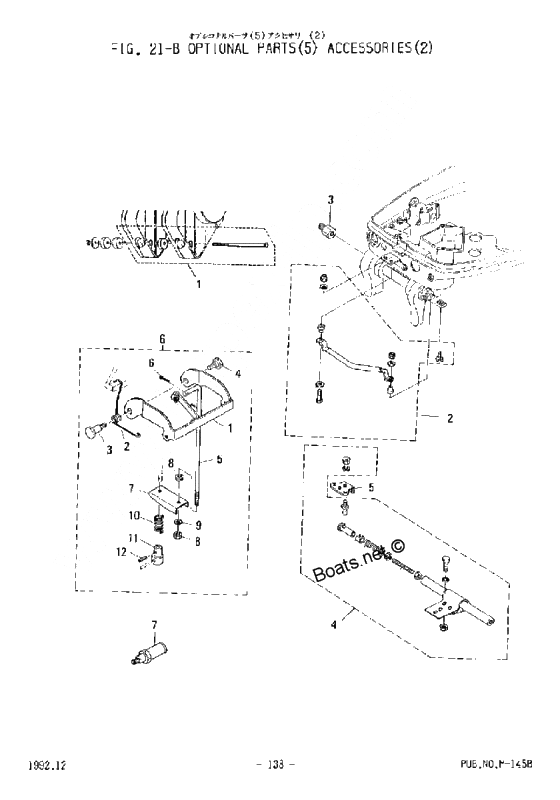

Accessories 2 для Tohatsu M40C - 2002 года выпуска
-
№АртикулНазвание
-
00353-72521-1 Switch Meter LampSwitch Meter Lamp
-
00353-06830-0 Safety switch assemblySafety switch assembly
-
00361-72539-0 Lead Wire TachometerLead Wire Tachometer
-
003B7-72652-0 Cord, fuel meterCord, fuel meter
-
003A3-81301-0 Twin Remote Control Box KitTwin Remote Control Box Kit
-
00385-72522-0 СПСП
-
00398-06830-0 Safety Switch Ass'ySafety Switch Ass'y
-
00361-72542-0 Separate cord(white)Separate cord(white)
-
00361-84905-0 Drag link b ass'yDrag link b ass'y
-
00361-72527-0 Washer pressure meter ass'yWasher pressure meter ass'y
-
00361-72543-0 Separate cord(yellow)Separate cord(yellow)
-
00353-84904-0 Spacer Drag LinkSpacer Drag Link
-
00353-72537-0 Meter Lead WireMeter Lead Wire
-
00346-76160-1 Rectifier kit aRectifier kit a
-
00361-06940-0 Plug receptacle assemblyPlug receptacle assembly
-
00345-84900-2 Twin remote control turn backle ass'yTwin remote control turn backle ass'y
-
00353-72546-0 Assist Cord(Red)Assist Cord(Red)
-
00348-64111-0 Test PropellerTest Propeller
-
00940-13040-0 Washer, consentWasher, consent
-
00361-84901-0 Plate turnbucklePlate turnbuckle
-
00353-72547-0 Assist Cord(blue)Assist Cord(blue)
-
00346-63039-0 Long handle 0.8mLong handle 0.8m
-
00336-60007-0 New partNew part
-
00345-67169-0 Grommet lighting cordGrommet lighting cord
-
00348-66901-0 Clutch lever,reverse lock kitClutch lever,reverse lock kit
-
00353-72548-0 Assist Cord(black)Assist Cord(black)
-
00386-72323-0 Touch-up paint (metalic cobalt blue)
6 Spray Can/CaseTouch-up paint (metalic cobalt blue)
6 Spray Can/Case -
01353-06821-0 Lock, lanyard stop switchLock, lanyard stop switch
-
04332-66307-0 Shaft Reverse Lock
To Be Purchased as an Ass'Shaft Reverse Lock
To Be Purchased as an Ass' -
06951503-0212 Split Pin
To Be Purchased as an Ass'Split Pin
To Be Purchased as an Ass' -
08930103-0500 Nut
To Be Purchased as an Ass'Nut
To Be Purchased as an Ass' -
09941303-0500 Spring Washer
To Be Purchased as an Ass'Spring Washer
To Be Purchased as an Ass' -
12951403-0414 Spring Washer
To Be Purchased as an Ass'Spring Washer
To Be Purchased as an Ass'
