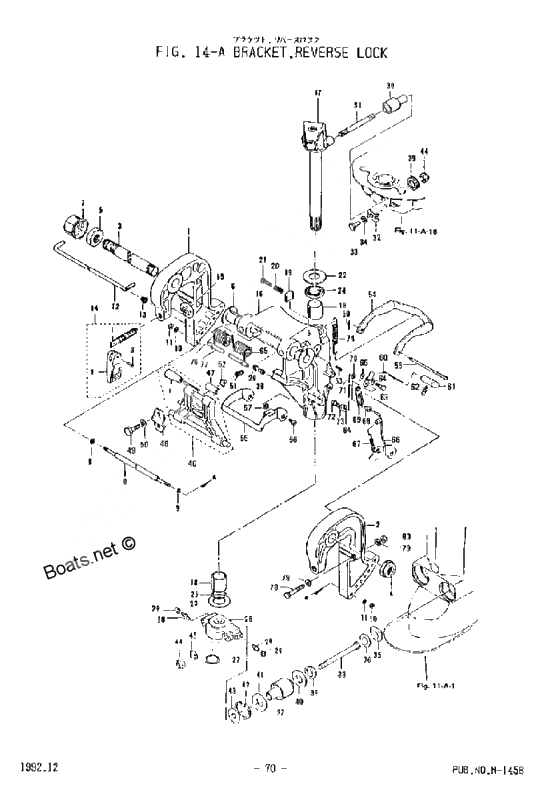

Bracket & reverse lock для Tohatsu M40C - 2002 года выпуска
-
№АртикулНазвание
-
00930103-0600 NutNut
-
00345-61302-0 Rubber mount bRubber mount b
-
00334-66233-0 Bracket washer
D8.1-D16-!.5MMBracket washer
D8.1-D16-!.5MM -
00345-62441-0 Friction PlateFriction Plate
-
00346-62438-0 Set PieceSet Piece
-
00346-62124-0 Bracket Nut(Nylon)Bracket Nut(Nylon)
-
00345-61313-0 Stud bolt rubberStud bolt rubber
-
00346-66312-0 Link, Reverse LockLink, Reverse Lock
-
00345-61322-1 WasherWasher
-
00940-13080-0 Washer
OptionWasher
Option -
00345-62415-0 O-Ring
D3.5-D29.7MMO-Ring
D3.5-D29.7MM -
00346-66321-0 Rod,Reverse LockRod,Reverse Lock
-
00346-62112-1 Stern bracket right
BlueStern bracket right
Blue -
00941303-0600 New partNew part
-
00345-61321-1 Bolt, mount rubber lowerBolt, mount rubber lower
-
00346-62421-0 Spring, friction plateSpring, friction plate
-
00951403-0414 Spring Washer
D4-14MMSpring Washer
D4-14MM -
00346-62125-0 Bracket nut bBracket nut b
-
00345-61312-0 Retainer mount rubberRetainer mount rubber
-
00346-66323-0 Spring, reverse lock leverSpring, reverse lock lever
-
00346-62431-0 Tilt Stopper Ass'y
BlueTilt Stopper Ass'y
Blue -
00930103-0800 Nut
OptionNut
Option -
00348-61411-1 Mount bracket
BlueMount bracket
Blue -
00951503-0212 Split PinSplit Pin
-
00345-62121-0 Thrust RodThrust Rod
-
00345-61333-0 Damper plateDamper plate
-
00910114-0830 BoltBolt
-
00951403-0635 Spring Washer
D4-16MMSpring Washer
D4-16MM -
00346-62126-1 Bushing, Bracket BoltBushing, Bracket Bolt
-
00910103-6820 BoltBolt
-
00346-66328-0 Guide bushing,reverse lockGuide bushing,reverse lock
-
00332-62101-0 Pad clamp screwPad clamp screw
-
00349S62431-0 Tilt stop assy
GrayTilt stop assy
Gray -
349Q62993-1 Tilt stop assyTilt stop assy
-
00346-66333-0 GripGrip
-
00346-61113-0 Stern bracket left
BlueStern bracket left
Blue -
00345-62122-0 Spring, thrust rodSpring, thrust rod
-
00345-61334-0 Lock Plate
D21-D40.3-4MMLock Plate
D21-D40.3-4MM -
00348-62141-0 Spring r tilt assistant
STD. For LL&XLSpring r tilt assistant
STD. For LL&XL -
00345-62423-0 Thrust plate upper
D26.5-D50-3MMThrust plate upper
D26.5-D50-3MM -
00346-66322-0 Reverse LockReverse Lock
-
00346-62127-0 Cap,Bracket BoltCap,Bracket Bolt
-
00941303-0800 Spring WasherSpring Washer
-
00346-66327-0 Guide plate,reverse lockGuide plate,reverse lock
-
00945103-2500 ClipClip
-
00346-66334-0 StopperStopper
-
00332-62100-0 Clamp Screw Ass'y
BlueClamp Screw Ass'y
Blue -
00348-61309-0 Shim mount rubber lower
T=0.5Shim mount rubber lower
T=0.5 -
00348-62142-0 Spring l tilt assistant
STD. For LL&XLSpring l tilt assistant
STD. For LL&XL -
003C8-62423-0 Thrust plate upperThrust plate upper
-
00346-66313-0 Arm,Reverse LockArm,Reverse Lock
-
00346-62117-0 Distance PieceDistance Piece
-
00345-61331-0 Damper capDamper cap
-
00348-62010-0 Steering shaft ass'y
BlueSteering shaft ass'y
Blue -
00346-62437-0 BushingBushing
-
00346-62115-1 Bracket bolt
BlueBracket bolt
Blue -
00344-67177-0 МасленкаМасленка
-
00345-05214-0 Shaft, reverse lock leverShaft, reverse lock lever
-
00N32-62100-0 Clamp Screw Ass'y
GrayClamp Screw Ass'y
Gray -
00348-62143-0 Shaft Tilt Assistant
STD. For LL&XLShaft Tilt Assistant
STD. For LL&XL -
00346-62424-0 Thrust plate 26.5-46-1
D26.5-D46-1MMThrust plate 26.5-46-1
D26.5-D46-1MM -
00336-66319-0 Shift, reverse lock armShift, reverse lock arm
-
00940-13060-0 WasherWasher
-
00345-61332-0 Damper collarDamper collar
-
00301-66314-0 Pin reverse lock leverPin reverse lock lever
-
00345-62417-0 Bushing Steering ShaftBushing Steering Shaft
-
00346-62439-0 Set Plate Tilt StopperSet Plate Tilt Stopper
-
00345-61301-0 Rubber mount aRubber mount a
-
00941403-0800 WasherWasher
-
00930403-1000 Nylon NutNylon Nut
-
00916-13088-5 Bolt
OptionBolt
Option -
00345-62311-0 Oil seal 26-40-5
D26-D40-5MMOil seal 26-40-5
D26-D40-5MM -
00332-66308-0 Washer, fuel tank
D6.5-D16-1.5MMWasher, fuel tank
D6.5-D16-1.5MM -
01349S62112-0 Stern braket r
GrayStern braket r
Gray -
01346-66332-0 Spring (L) Reverse Lock
Transom L,LL,XLSpring (L) Reverse Lock
Transom L,LL,XL -
01348S61411-1 Mount bracket
GrayMount bracket
Gray -
01349S62310-0 Swivel bracket
GraySwivel bracket
Gray -
01336-62433-0 Grip Tilt StopperGrip Tilt Stopper
-
01349S62113-0 Stern braket l
GrayStern braket l
Gray -
01346-62191-0 Bracket Bolt Ass'y
GrayBracket Bolt Ass'y
Gray -
01332-62103-0 Винт струбциныВинт струбцины
-
02332-62102-0 Handle, clamp screw
BlueHandle, clamp screw
Blue -
03332-62104-0 Pin, clamp screwPin, clamp screw
-
74346-66331-0 Spring (S) Reverse Lock
Transom(S)Spring (S) Reverse Lock
Transom(S)
