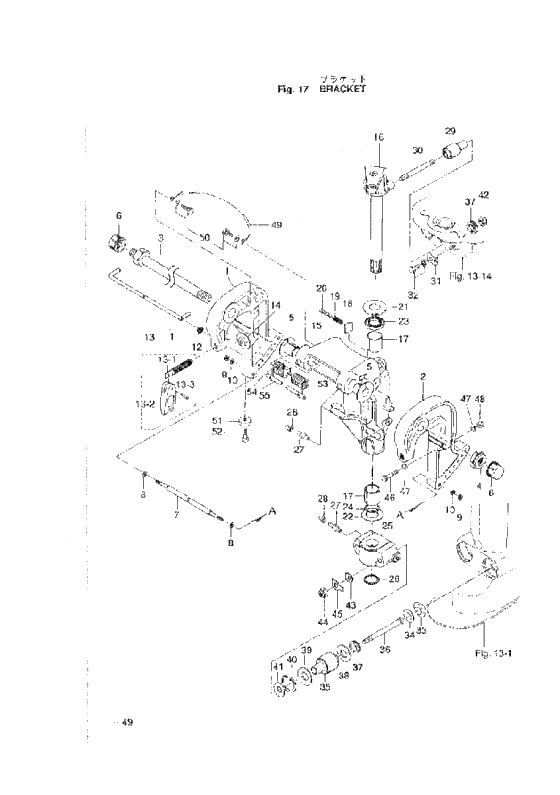

Bracket для Tohatsu M40C - 2002 года выпуска
-
№АртикулНазвание
-
1349S62112-0 Stern braket rStern braket r
-
2349S62113-0 Stern braket lStern braket l
-
3346-62191-0 Bracket Bolt Ass'yBracket Bolt Ass'y
-
4346-62124-0 Bracket Nut(Nylon)Bracket Nut(Nylon)
-
5349-62126-0 Bushing, Bracket BoltBushing, Bracket Bolt
-
6346-62127-0 Cap,Bracket BoltCap,Bracket Bolt
-
7346-62117-0 Distance PieceDistance Piece
-
8940103-0600 WasherWasher
-
9930103-0600 NutNut
-
10941303-0600 New partNew part
-
11345-62121-0 Thrust RodThrust Rod
-
12345-62122-0 Spring, thrust rodSpring, thrust rod
-
13398S62100-0 Clamp Screw Ass'yClamp Screw Ass'y
-
13-1398-62103-0 Винт струбциныВинт струбцины
-
13-33C8-62104-0 Rivet 3-22Rivet 3-22
-
14332-62101-0 Pad clamp screwPad clamp screw
-
15349S62310-0 Swivel bracketSwivel bracket
-
16348S62010-0 Steering shaft ass'ySteering shaft ass'y
-
17345-62417-0 Bushing Steering ShaftBushing Steering Shaft
-
18345-62441-0 Friction PlateFriction Plate
-
19346-62421-0 Spring, friction plateSpring, friction plate
-
20910103-0830 New partNew part
-
213C8-62423-0 Thrust plate upper
26.5 - 50 - 3mmThrust plate upper
26.5 - 50 - 3mm -
22346-62424-0 Thrust plate 26.5-46-1
26.5 - 46 - 1mmThrust plate 26.5-46-1
26.5 - 46 - 1mm -
23345-62311-0 Oil seal 26-40-5
26 - 40 - 5mmOil seal 26-40-5
26 - 40 - 5mm -
24345-62415-0 O-Ring
3.5 - 25.7O-Ring
3.5 - 25.7 -
25348S61411-1 Mount bracketMount bracket
-
26945103-2500 ClipClip
-
27344-67177-0 МасленкаМасленка
-
28344-67178-0 Cap grease nippleCap grease nipple
-
29345-61301-0 Rubber mount aRubber mount a
-
30345-61313-0 Stud bolt rubberStud bolt rubber
-
31345-61312-0 Retainer mount rubberRetainer mount rubber
-
32910103-6820 BoltBolt
-
33345-61331-0 Damper capDamper cap
-
34345-61332-0 Damper collar
20 - 31.7 - 3mmDamper collar
20 - 31.7 - 3mm -
35345-61302-0 Rubber mount bRubber mount b
-
36345-61321-1 Bolt, mount rubber lowerBolt, mount rubber lower
-
37345-61333-0 Damper plateDamper plate
-
38345-61334-0 Lock Plate
21 - 40.3 - 4mmLock Plate
21 - 40.3 - 4mm -
39348-61309-0 Shim mount rubber lowerShim mount rubber lower
-
40945003-4000 C-RingC-Ring
-
42930403-1000 Nylon NutNylon Nut
-
43345-61322-1 WasherWasher
-
44930103-1000 Nut
P1.5Nut
P1.5 -
45346-61323-0 Lock plate mount rubberLock plate mount rubber
-
47940103-0800 Washer -> 940113-0800
EP Type: STDWasher -> 940113-0800
EP Type: STD -
48930103-0800 NutNut
-
493C8-62158-0 Ground WireGround Wire
-
51338-60218-2 New partNew part
-
53348-62141-0 Spring r tilt assistant
STD, for LL & ULSpring r tilt assistant
STD, for LL & UL -
54348-62142-0 Spring l tilt assistant
STD, for LL & ULSpring l tilt assistant
STD, for LL & UL -
55348-62143-0 Shaft Tilt Assistant
STD, for LL & ULShaft Tilt Assistant
STD, for LL & UL
