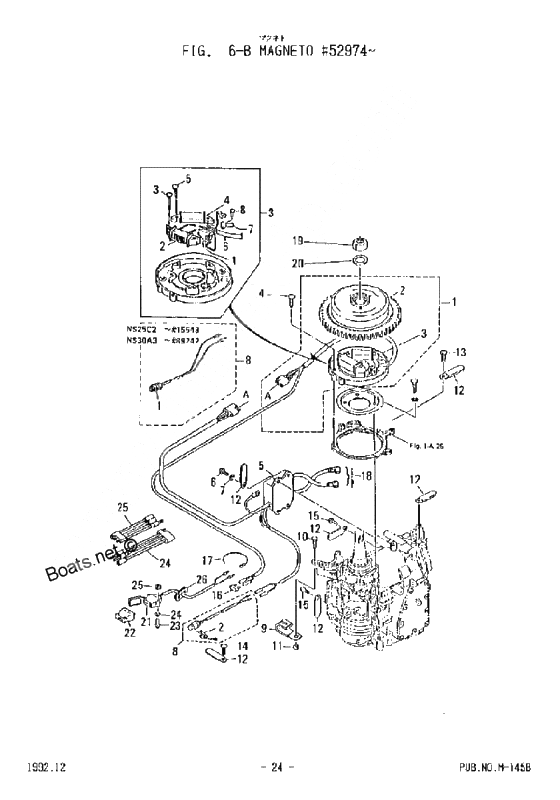

Magneto для Tohatsu M40C - 2002 года выпуска
-
№АртикулНазвание
-
00940-13060-0 WasherWasher
-
00361-06940-0 Plug receptacle assembly
OptionPlug receptacle assembly
Option -
00309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
00361-06291-0 Flywheel cupFlywheel cup
-
00361-06930-0 Stop switchStop switch
-
00940-13040-0 Washer, consent
OptionWasher, consent
Option -
00921-51651-0 Screw (with spring washer)Screw (with spring washer)
-
00922-53651-0 Screw (with spring washer)Screw (with spring washer)
-
003A0-06002-0 Coil plate ass'yCoil plate ass'y
-
00353-06830-0 Safety switch assemblySafety switch assembly
-
00345-67169-0 Grommet lighting cord
OptionGrommet lighting cord
Option -
00346-06260-1 C.d. ignition unitC.d. ignition unit
-
00910121-0612 BoltBolt
-
003A3-06987-0 Adaptor cord aAdaptor cord a
-
00346-06260-2 C.d. ignition unit
1988-Applicable From SeptembC.d. ignition unit
1988-Applicable From Septemb -
00353-76037-0 Plug Cable TerminalPlug Cable Terminal
-
00345-06917-1 Clamp 9-20uClamp 9-20u
-
003A3-06988-0 Adaptor cord bAdaptor cord b
-
00346-06260-3 C.d.egnition unitC.d.egnition unit
-
00336-76091-0 Band Battery CordBand Battery Cord
-
00910103-6820 BoltBolt
-
00921-53063-0 ScrewScrew
-
00345-00133-0 Washer
D16-D28-3.2MMWasher
D16-D28-3.2MM -
00930-16080-0 NutNut
-
02353-06821-0 Lock, lanyard stop switchLock, lanyard stop switch
-
03921-51652-5 Screw (with spring washer)Screw (with spring washer)
-
05921-51652-0 Screw (with spring washer)Screw (with spring washer)
-
06346-06224-1 Magneto cordMagneto cord
-
07345-06225-0 Holder magneto cordHolder magneto cord
-
08921-51640-8 Screw (w/washer), condenserScrew (w/washer), condenser
