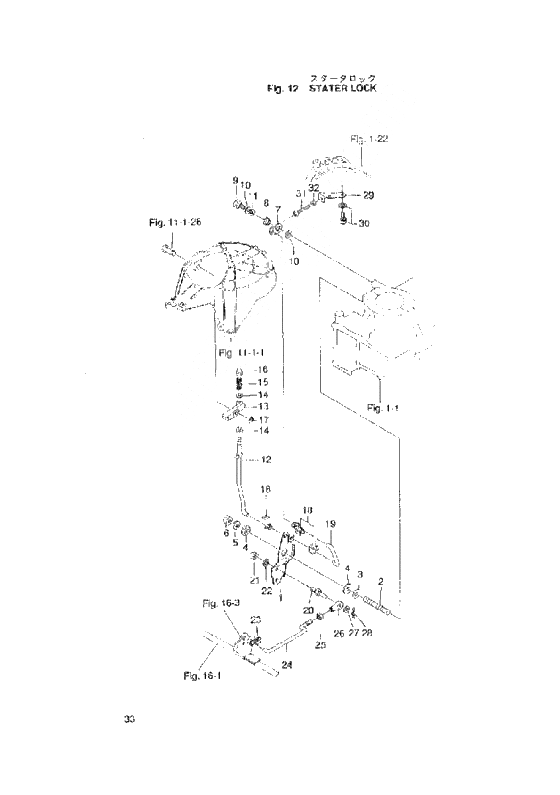

Starter lock для Tohatsu M40C - 2002 года выпуска
-
№АртикулНазвание
-
00945-33060-0 E-RingE-Ring
-
00941403-1000 WasherWasher
-
00346-05234-0 New partNew part
-
00940-13080-0 WasherWasher
-
00345-05223-1 Rod Snap,3.5-2Rod Snap,3.5-2
-
00345-05217-1 Rod starter lockRod starter lock
-
00353-83719-0 Washer
D8.5-D18-1.6MMWasher
D8.5-D18-1.6MM -
00930406-0800 Nylon NutNylon Nut
-
00345-05221-0 Rod, throttle stop armRod, throttle stop arm
-
00345-05226-0 Starter lock leverStarter lock lever
-
00951603-0800 R-PinR-Pin
-
00345-05213-0 Stop arm throttleStop arm throttle
-
00353-83728-0 Cable PinCable Pin
-
353-83728-1 Cable PinCable Pin
-
00361-05211-0 Lock arm starterLock arm starter
-
00940-13040-0 Washer, consentWasher, consent
-
00921-51651-0 Screw (with spring washer)Screw (with spring washer)
-
00346-63721-0 BushingBushing
-
00941303-0600 New partNew part
-
00915-31082-5 Stud BoltStud Bolt
-
00345-05216-0 Starter lock springStarter lock spring
-
00921-56053-0 Screw, throttle adjusterScrew, throttle adjuster
-
00910103-0620 BoltBolt
-
00345-05224-0 Rod snap,5-2.5Rod snap,5-2.5
-
00345-01015-0 Washer
D8.5-D19.5-3.2MMWasher
D8.5-D19.5-3.2MM -
00346-05209-0 Cap starter lock rodCap starter lock rod
-
00940-13060-0 WasherWasher
-
00345-05222-1 Rod starter lock armRod starter lock arm
-
00345-63713-0 BushingBushing
-
1361-05211-0 Lock arm starterLock arm starter
-
2915324-0825 Stud BoltStud Bolt
-
3345-01015-0 WasherWasher
-
4345-63713-0 BushingBushing
-
5940103-0800 Washer -> 940113-0800Washer -> 940113-0800
-
6930406-0800 Nylon NutNylon Nut
-
7345-05213-0 Stop arm throttleStop arm throttle
-
8346-63721-0 BushingBushing
-
9910114-0620 BoltBolt
-
10940103-0600 WasherWasher
-
11941403-1000 WasherWasher
-
12345-05217-1 Rod starter lockRod starter lock
-
13345-05226-0 Starter lock leverStarter lock lever
-
14940103-0400 WasherWasher
-
15345-05216-0 Starter lock springStarter lock spring
-
16346-05209-0 Cap starter lock rodCap starter lock rod
-
17945303-0600 E-RingE-Ring
-
18345-05223-1 Rod Snap,3.5-2Rod Snap,3.5-2
-
19345-05221-1 Rod throttle stop armRod throttle stop arm
-
20353-83728-0 Cable PinCable Pin
-
353-83728-1 Cable PinCable Pin
-
22941303-0600 New partNew part
-
23345-05224-0 Rod snap,5-2.5Rod snap,5-2.5
-
24345-05222-1 Rod starter lock armRod starter lock arm
-
26346-05234-0 New partNew part
-
27353-83719-0 WasherWasher
-
28951603-0800 R-PinR-Pin
-
29348-05233-0 Plate - nlaPlate - nla
-
30921521-6510 Stud BoltStud Bolt
