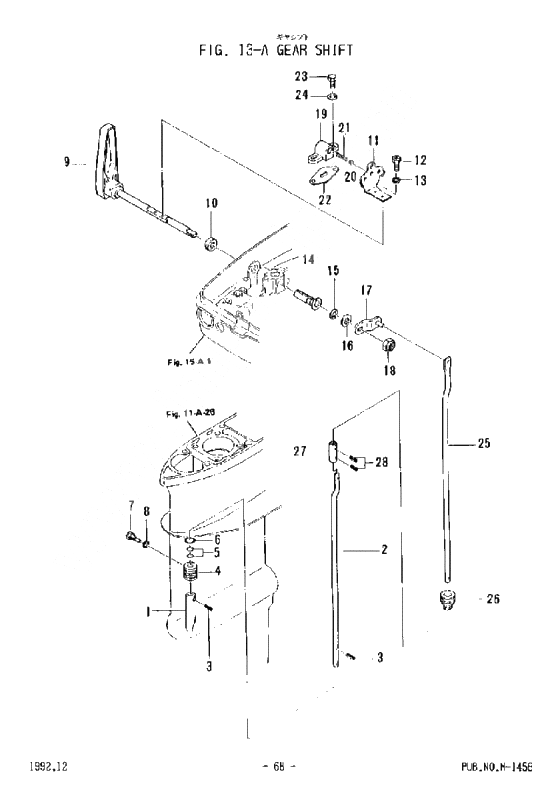

Gear shift для Tohatsu M40C - 2002 года выпуска
-
№АртикулНазвание
-
00910-43051-2 BoltBolt
-
00345-66226-0 Grommet, 17-3Grommet, 17-3
-
00345-66021-0 O-Ring
D1.9-D6.8O-Ring
D1.9-D6.8 -
00345-66115-0 Holder shift lever stopperHolder shift lever stopper
-
00348-66011-0 Clutch CamClutch Cam
-
00941303-0500 Spring WasherSpring Washer
-
00345-66241-0 Connector, shift rodConnector, shift rod
-
00345-66032-0 O-ring b
D2.4-D15.8O-ring b
D2.4-D15.8 -
009650-2-1605 Stopper, shift leverStopper, shift lever
-
00348-66012-0 Cam rod sCam rod s
-
00345-67101-0 BushingBushing
-
00951403-0314 Spring Washer
D3-14MMSpring Washer
D3-14MM -
00301-66025-0 Gasket cam shaft bushingGasket cam shaft bushing
-
00332-66112-0 Spring stopper ballSpring stopper ball
-
00348-66013-0 Cam Rod LCam Rod L
-
00945303-0800 E-RingE-Ring
-
00951-43031-2 Screw
D3-12MMScrew
D3-12MM -
00345-66110-1 Shift lever ass'yShift lever ass'y
-
00345-66119-0 Shim shift lever stopper holder
T=0.2Shim shift lever stopper holder
T=0.2 -
00348-66015-0 Cam rod llCam rod ll
-
00332-61315-0 Washer
D10.5-D18-1.5MmWasher
D10.5-D18-1.5Mm -
00345-66137-0 Oil seal, 10-20-4
D10-D20-4MMOil seal, 10-20-4
D10-D20-4MM -
00940-13060-0 WasherWasher
-
00348-66014-0 Cam Rod ULCam Rod UL
-
00345-66225-0 Shift Rod LeverShift Rod Lever
-
00345-66121-0 Lock plate,shift leverLock plate,shift lever
-
00348-66211-0 Shift RodShift Rod
-
00951403-0316 Spring Washer
D3-16MMSpring Washer
D3-16MM -
00930403-1000 Nylon NutNylon Nut
