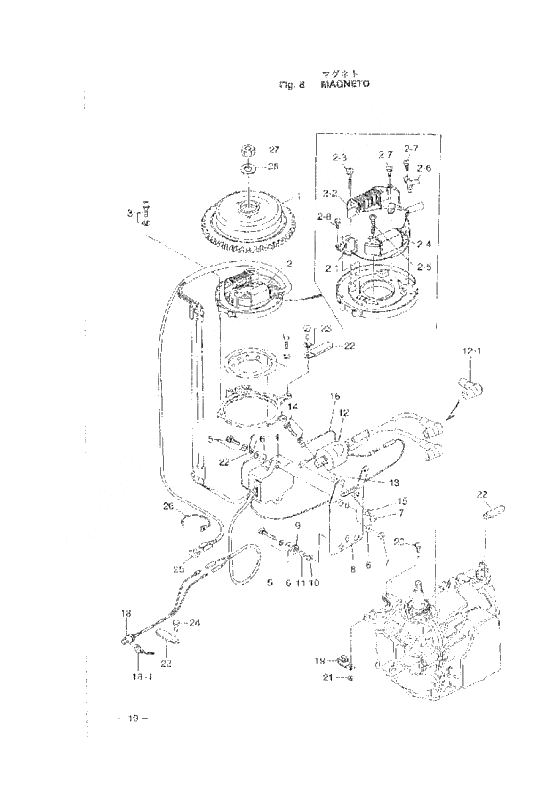

Magento для Tohatsu M40C - 2002 года выпуска
-
№АртикулНазвание
-
1361-06091-0 Flywheel cupFlywheel cup
-
23A0-06002-0 Coil plate ass'yCoil plate ass'y
-
2-13G2-06022-0 Trigger coil setTrigger coil set
-
2-23A0-06023-0 AlternaterAlternater
-
2-3921521-6528 Stud BoltStud Bolt
-
2-43G2-06021-0 Exciter coilExciter coil
-
2-5921521-6522 Stud BoltStud Bolt
-
2-6350-06025-0 Holder, magneto cordHolder, magneto cord
-
2-7921521-6406 Stud BoltStud Bolt
-
2-8921521-6408 Stud BoltStud Bolt
-
3921521-6510 Stud BoltStud Bolt
-
4361-06060-1 Cd. unitCd. unit
-
5910103-6625 BoltBolt
-
63C8-66308-0 New partNew part
-
7930103-0600 NutNut
-
83A0-06322-0 Plate electronicPlate electronic
-
93B7-06305-0 Mount Rubber, 9-16-4.3Mount Rubber, 9-16-4.3
-
103F3-06920-0 Mount Rubber 9-12-2Mount Rubber 9-12-2
-
11353-06821-0 Lock, lanyard stop switchLock, lanyard stop switch
-
113A0-76079-0 Collar, 6.2-9-7.5Collar, 6.2-9-7.5
-
12361-06040-1 Ignition Coil AssyIgnition Coil Assy
-
12-13C7-06921-0 Prug cap (with waterproof registance)Prug cap (with waterproof registance)
-
133B2-02416-0 Spacer air silencerSpacer air silencer
-
15941303-0600 New partNew part
-
163B7-76142-0 Ground cordGround cord
-
18398-06830-0 Safety Switch Ass'ySafety Switch Ass'y
-
19345-06917-1 Clamp 9-20uClamp 9-20u
-
20910114-0820 BoltBolt
-
21930103-0800 NutNut
-
22309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
23922521-6510 Stud BoltStud Bolt
-
24910121-0612 BoltBolt
-
25353-76037-0 Plug Cable TerminalPlug Cable Terminal
-
26336-76091-0 Band Battery CordBand Battery Cord
-
27334-00132-0 Nut 16p1.5lNut 16p1.5l
-
28345-00133-0 WasherWasher
