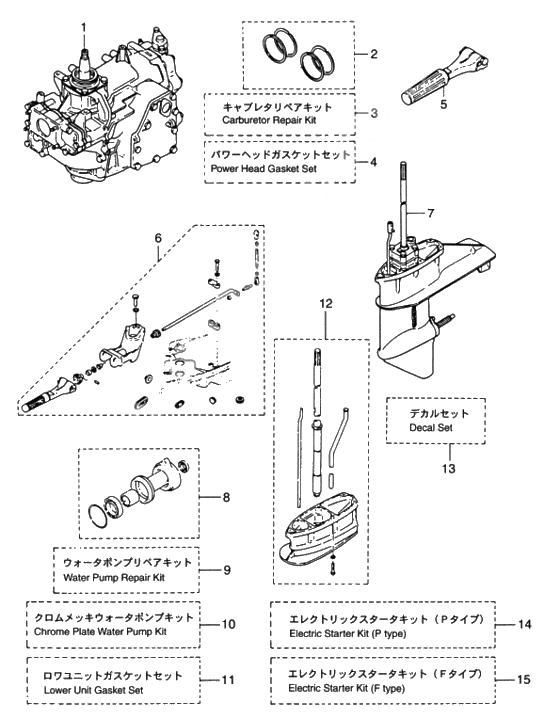

Assembly - kits для Tohatsu M40C - 2004 года выпуска
-
№АртикулНазвание
-
13C1B87100-0 Engine short block
# 032986XD~ / CRANKSHAFT CLOCKWISE SCREWEngine short block
# 032986XD~ / CRANKSHAFT CLOCKWISE SCREW -
1361B87100-0 Short block 40c/2-stroke (cw nut-9311211600m)
~# 028121XD / CRANKSHAFT COUNTERCLOCKWISE SCREWShort block 40c/2-stroke (cw nut-9311211600m)
~# 028121XD / CRANKSHAFT COUNTERCLOCKWISE SCREW -
3C1B87090-5 Short block 40c/2-stroke (cw nut-9311211600m)Short block 40c/2-stroke (cw nut-9311211600m)
-
2361-87123-0 Кольца поршневыеКольца поршневые
-
2361-00011-0 Кольцо поршняКольцо поршня
-
2345-00011-0 Поршневые кольцаПоршневые кольца
-
2361-87124-0 Кольца поршневыеКольца поршневые
-
2361-00014-0 Piston ring, 0.5mm 0/sPiston ring, 0.5mm 0/s
-
2345-00014-0 Поршневые кольцаПоршневые кольца
-
3345-87122-0 Carburetor Rerair KitCarburetor Rerair Kit
-
3345-02011-0 Gasket carburetorGasket carburetor
-
3336-03293-0 O-Ring
DRAIN SCREWO-Ring
DRAIN SCREW -
3336-03222-0 O-Ring
FLOAT CHAMBERO-Ring
FLOAT CHAMBER -
3922503-6412 Stud BoltStud Bolt
-
3334-03231-1 FloatFloat
-
3334-03232-0 Hing pin floatHing pin float
-
33B7-03240-0 Float ValveFloat Valve
-
3345-03243-0 O-Ring
VALVE SEATO-Ring
VALVE SEAT -
3334-03242-0 Игольчатый клапанИгольчатый клапан
-
3344-03244-0 ClipClip
-
3346-03265-0 Stop ScrewStop Screw
-
3345-03266-0 Adjust ScrewAdjust Screw
-
4361-87121-1 Power Head Gasket SetPower Head Gasket Set
-
4345-01005-0 Gasket, Cyl. HeadGasket, Cyl. Head
-
4346-01032-0 New partNew part
-
4345-02305-0 Gasket exhaust coverGasket exhaust cover
-
4126-00121-0 Oil seal 30-45-8
UPPER SIDEOil seal 30-45-8
UPPER SIDE -
4345-00122-0 Oil seal, 25-55-10
LOWER SIDEOil seal, 25-55-10
LOWER SIDE -
4338-01403-0 O-Ring
MAGNETO BASEO-Ring
MAGNETO BASE -
4345-02104-0 Gasket a inlet manifoldGasket a inlet manifold
-
4345-02105-0 Gasket b inlet manifoldGasket b inlet manifold
-
4345-02011-0 Gasket carburetorGasket carburetor
-
4336-03293-0 O-Ring
DRAIN SCREWO-Ring
DRAIN SCREW -
4336-03222-0 O-Ring
FLOAT CHAMBERO-Ring
FLOAT CHAMBER -
4346-04901-0 Gasket fuel pumpGasket fuel pump
-
4346-02235-0 Gasket a
FUEL FILTERGasket a
FUEL FILTER -
4350-05136-0 O-Ring
STARTER HANDLEO-Ring
STARTER HANDLE -
4345-61012-0 Gasket, drive shaft housingGasket, drive shaft housing
-
4345-01303-0 Gasket engine baseGasket engine base
-
4345-01215-0 Oil seal 17-30-8
DRIVE SHAFTOil seal 17-30-8
DRIVE SHAFT -
5398S63003-0 Handle ass'yHandle ass'y
-
3M3S63005-0 Handle ass'yHandle ass'y
-
6361S63000-3 Handle kitHandle kit
-
6398S63003-0 Handle ass'yHandle ass'y
-
3M3S63005-0 Handle ass'yHandle ass'y
-
6346-63201-1 Bolt handle aBolt handle a
-
6345-63207-0 Collar, 9.8-12-7.5Collar, 9.8-12-7.5
-
6346-63064-0 Universal pinionUniversal pinion
-
6348-63061-0 Throttle shaft bThrottle shaft b
-
6951403-0414 Spring WasherSpring Washer
-
6346-63066-1 Collar, 15.9-17.1-9Collar, 15.9-17.1-9
-
6940103-0800 Washer -> 940113-0800
OR 940113-0800Washer -> 940113-0800
OR 940113-0800 -
6345-63063-0 Holder handle shaft bHolder handle shaft b
-
6910114-0630 BoltBolt
-
6940103-0600 Washer
OR 940113-0600Washer
OR 940113-0600 -
6345-66226-0 Grommet, 17-3Grommet, 17-3
-
6348-63715-0 Advancer link rodAdvancer link rod
-
6930106-0500 New partNew part
-
63B7-63733-0 Rod Snap, 5-3Rod Snap, 5-3
-
6346-05234-0 New partNew part
-
6361-83728-0 Cable PinCable Pin
-
6930106-0600 New partNew part
-
6353-83719-0 WasherWasher
-
6951603-0800 R-PinR-Pin
-
7361S87301-0 Lower unit ass'y s
FOR TRANSOMLower unit ass'y s
FOR TRANSOM -
7361S87302-0 Lower unit ass'y l
FOR TRANSOM LLower unit ass'y l
FOR TRANSOM L -
8345S87323-0 Propeller shaft housing ass'yPropeller shaft housing ass'y
-
9361-87322-0 ウォ-タ-ポンプリペアキットウォ-タ-ポンプリペアキット
-
9345-65021-0 Крыльчатка водной помпыКрыльчатка водной помпы
-
9332-65022-0 Key, pump impellerKey, pump impeller
-
9348-65011-0 Liner, pump caseLiner, pump case
-
9348-65025-0 Guide plate, water pumpGuide plate, water pump
-
9348-65029-1 Gasket, pump guide plateGasket, pump guide plate
-
9348-65018-0 Прокладка насосаПрокладка насоса
-
9910113-5652 New partNew part
-
10361-65231-0 Chrome Plated Water Pump KitChrome Plated Water Pump Kit
-
10345-65021-0 Крыльчатка водной помпыКрыльчатка водной помпы
-
10361-65238-0 Liner chrome plated water pump caseLiner chrome plated water pump case
-
10361-65239-0 Guide plate chrome plated water pumpGuide plate chrome plated water pump
-
10348-65029-1 Gasket, pump guide plateGasket, pump guide plate
-
10348-65018-0 Прокладка насосаПрокладка насоса
-
11361-87321-0 Lower Unit Gasket SetLower Unit Gasket Set
-
11332-60006-0 Gasket (8.1x15.1)Gasket (8.1x15.1)
-
11345-60103-0 O-Ring
PROPELLER SHAFTO-Ring
PROPELLER SHAFT -
11334-60223-0 Oil seal, 22-36-10
PROPELLER SHAFTOil seal, 22-36-10
PROPELLER SHAFT -
11332-60111-0 Oil seal. 17-33-9.5
PUMP CASE LOWEROil seal. 17-33-9.5
PUMP CASE LOWER -
11345-65015-0 O-Ring
PUMP CASE LOWERO-Ring
PUMP CASE LOWER -
11348-65029-1 Gasket, pump guide plateGasket, pump guide plate
-
11348-65018-0 Прокладка насосаПрокладка насоса
-
11345-66021-0 O-Ring
CAM RODO-Ring
CAM ROD -
11332-66032-0 O?????2.4-15.4
BUSHINGO?????2.4-15.4
BUSHING -
11301-66025-0 Gasket cam shaft bushing
BUSHING STOPPERGasket cam shaft bushing
BUSHING STOPPER -
12348S87314-0 Extension housing kit ulExtension housing kit ul
-
12345S61110-0 Extension housing ulExtension housing ul
-
12910113-5840 BoltBolt
-
12345-64303-0 Drive Shaft ULDrive Shaft UL
-
12345-65120-1 Water Pipe ULWater Pipe UL
-
12348-66014-0 Cam Rod ULCam Rod UL
-
13361S87801-1 Набор этикетокНабор этикеток
-
14346-76010-0 Stater motor ass'yStater motor ass'y
-
14916103-0830 BoltBolt
-
14345-06971-0 Clamp 9-12uClamp 9-12u
-
14930103-0800 Nut
OR 930113-0800Nut
OR 930113-0800 -
14941303-0800 Spring WasherSpring Washer
-
14346-76040-0 Starter SolenoidStarter Solenoid
-
14361-76055-0 Bracket choke solenoidBracket choke solenoid
-
14345-76081-0 Bracket neutral switchBracket neutral switch
-
14910103-0618 BoltBolt
-
14930113-0600 NutNut
-
14941303-0600 New partNew part
-
143G2-76060-0 Rectifier completeRectifier complete
-
143G2-76142-0 Ground cord
L=100Ground cord
L=100 -
14921503-0525 Stud BoltStud Bolt
-
14930103-0500 NutNut
-
14941303-0500 Spring WasherSpring Washer
-
14353-06281-0 Holder cable terminalHolder cable terminal
-
14353-06283-0 Collar 6.4-10-4.7Collar 6.4-10-4.7
-
14910103-0620 Bolt
OR 910113-0620Bolt
OR 910113-0620 -
14309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
14930103-0600 Nut
OR 930113-0600Nut
OR 930113-0600 -
14910103-0645 Bolt
OR 910103-6645Bolt
OR 910103-6645 -
14128-02605-1 Spacer,6-5-28.5Spacer,6-5-28.5
-
14910903-6616 BoltBolt
-
143B2-76062-0 Fuse wire ass'y
L=355Fuse wire ass'y
L=355 -
143B2-76120-0 Battery cable +/- (new style) 8.2 ft.
L=2000Battery cable +/- (new style) 8.2 ft.
L=2000 -
3V1-76120-2 Battery cable +/- (new style) 8.2 ft.Battery cable +/- (new style) 8.2 ft.
-
14334-76141-0 STARTER CORD
L=150STARTER CORD
L=150 -
14910103-0612 New part
OR 910113-0612New part
OR 910113-0612 -
143B2-76147-1 STARTER CORD
L=200STARTER CORD
L=200 -
143A3-76145-0 Cap Starter TerminalCap Starter Terminal
-
14336-76091-0 Band Battery CordBand Battery Cord
-
143B7-76145-0 Terminal CapTerminal Cap
-
14361-76050-0 Choke SolenoidChoke Solenoid
-
14346-76057-0 Hook choke solenoidHook choke solenoid
-
14951403-0312 Spring WasherSpring Washer
-
14346-76072-1 Rod choke shaftRod choke shaft
-
14930406-0400 Nylon NutNylon Nut
-
14921503-6408 Stud BoltStud Bolt
-
15361-76300-0 Electric starter kit (f)Electric starter kit (f)
-
15346-76010-0 Stater motor ass'yStater motor ass'y
-
15916103-0830 BoltBolt
-
15345-06971-0 Clamp 9-12uClamp 9-12u
-
15930103-0800 Nut
OR 930113-0800Nut
OR 930113-0800 -
15941303-0800 Spring WasherSpring Washer
-
15346-76040-0 Starter SolenoidStarter Solenoid
-
15361-76055-0 Bracket choke solenoidBracket choke solenoid
-
15361-76080-0 Нейтральный переключательНейтральный переключатель
-
153M4-76084-0 Spacer neutral switchSpacer neutral switch
-
153B7-63731-0 WasherWasher
-
15398-76083-0 Actuator Neutral SwitchActuator Neutral Switch
-
15361-76082-0 Plate neutral switchPlate neutral switch
-
15910103-0645 Bolt
OR 910103-6645Bolt
OR 910103-6645 -
15941303-0600 New part
OR 910103-6645New part
OR 910103-6645 -
15128-02605-1 Spacer,6-5-28.5Spacer,6-5-28.5
-
15910903-6616 BoltBolt
-
153B2-76062-0 Fuse wire ass'y
L=355Fuse wire ass'y
L=355 -
153B2-76120-0 Battery cable +/- (new style) 8.2 ft.
L=2000Battery cable +/- (new style) 8.2 ft.
L=2000 -
3V1-76120-2 Battery cable +/- (new style) 8.2 ft.Battery cable +/- (new style) 8.2 ft.
-
15334-76141-0 STARTER CORD
L=150STARTER CORD
L=150 -
15910103-0612 New part
OR 910113-0612New part
OR 910113-0612 -
153B2-76147-1 STARTER CORD
L=200STARTER CORD
L=200 -
153A3-76145-0 Cap Starter TerminalCap Starter Terminal
-
15336-76091-0 Band Battery CordBand Battery Cord
-
153B7-76145-0 Terminal CapTerminal Cap
-
15361-76026-0 Main Switch Ass'yMain Switch Ass'y
-
15345-76081-0 Bracket neutral switchBracket neutral switch
-
15910103-0618 BoltBolt
-
15930113-0600 NutNut
-
153G2-76060-0 Rectifier completeRectifier complete
-
153G2-76142-0 Ground cord
L=100Ground cord
L=100 -
15921503-0525 Stud BoltStud Bolt
-
15930103-0500 NutNut
-
15941303-0500 Spring WasherSpring Washer
-
15353-06281-0 Holder cable terminalHolder cable terminal
-
15353-06283-0 Collar 6.4-10-4.7Collar 6.4-10-4.7
-
15910103-0620 BoltBolt
-
15309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
