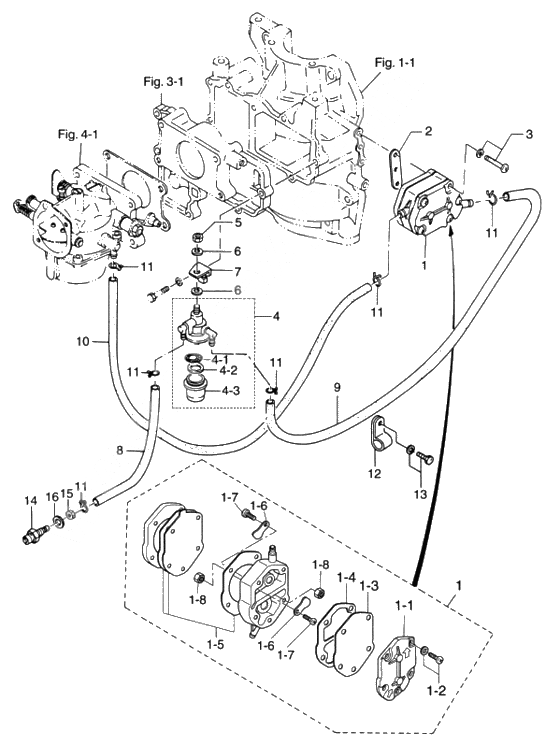

Fuel pump для Tohatsu M40C - 2004 года выпуска
-
№АртикулНазвание
-
1356-04000-1 New partNew part
-
1-1334-04004-0 Fuel CoverFuel Cover
-
1-2922512-6528 Stud BoltStud Bolt
-
1-3334-04005-0 New partNew part
-
1-4334-04007-0 Gasket B DiaphragmGasket B Diaphragm
-
1-5356-04030-0 New partNew part
-
1-6356-04044-0 Check ValveCheck Valve
-
1-7921722-0306 Stud BoltStud Bolt
-
1-8930222-0300 NutNut
-
2346-04901-0 Gasket fuel pumpGasket fuel pump
-
3921503-6640 Stud BoltStud Bolt
-
4346-02230-0 Fuel Filter Ass'yFuel Filter Ass'y
-
4-1346-02234-0 FilterFilter
-
4-2346-02235-0 Gasket aGasket a
-
4-3346-02237-0 Filter cupFilter cup
-
5930113-0800 Nut
OR 930106-0800Nut
OR 930106-0800 -
6940113-0800 WasherWasher
-
7348-02231-0 Plate fuel filterPlate fuel filter
-
898AB-5-0160 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
998AB-5-0270 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
1098AB-5-0210 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
11338-02215-0 ClipClip
-
12336-06973-0 Clamp Lead WireClamp Lead Wire
-
13910113-5612 BoltBolt
-
143B2-70260-1 New partNew part
-
15332-70261-0 Nut Fuel Connector BNut Fuel Connector B
-
16336-70112-0 Gasket 10.2-16-0.5Gasket 10.2-16-0.5
-
1356-04000-1 Fuel PumpFuel Pump
-
1-1334-04004-0 * Pump Cover* Pump Cover
-
1-2922512-6528 * Screw* Screw
-
1-3334-04005-0 * Diaphragm* Diaphragm
-
1-4334-04007-0 * Gasket "B"，Diaphragm* Gasket "B"，Diaphragm
-
1-5356-04030-0 * Diaphragm Set* Diaphragm Set
-
1-6356-04044-0 * Check Valve* Check Valve
-
1-7921722-0306 * Screw* Screw
-
1-8930222-0300 * Nut* Nut
-
2346-04901-0 Gasket, Fuel PumpGasket, Fuel Pump
-
3921503-6640 ScrewScrew
-
4346-02230-0 Fuel FilterFuel Filter
-
4-1346-02234-0 * Filter* Filter
-
4-2346-02235-0 * Gasket* Gasket
-
4-3346-02237-0 * Cup* Cup
-
5930113-0800 Nut
or 930106-0800Nut
or 930106-0800 -
6940113-0800 WasherWasher
-
7348-02231-0 Plate, Fuel FilterPlate, Fuel Filter
-
898AB-5-0160 Fuel PipeFuel Pipe
-
998AB-5-0270 Fuel PipeFuel Pipe
-
1098AB-5-0210 Fuel PipeFuel Pipe
-
11338-02215-0 Clip, 010Clip, 010
-
12336-06973-0 Clamp, 6-9.5LClamp, 6-9.5L
-
13910113-5612 BoltBolt
-
143B2-70260-1 Fuel Connector (Engine, Male)Fuel Connector (Engine, Male)
-
15332-70261-0 Nut, 10-P1.25Nut, 10-P1.25
-
16336-70112-0 Gasket, 10.2-16-0.5Gasket, 10.2-16-0.5
