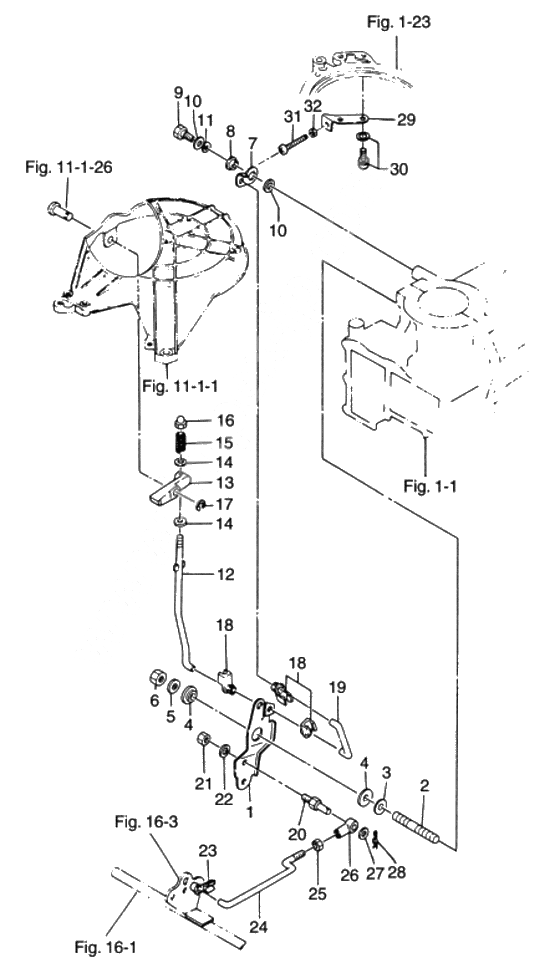

Starter lock для Tohatsu M40C - 2004 года выпуска
-
№АртикулНазвание
-
1361-05211-0 Lock arm starterLock arm starter
-
2915314-0825 Stud BoltStud Bolt
-
3345-01015-0 WasherWasher
-
4345-63713-0 BushingBushing
-
5940113-0800 WasherWasher
-
6930406-0800 Nylon NutNylon Nut
-
7345-05213-0 Stop arm throttleStop arm throttle
-
8346-63721-0 BushingBushing
-
9910114-0620 BoltBolt
-
10940113-0600 WasherWasher
-
11941403-1000 WasherWasher
-
12345-05217-1 Rod starter lockRod starter lock
-
13345-05226-0 Starter lock leverStarter lock lever
-
14940103-0400 WasherWasher
-
15345-05216-0 Starter lock springStarter lock spring
-
16346-05209-0 Cap starter lock rodCap starter lock rod
-
17945303-0600 E-RingE-Ring
-
18345-05223-1 Rod Snap,3.5-2Rod Snap,3.5-2
-
19345-05221-1 Rod throttle stop armRod throttle stop arm
-
20353-83728-0 Cable PinCable Pin
-
353-83728-1 Cable PinCable Pin
-
21930106-0600 New partNew part
-
22941303-0600 New partNew part
-
23345-05224-0 Rod snap,5-2.5Rod snap,5-2.5
-
24345-05222-1 Rod starter lock armRod starter lock arm
-
25930106-0500 New partNew part
-
26346-05234-0 New partNew part
-
27353-83719-0 WasherWasher
-
28951603-0800 R-PinR-Pin
-
29348-05233-0 Plate - nlaPlate - nla
-
30921521-6510 Stud BoltStud Bolt
-
31921503-0530 Stud BoltStud Bolt
-
32930106-0500 New partNew part
-
1361-05211-0 Lock Arm, StarterLock Arm, Starter
-
2915314-0825 Stud BoltStud Bolt
-
3345-01015-0 Washer, 8.5-19.5-3.2Washer, 8.5-19.5-3.2
-
4345-63713-0 Bushing, 8-14-4Bushing, 8-14-4
-
5940113-0800 WasherWasher
-
6930406-0800 Nylon Nut, 8P-1.25Nylon Nut, 8P-1.25
-
7345-05213-0 Stop Arm, ThrottleStop Arm, Throttle
-
8346-63721-0 Bushing, 6.2-16-5Bushing, 6.2-16-5
-
9910114-0620 BoltBolt
-
10940113-0600 WasherWasher
-
11941403-1000 Wave WasherWave Washer
-
12345-05217-1 Rod, Starter LockRod, Starter Lock
-
13345-05226-0 Lever, Starter LockLever, Starter Lock
-
14940103-0400 WasherWasher
-
15345-05216-0 Spring, Starter LockSpring, Starter Lock
-
16346-05209-0 Cap, Starter Lock LeverCap, Starter Lock Lever
-
17945303-0600 E-Ring, d=6E-Ring, d=6
-
18345-05223-1 Rod Snap, 3.5-2Rod Snap, 3.5-2
-
19345-05221-1 Rod, Throttle Stop ArmRod, Throttle Stop Arm
-
20353-83728-0 Pin, Rod JointPin, Rod Joint
-
21930106-0600 NutNut
-
22941303-0600 Spring WasherSpring Washer
-
23345-05224-0 Rod Snap, 5-2.5Rod Snap, 5-2.5
-
24345-05222-1 Link, Starter Lock ArmLink, Starter Lock Arm
-
25930106-0500 NutNut
-
26346-05234-0 Ø 5 Rod JointØ 5 Rod Joint
-
27353-83719-0 Washer, 8.57 8T.6Washer, 8.57 8T.6
-
28951603-0800 R-Pin, d —8R-Pin, d —8
-
29348-05233-0 Plate, Throttle AdjustPlate, Throttle Adjust
-
30921521-6510 ScrewScrew
-
31921503-0530 ScrewScrew
-
32930106-0500 NutNut
