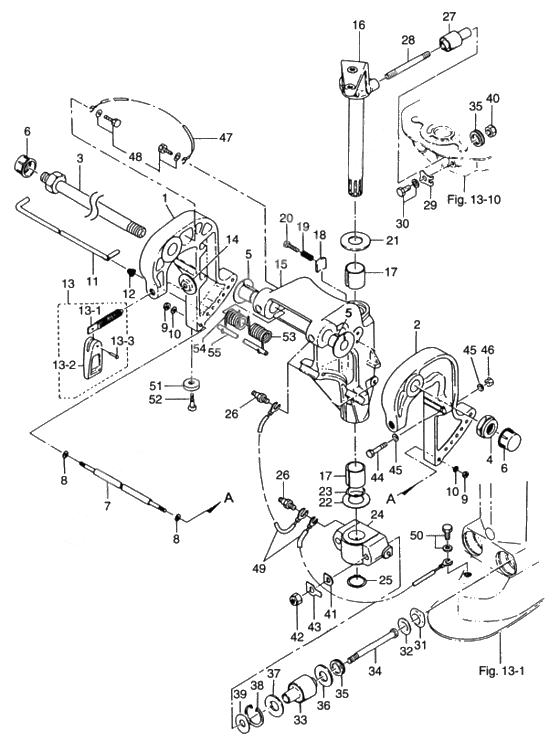

Bracket для Tohatsu M40C - 2004 года выпуска
-
№АртикулНазвание
-
1349S62112-0 Stern braket r
STARBOARDStern braket r
STARBOARD -
2349S62113-0 Stern braket l
PORTStern braket l
PORT -
3346-62191-0 Bracket Bolt Ass'yBracket Bolt Ass'y
-
4346-62124-0 Bracket Nut(Nylon)Bracket Nut(Nylon)
-
5349-62126-0 Bushing, Bracket BoltBushing, Bracket Bolt
-
6346-62127-0 Cap,Bracket BoltCap,Bracket Bolt
-
7346-62117-1 Distance PieceDistance Piece
-
8940113-0600 WasherWasher
-
9930113-0600 NutNut
-
10940113-0600 WasherWasher
-
11345-62121-1 Thrust RodThrust Rod
-
12345-62122-2 Spring Thrust RodSpring Thrust Rod
-
13398S62100-0 Clamp Screw Ass'yClamp Screw Ass'y
-
13-1398-62103-0 Винт струбциныВинт струбцины
-
13-2332S62102-1 Handle clamp screwHandle clamp screw
-
13-33C8-62104-1 Rivet3-22Rivet3-22
-
14332-62101-0 Pad clamp screwPad clamp screw
-
15349S62310-2 Поворотный кронштейн
# 95605~Поворотный кронштейн
# 95605~ -
16348S62010-0 Steering shaft ass'ySteering shaft ass'y
-
17345-62417-0 Bushing Steering ShaftBushing Steering Shaft
-
18345-62441-0 Friction PlateFriction Plate
-
19346-62421-1 Spring Friction PlateSpring Friction Plate
-
20910103-0830 New part
OR 910113-0830New part
OR 910113-0830 -
213A0-62423-2 Upper Thrust PlateUpper Thrust Plate
-
22346-62424-1 Trust Plate LowerTrust Plate Lower
-
24348S61411-2 Mount bracketMount bracket
-
25945103-2500 ClipClip
-
26344-67177-0 МасленкаМасленка
-
27345-61301-0 Rubber mount aRubber mount a
-
28345-61313-0 Stud bolt rubberStud bolt rubber
-
29345-61312-0 Retainer mount rubberRetainer mount rubber
-
30910113-5820 BoltBolt
-
31345-61331-0 Damper capDamper cap
-
32345-61332-0 Damper collar
ø 20- ø 31.7-3MMDamper collar
ø 20- ø 31.7-3MM -
33345-61302-0 Rubber mount bRubber mount b
-
34345-61321-2 Recoil starter ass'yRecoil starter ass'y
-
35345-61333-0 Damper plateDamper plate
-
36345-61334-0 Lock Plate
ø 21- ø 40.3-4MMLock Plate
ø 21- ø 40.3-4MM -
37348-61309-0 Shim mount rubber lowerShim mount rubber lower
-
38945003-4000 C-RingC-Ring
-
39940113-1000 WasherWasher
-
40930403-1000 Nylon NutNylon Nut
-
41345-61322-2 Washer Rubber Mount BWasher Rubber Mount B
-
42930103-1000 NutNut
-
43346-61323-0 Lock plate mount rubberLock plate mount rubber
-
44916113-0885 BoltBolt
-
45940113-0800 WasherWasher
-
46930113-0800 NutNut
-
473C8-62158-0 Ground Wire
L=130Ground Wire
L=130 -
48910113-5612 BoltBolt
-
493A3-62396-0 New part
L=110New part
L=110 -
50910113-5610 BoltBolt
-
51338-60218-2 New partNew part
-
52910113-5620 BoltBolt
-
53348-62141-0 Spring r tilt assistant
FOR TRANSOM ULSpring r tilt assistant
FOR TRANSOM UL -
54348-62142-0 Spring l tilt assistant
FOR TRANSOM ULSpring l tilt assistant
FOR TRANSOM UL -
55348-62143-0 Shaft Tilt Assistant
FOR TRANSOM ULShaft Tilt Assistant
FOR TRANSOM UL -
1349S62112-0 Stern Bracket (Right)
StarboardStern Bracket (Right)
Starboard -
2349S62113-0 Stern Bracket (Left)
PortStern Bracket (Left)
Port -
3346-62191-0 Bracket BoltBracket Bolt
-
4346-62124-0 Nylon Nut, 7/8Nylon Nut, 7/8
-
5349-62126-0 Bushing, Bracket BoltBushing, Bracket Bolt
-
6346-62127-0 CapCap
-
7346-62117-1 Distance PieceDistance Piece
-
8940113-0600 WasherWasher
-
9930113-0600 NutNut
-
10940113-0600 WasherWasher
-
11345-62121-1 Thrust RodThrust Rod
-
12345-62122-2 Spring, Thrust RodSpring, Thrust Rod
-
13398S62100-0 Clamp Screw Ass'yClamp Screw Ass'y
-
13-1398-62103-0 * Clamp Screw* Clamp Screw
-
13-2332S62102-1 * Handle, Clamp Screw* Handle, Clamp Screw
-
13-33C8-62104-1 * Rivet, 3~22* Rivet, 3~22
-
14332-62101-0 Pad, Clamp ScrewPad, Clamp Screw
-
15349S62310-2 Swivel Bracket
# 95605〜Swivel Bracket
# 95605〜 -
16348S62010-0 Steering ShaftSteering Shaft
-
17345-62417-0 Bushing, 26~32Bushing, 26~32
-
18345-62441-0 Friction Plate, BracketFriction Plate, Bracket
-
19346-62421-1 Spring, Friction PlateSpring, Friction Plate
-
20910103-0830 Bolt
or 910113-0830Bolt
or 910113-0830 -
213A0-62423-2 Thrust Plate, 27-50TThrust Plate, 27-50T
-
22346-62424-1 Thrust Plate, 26.5-46-1Thrust Plate, 26.5-46-1
-
23345-62415-0 O-Ring, 3.5-25.7O-Ring, 3.5-25.7
-
24348S61411-2 Mount BracketMount Bracket
-
25945103-2500 C-Ring, d二25C-Ring, d二25
-
26344-67177-0 Grease NippleGrease Nipple
-
27345-61301-0 Rubber Mount (Upper)Rubber Mount (Upper)
-
28345-61313-0 Stud Bolt, Rubber Mount (lipper)Stud Bolt, Rubber Mount (lipper)
-
29345-61312-0 Retainer, Rubber MountRetainer, Rubber Mount
-
30910113-5820 BoltBolt
-
31345-61331-0 Damper CapDamper Cap
-
32345-61332-0 Damper Collar
Ø 2〇- Ø 31.7~3ттDamper Collar
Ø 2〇- Ø 31.7~3тт -
33345-61302-0 Rubber Mount (Lower)Rubber Mount (Lower)
-
34345-61321-2 Bolt, Rubber Mount (Lower)Bolt, Rubber Mount (Lower)
-
35345-61333-0 Damper PlateDamper Plate
-
36345-61334-0 Lock Plate Lower
Ø2\-Ø 40.3_4mmLock Plate Lower
Ø2\-Ø 40.3_4mm -
37348-61309-0 Shim, 33-40.7-0.5Shim, 33-40.7-0.5
-
38945003-4000 C-Ring, d二40C-Ring, d二40
-
39940113-1000 WasherWasher
-
40930403-1000 Nylon NutNylon Nut
-
41345-61322-2 Washer, Rubber Mount (Lower)Washer, Rubber Mount (Lower)
-
42930103-1000 NutNut
-
43346-61323-0 Lock Plate, Rubber MountLock Plate, Rubber Mount
-
44916113-0885 BoltBolt
-
45940113-0800 WasherWasher
-
46930113-0800 NutNut
-
473C8-62158-0 Ground Cable
L二130Ground Cable
L二130 -
48910113-5612 BoltBolt
-
493A3-62396-0 Ground Cable
L二110Ground Cable
L二110 -
50910113-5610 BoltBolt
-
51338-60218-2 AnodeAnode
-
52910113-5620 BoltBolt
-
53348-62141-0 Spring “L”，Tilt Assistant
for Transom "UL"Spring “L”，Tilt Assistant
for Transom "UL" -
54348-62142-0 Spring "R", Tilt Assistant
for Transom "UL"Spring "R", Tilt Assistant
for Transom "UL" -
55348-62143-0 Shaft, Tilt Assistant
for Transom "UL"Shaft, Tilt Assistant
for Transom "UL"
