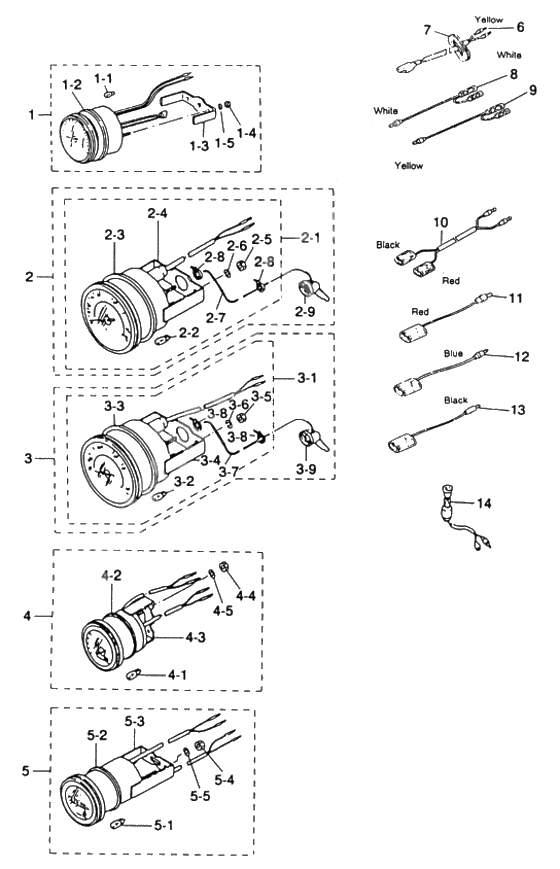

Optional parts - meter для Tohatsu M40C - 2004 года выпуска
-
№АртикулНазвание
-
13B7-72530-1 Tachometer Ass'yTachometer Ass'y
-
1-13B7-72659-0 Bulb, Meter 12V-1.7WBulb, Meter 12V-1.7W
-
1-23B7-72656-0 Damper, MeterDamper, Meter
-
1-33B7-72661-0 Plate, FittingPlate, Fitting
-
1-4930203-0500 NutNut
-
1-5941303-0500 Spring WasherSpring Washer
-
23E0-72644-0 Speedometer 75mph KitSpeedometer 75mph Kit
-
2-13E0-72649-0 Speedometer 75mph Kit BSpeedometer 75mph Kit B
-
2-23B7-72659-0 Bulb, Meter 12V-1.7WBulb, Meter 12V-1.7W
-
2-33B7-72656-0 Damper, MeterDamper, Meter
-
2-43B7-72661-0 Plate, FittingPlate, Fitting
-
2-5930203-0500 NutNut
-
2-6941303-0500 Spring WasherSpring Washer
-
2-73B7-72650-0 Tube, Speedometer 6000mmTube, Speedometer 6000mm
-
2-83B7-72651-0 Band, SpeedometerBand, Speedometer
-
2-93B7-72643-0 Speedometer SenderSpeedometer Sender
-
33E0-72522-0 Speedometer 50mph KitSpeedometer 50mph Kit
-
3-13E0-72648-0 Speedometer 50mph Kit BSpeedometer 50mph Kit B
-
3-23B7-72659-0 Bulb, Meter 12V-1.7WBulb, Meter 12V-1.7W
-
3-33B7-72656-0 Damper, MeterDamper, Meter
-
3-43B7-72661-0 Plate, FittingPlate, Fitting
-
3-5930203-0500 NutNut
-
3-6941303-0500 Spring WasherSpring Washer
-
3-73B7-72650-0 Tube, Speedometer 6000mmTube, Speedometer 6000mm
-
3-83B7-72651-0 Band, SpeedometerBand, Speedometer
-
3-93B7-72643-0 Speedometer SenderSpeedometer Sender
-
43E0-72529-0 Voltmeter Ass'yVoltmeter Ass'y
-
4-13B7-72651-0 Band, SpeedometerBand, Speedometer
-
4-23B7-72655-0 Damper, MeterDamper, Meter
-
4-33B7-72662-0 Plate, FittingPlate, Fitting
-
4-4930203-0400 NutNut
-
4-5941303-0400 Spring WasherSpring Washer
-
53E0-72524-0 Hourmeter Ass'yHourmeter Ass'y
-
5-13B7-72657-0 Bulb, Meter 12V-1.7WBulb, Meter 12V-1.7W
-
5-23B7-72655-0 Damper, MeterDamper, Meter
-
5-33B7-72664-0 Plate FittingPlate Fitting
-
5-4930203-0400 NutNut
-
5-5941303-0400 Spring WasherSpring Washer
-
6361-72539-0 Lead Wire Tachometer
L=6000Lead Wire Tachometer
L=6000 -
7345-67169-0 Grommet lighting cordGrommet lighting cord
-
8361-72542-0 Separate cord(white)Separate cord(white)
-
9361-72543-0 Separate cord(yellow)Separate cord(yellow)
-
10353-72537-0 Meter Lead WireMeter Lead Wire
-
11353-72546-0 Assist Cord(Red)
L=200Assist Cord(Red)
L=200 -
12353-72547-0 Assist Cord(blue)
L=200Assist Cord(blue)
L=200 -
13353-72548-0 Assist Cord(black)
L=200Assist Cord(black)
L=200 -
14353-72521-1 Switch Meter LampSwitch Meter Lamp
