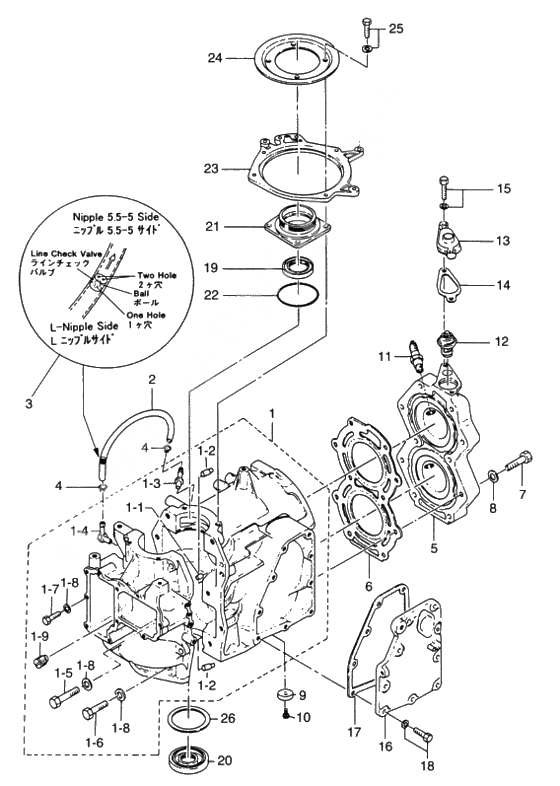

Cylinder - crank case для Tohatsu M40C - 2004 года выпуска
-
№АртикулНазвание
-
1361B01100-2 Cylinder & Crank Case Ass'y
# 98033~Cylinder & Crank Case Ass'y
# 98033~ -
1-1345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
1-2345-00117-0 Dowel PinDowel Pin
-
1-3393-01131-0 Drain nipple
# 98033~Drain nipple
# 98033~ -
1-4393-01137-0 Drain nipple
# 98033~Drain nipple
# 98033~ -
1-43B2-01160-0 Check valve nipple assy
~# 98032Check valve nipple assy
~# 98032 -
1-5916129-0850 BoltBolt
-
1-6916124-0840 BoltBolt
-
1-7916114-0835 BoltBolt
-
1-8940121-0800 WasherWasher
-
1-9345-01150-1 Check valve b ass'yCheck valve b ass'y
-
3393-01160-0 Check Valve
# 98033~Check Valve
# 98033~ -
43T5-01133-0 Clip
# 98033~Clip
# 98033~ -
5361B01001-1 Головка цилиндров
# 94364~Головка цилиндров
# 94364~ -
6345-01005-0 Gasket, Cyl. HeadGasket, Cyl. Head
-
7916119-0845 BoltBolt
-
8345-01015-0 WasherWasher
-
9338-60218-2 New partNew part
-
10910103-0616 BoltBolt
-
119701-0-1005 9701-1-1005
NGK BP7HS-109701-1-1005
NGK BP7HS-10 -
12345-01030-0 サーモスタットサーモスタット
-
14346-01032-0 New partNew part
-
15910114-5630 Bolt
# 96838~Bolt
# 96838~ -
16345B02301-2 Exhaust CoverExhaust Cover
-
17345-02305-0 Gasket exhaust coverGasket exhaust cover
-
18910114-5620 BoltBolt
-
19126-00121-0 Oil seal 30-45-8Oil seal 30-45-8
-
20345-00122-0 Oil seal, 25-55-10Oil seal, 25-55-10
-
21345-01401-0 Agneto baseAgneto base
-
22338-01403-0 O-RingO-Ring
-
23353-63723-1 Комплект колецКомплект колец
-
24346-63722-2 Guide PlateGuide Plate
-
25910121-6620 BoltBolt
-
26345-00125-0 Retainer 50-60-1.6Retainer 50-60-1.6
