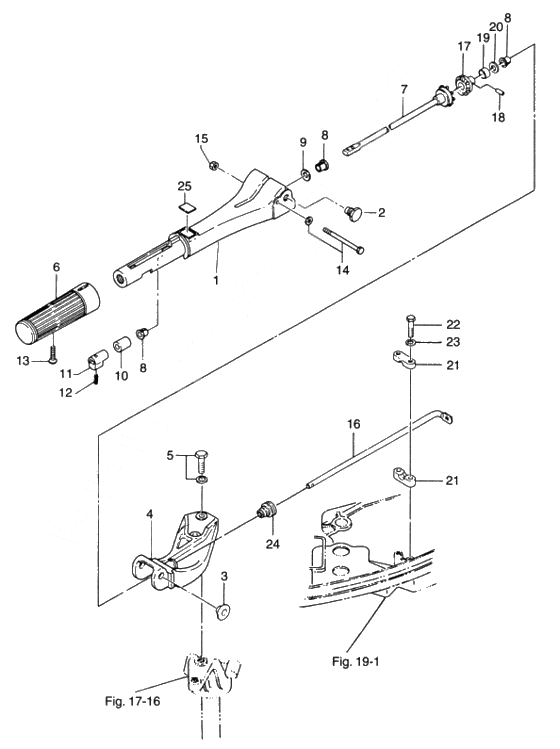

Tiller handle для Tohatsu M40C - 2004 года выпуска
-
№АртикулНазвание
-
1398S63011-0 Handle aHandle a
-
2346-63201-1 Bolt handle aBolt handle a
-
3345-63207-0 Collar, 9.8-12-7.5Collar, 9.8-12-7.5
-
4345S63051-0 Handle bHandle b
-
5910113-5825 BoltBolt
-
6398-63012-0 GripGrip
-
7398-63041-0 Ось дросселяОсь дросселя
-
8350-63046-0 BushingBushing
-
9941403-1000 WasherWasher
-
10345-63048-0 Rubber Throttle Shaft ARubber Throttle Shaft A
-
11398-63053-0 Spacer Throttle ShaftSpacer Throttle Shaft
-
12951403-0310 New partNew part
-
13921803-0525 Stud BoltStud Bolt
-
15930403-0600 Nylon NutNylon Nut
-
16348-63061-0 Throttle shaft bThrottle shaft b
-
17346-63064-0 Universal pinionUniversal pinion
-
18951403-0414 Spring WasherSpring Washer
-
19346-63066-1 Collar, 15.9-17.1-9Collar, 15.9-17.1-9
-
20940113-0800 WasherWasher
-
21345-63063-0 Holder handle shaft bHolder handle shaft b
-
22910114-0630 BoltBolt
-
23940113-0600 WasherWasher
-
24345-66226-0 Grommet, 17-3Grommet, 17-3
-
25369-72019-1 Lable throttleLable throttle
-
1398S63011-0 Steering HandleSteering Handle
-
2346-63201-1 BoltBolt
-
3345-63207-0 Collar, 9.8-12-7.5Collar, 9.8-12-7.5
-
4345S63051-0 Handle “B”Handle “B”
-
5910113-5825 BoltBolt
-
6398-63012-0 GripGrip
-
7398-63041-0 Throttle Shaft “A”Throttle Shaft “A”
-
8350-63046-0 Bushing, 8.4-10-11Bushing, 8.4-10-11
-
9941403-1000 Wave Washer, d二10Wave Washer, d二10
-
10345-63048-0 Rubber, Throttle Shaft "A"Rubber, Throttle Shaft "A"
-
11398-63053-0 Spacer, Throttle ShaftSpacer, Throttle Shaft
-
12951403-0310 Spring Pin, 3-10Spring Pin, 3-10
-
13921803-0525 ScrewScrew
-
14910113-5675 BoltBolt
-
15930403-0600 Nylon Nut, 6P-1.0Nylon Nut, 6P-1.0
-
16348-63061-0 Throttle Shaft “B”Throttle Shaft “B”
-
17346-63064-0 Universal PinionUniversal Pinion
-
18951403-0414 Spring Pin, 4-14Spring Pin, 4-14
-
19346-63066-1 Collar, 15.9-17.1-9Collar, 15.9-17.1-9
-
20940113-0800 WasherWasher
-
21345-63063-0 Supporter, Throttle Shaft "B"Supporter, Throttle Shaft "B"
-
22910114-0630 BoltBolt
-
23940113-0600 WasherWasher
-
24345-66226-0 Grommet, Throttle ShaftGrommet, Throttle Shaft
-
25369-72019-1 Label, ThrottleLabel, Throttle
