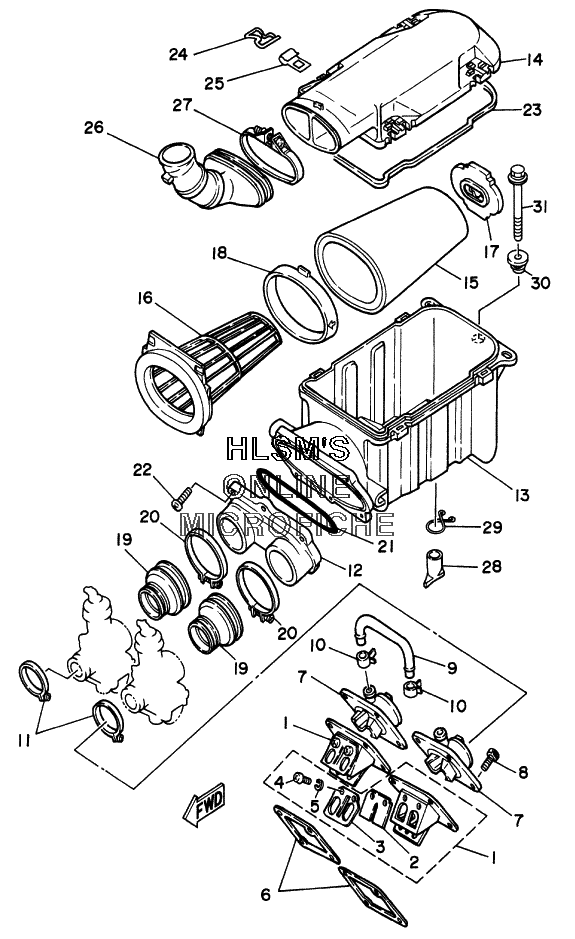

AIR CLEANER W/INTAKE для Yamaha BANSHEE YFZ350N (5FKA) - 2001 года выпуска
-
№АртикулНазвание
-
12GU-13610-01-00 REED VALVE ASSYREED VALVE ASSY
-
22GU-13613-00-00 ...REED, VALVE...REED, VALVE
-
32GU-13616-00-00 ...STOPPER, REED VALVE...STOPPER, REED VALVE
-
498507-03008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
592907-03100-00 ...WASHER...WASHER
-
63GG-13621-00-00 GASKET, VALVE SEATGASKET, VALVE SEAT
-
731K-13565-01-00 JOINT, CARBURETORJOINT, CARBURETOR
-
891317-06025-00 BOLTBOLT
-
929L-14465-00-00 PIPEPIPE
-
1090467-20085-00 CLIPCLIP
-
1190450-44046-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
122GU-14411-00-00 CASE, AIR CLEANERCASE, AIR CLEANER
-
132GU-14421-00-00 CASE, AIR CLEANERCASE, AIR CLEANER
-
142GU-14412-00-00 CAP, CLEANER CASECAP, CLEANER CASE
-
152GU-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
162GU-14458-00-00 GUIDEGUIDE
-
172GU-14468-00-00 PLATE, ELEMENT FITTINGPLATE, ELEMENT FITTING
-
182GU-14459-00-00 HOLDER, GUIDEHOLDER, GUIDE
-
1929L-14453-01-00 JOINT, AIR CLEANERJOINT, AIR CLEANER
-
2090460-68230-00 CLAMP, HOSECLAMP, HOSE
-
2112R-14452-00-00 SEALSEAL
-
2297707-50525-00 SCREW, TAPPINGSCREW, TAPPING
-
2329L-14452-00-00 SEALSEAL
-
2490465-18312-00 CLAMPCLAMP
-
2590468-05184-00 CLIPCLIP
-
262GU-14437-00-00 DUCTDUCT
-
2790460-99291-00 CLAMP, HOSECLAMP, HOSE
-
2859V-14457-00-00 SEALSEAL
-
2990467-22080-00 CLIPCLIP
-
3090480-18171-00 GROMMETGROMMET
-
3190119-06096-00 BOLT, WITH WASHERBOLT, WITH WASHER
