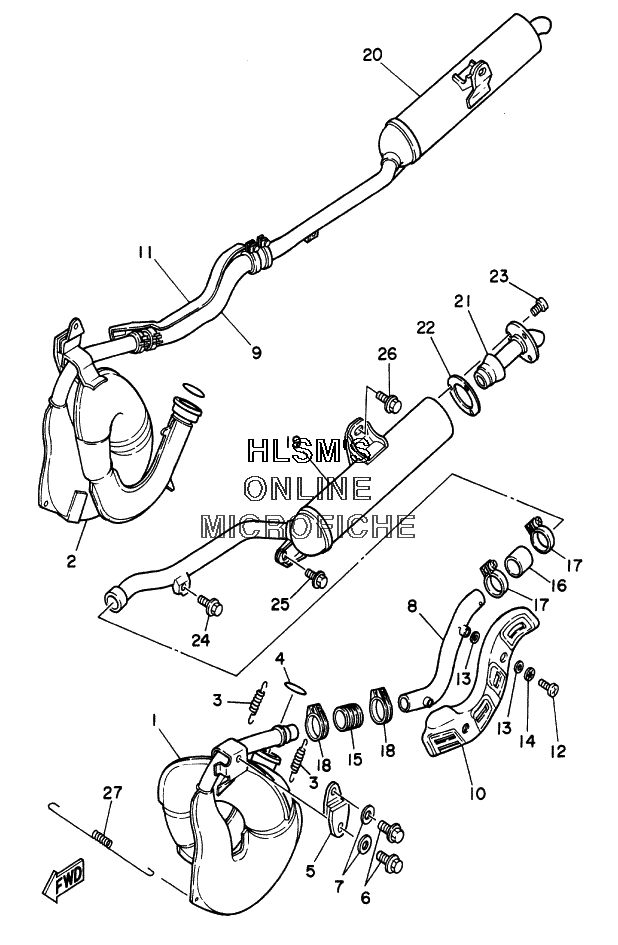

EXHAUST для Yamaha BANSHEE YFZ350N (5FKA) - 2001 года выпуска
-
№АртикулНазвание
-
12GU-14610-00-00 EXHAUST PIPE ASSYEXHAUST PIPE ASSY
-
22GU-14620-00-00 EXHAUST PIPE ASSYEXHAUST PIPE ASSY
-
390507-20030-00 SPRING, TENSIONSPRING, TENSION
-
493210-45742-00 O-RINGO-RING
-
52GU-14771-00-00 STAY, MUFFLERSTAY, MUFFLER
-
695817-08014-00 BOLT, FLANGEBOLT, FLANGE
-
790201-08326-00 WASHER, PLATEWASHER, PLATE
-
82GU-14635-00-00 JOINT, EXHAUSTJOINT, EXHAUST
-
92GU-14645-00-00 JOINT, EXHAUSTJOINT, EXHAUST
-
102GU-14718-00-00 PROTECTOR, MUFFLERPROTECTOR, MUFFLER
-
112GU-14728-00-00 PROTECTOR, MUFFLERPROTECTOR, MUFFLER
-
1298907-06010-00 SCREW, BINDSCREW, BIND
-
134BD-14766-00-00 WASHER, PROTECTORWASHER, PROTECTOR
-
1490206-06090-00 WASHER, WAVEWASHER, WAVE
-
151W2-14714-00-00 GASKET, MUFFLERGASKET, MUFFLER
-
162GU-14615-00-00 JOINT, EXHAUSTJOINT, EXHAUST
-
1790460-37026-00 CLAMP, HOSECLAMP, HOSE
-
1890460-37026-00 CLAMP, HOSECLAMP, HOSE
-
192GU-14753-01-00 SILENCER, EXHAUSTSILENCER, EXHAUST
-
202GU-14765-01-00 SILENCERSILENCER
-
212GU-14752-00-00 PIPE, OUTLETPIPE, OUTLET
-
222GU-14613-10-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
2398907-06010-00 SCREW, BINDSCREW, BIND
-
2495817-08014-00 BOLT, FLANGEBOLT, FLANGE
-
2595817-08014-00 BOLT, FLANGEBOLT, FLANGE
-
2695817-08014-00 BOLT, FLANGEBOLT, FLANGE
-
2790506-18398-00 SPRING, TENSIONSPRING, TENSION
