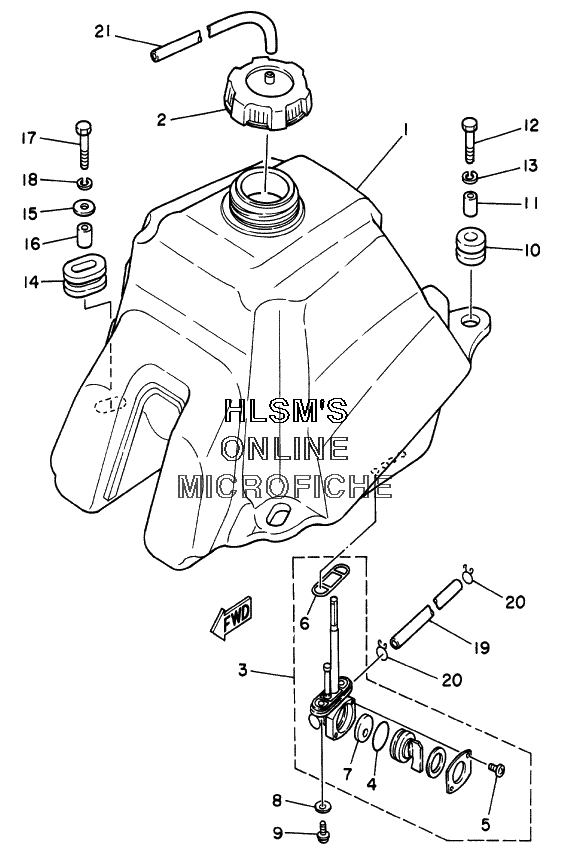

FUEL TANK для Yamaha BANSHEE YFZ350N (5FKA) - 2001 года выпуска
-
№АртикулНазвание
-
12GU-24110-00-00 FUEL TANK COMP.FUEL TANK COMP.
-
21UY-24610-00-00 CAP ASSYCAP ASSY
-
32GU-24500-01-00 FUEL COCK ASSYFUEL COCK ASSY
-
43AJ-24534-00-00 ...SEAL, COCK...SEAL, COCK
-
597801-03008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
64X8-24512-00-00 ...O-RING...O-RING
-
73AJ-24523-00-00 ...VALVE PACKING...VALVE PACKING
-
890202-05193-00 WASHER, PLATEWASHER, PLATE
-
990149-06011-00 SCREWSCREW
-
1090480-18290-00 GROMMETGROMMET
-
1190387-066J1-00 COLLARCOLLAR
-
1297027-06030-00 BOLTBOLT
-
1392907-06100-00 WASHER, SPRINGWASHER, SPRING
-
1490480-01400-00 GROMMETGROMMET
-
1590201-060L5-00 WASHER, PLATEWASHER, PLATE
-
1690387-07598-00 COLLARCOLLAR
-
1797027-06030-00 BOLTBOLT
-
1892907-06100-00 WASHER, SPRINGWASHER, SPRING
-
1990445-13693-00 HOSE (L166)HOSE (L166)
-
2090467-11106-00 CLIPCLIP
-
2190445-084J1-00 HOSE (L420)HOSE (L420)
