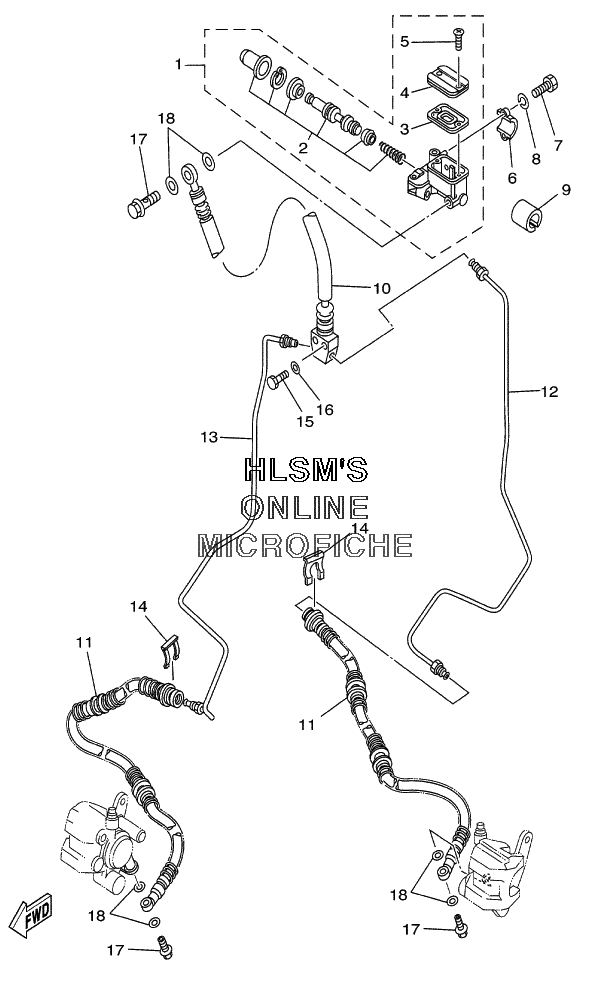

BRAKE - FRONT MASTER CYLINDER для Yamaha BANSHEE YFZ350N (5FKA) - 2001 года выпуска
-
№АртикулНазвание
-
12GU-25870-00-00 MASTER CYLINDER SUB ASSYMASTER CYLINDER SUB ASSY
-
24H7-W0041-50-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
34L0-25854-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
44H7-25852-00-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
598706-04012-00 ...SCREW, FLAT HEAD...SCREW, FLAT HEAD
-
656A-25867-00-00 BRACKET, MASTER CYLINDERBRACKET, MASTER CYLINDER
-
797007-06025-00 BOLTBOLT
-
892907-06600-00 WASHER, PLATEWASHER, PLATE
-
91UY-26259-00-00 COLLARCOLLAR
-
102GU-25872-02-00 HOSE, BRAKEHOSE, BRAKE
-
113GG-25873-11-00 HOSE, BRAKEHOSE, BRAKE
-
122GU-25871-00-00 PIPE, BRAKEPIPE, BRAKE
-
132GU-25882-00-00 PIPE, BRAKEPIPE, BRAKE
-
142GU-25866-00-00 CIRCLIPCIRCLIP
-
1597027-08025-00 BOLTBOLT
-
1692907-08600-00 WASHER, PLATEWASHER, PLATE
-
1790401-10159-00 BOLT, UNIONBOLT, UNION
-
1890201-10118-00 WASHER, PLATEWASHER, PLATE
