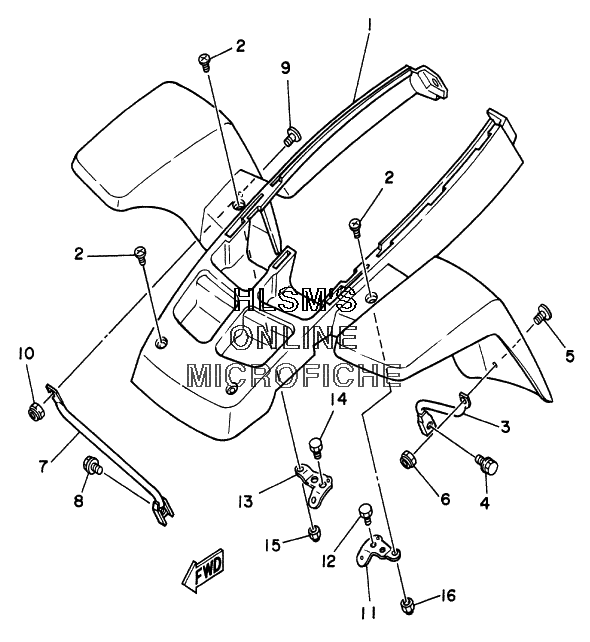

FENDER - FRONT для Yamaha BANSHEE YFZ350N (5FKA) - 2001 года выпуска
-
№АртикулНазвание
-
12GU-W2151-91-00 FRONT FENDER COMP. (OUJ) (RADICAL WHITE)FRONT FENDER COMP. (OUJ) (RADICAL WHITE)
-
12GU-W2151-B1-00 FRONT FENDER COMP. (583) (DEEP PURPLISH BLUE SOLID)FRONT FENDER COMP. (583) (DEEP PURPLISH BLUE SOLID)
-
290149-06306-00 SCREWSCREW
-
32GU-21513-00-00 STAY, FENDERSTAY, FENDER
-
495827-06010-00 BOLT, FLANGEBOLT, FLANGE
-
590149-06306-00 SCREWSCREW
-
695607-06100-00 NUT, UNUT, U
-
72GU-21514-00-00 STAY, FENDERSTAY, FENDER
-
895827-06010-00 BOLT, FLANGEBOLT, FLANGE
-
990149-06306-00 SCREWSCREW
-
1095607-06100-00 NUT, UNUT, U
-
112GU-21587-00-00 STAYSTAY
-
1297027-08016-00 BOLTBOLT
-
132GU-21588-00-00 STAYSTAY
-
1497027-08016-00 BOLTBOLT
-
1595607-06100-00 NUT, UNUT, U
-
1695607-06100-00 NUT, UNUT, U
