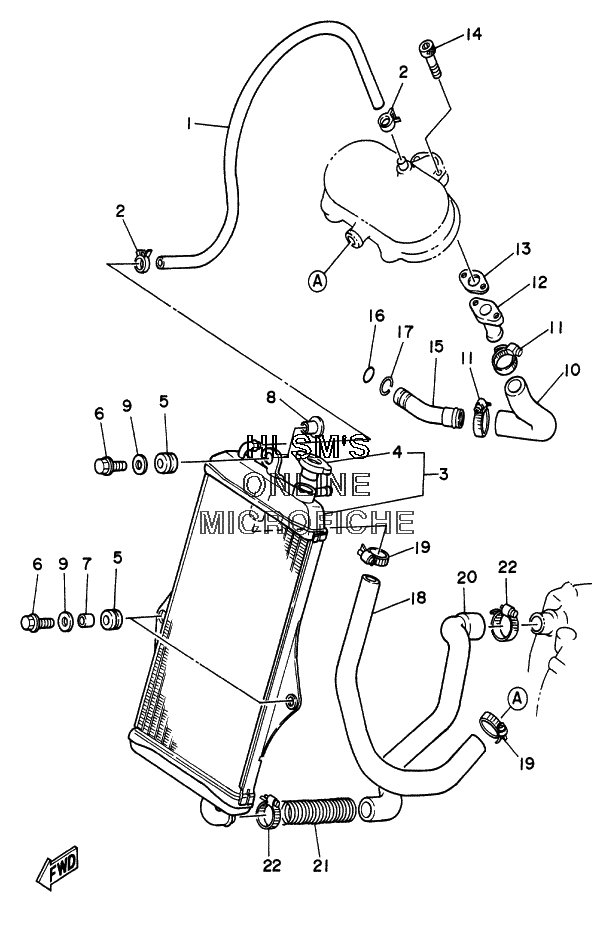

RADIATOR W/HOSES для Yamaha BANSHEE YFZ350N (5FKA) - 2001 года выпуска
-
№АртикулНазвание
-
12GU-12485-00-00 PIPEPIPE
-
290467-13083-00 CLIPCLIP
-
32GU-12460-01-00 RADIATOR ASSYRADIATOR ASSY
-
422W-12462-00-00 ...CAP, RADIATOR...CAP, RADIATOR
-
590480-15470-00 GROMMETGROMMET
-
695807-06025-00 BOLT, FLANGEBOLT, FLANGE
-
790387-0714B-00 COLLARCOLLAR
-
890387-063G3-00 COLLARCOLLAR
-
990201-060A3-00 WASHER, PLATEWASHER, PLATE
-
1029L-12481-00-00 PIPEPIPE
-
1190450-32015-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
124L0-12479-00-00 JOINTJOINT
-
133XV-12435-00-00 GASKETGASKET
-
1491317-06020-00 BOLTBOLT
-
1529L-12469-00-00 JOINTJOINT
-
1693210-17239-00 O-RINGO-RING
-
1793440-19083-00 CIRCLIPCIRCLIP
-
182GU-12482-00-00 PIPEPIPE
-
1990450-32015-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
202GU-12484-00-00 PIPEPIPE
-
2111H-12516-00-00 COVER, WATER INLETCOVER, WATER INLET
-
2290450-32015-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
