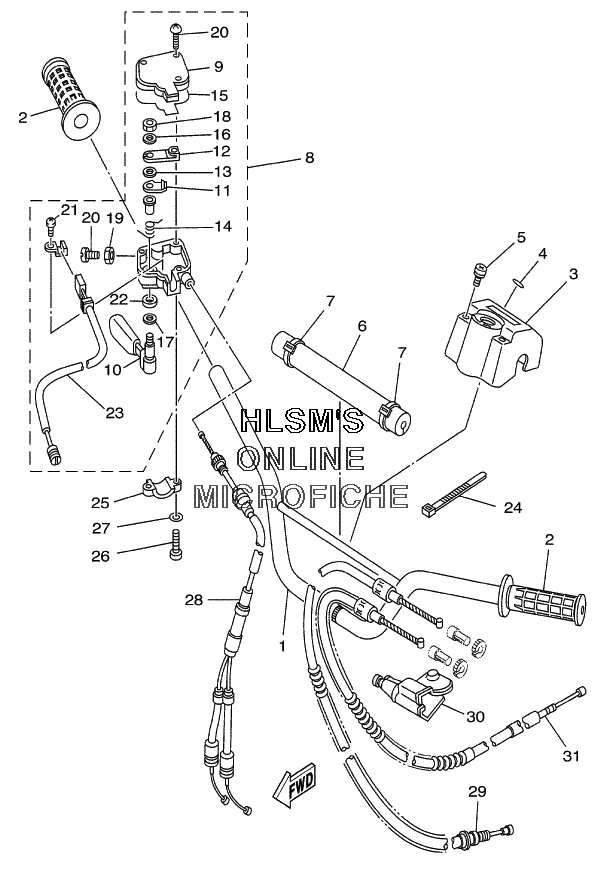

HANDLEBAR W/ THOTTLE - CABLES для Yamaha BANSHEE YFZ350N (5FKA) - 2001 года выпуска
-
№АртикулНазвание
-
12GU-26111-00-00 HANDLEBARHANDLEBAR
-
23GB-26241-00-00 GRIP (LEFT)GRIP (LEFT)
-
32GU-26124-01-00 PROTECTOR, HANDLEBARPROTECTOR, HANDLEBAR
-
45GT-2836B-00-00 TUNING FORK MARKTUNING FORK MARK
-
590159-06093-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
63GD-2622K-00-00 PROTECTOR 1PROTECTOR 1
-
7437-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
83GG-26250-00-00 THROTTLE LEVER ASSYTHROTTLE LEVER ASSY
-
92GU-2628F-00-00 ...CAP, GEAR...CAP, GEAR
-
102GU-2625G-01-00 ...LEVER, THROTTLE...LEVER, THROTTLE
-
112GU-2625H-00-00 ...ARM, THROTTLE...ARM, THROTTLE
-
122GU-2625J-00-00 ...ARM, THROTTLE...ARM, THROTTLE
-
132GU-26259-00-00 ...COLLAR...COLLAR
-
142GU-26314-00-00 ...SPRING...SPRING
-
152GU-2628G-00-00 ...GASKET...GASKET
-
162GU-26398-00-00 ...WASHER...WASHER
-
171NV-26129-00-00 ...WASHER...WASHER
-
1895602-05100-00 ...NUT, U...NUT, U
-
1995306-05700-00 ...NUT...NUT
-
2098506-05020-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
2198902-03006-00 ...SCREW, BIND...SCREW, BIND
-
2293104-09025-00 ...OIL SEAL...OIL SEAL
-
233GG-82567-00-00 ...SWITCH, THROTTLE...SWITCH, THROTTLE
-
24437-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
254V4-82913-00-00 HOLDER, LEVER LOWERHOLDER, LEVER LOWER
-
2698507-05020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2792907-05100-00 WASHER, SPRINGWASHER, SPRING
-
282GU-26260-01-00 CABLE ASSY, THROTTLE & PUMPCABLE ASSY, THROTTLE & PUMP
-
292GU-26335-01-00 CABLE, CLUTCHCABLE, CLUTCH
-
301UY-2637A-01-00 COVER, HANDLE LEVERCOVER, HANDLE LEVER
-
311UY-26341-02-00 CABLE, BRAKECABLE, BRAKE
