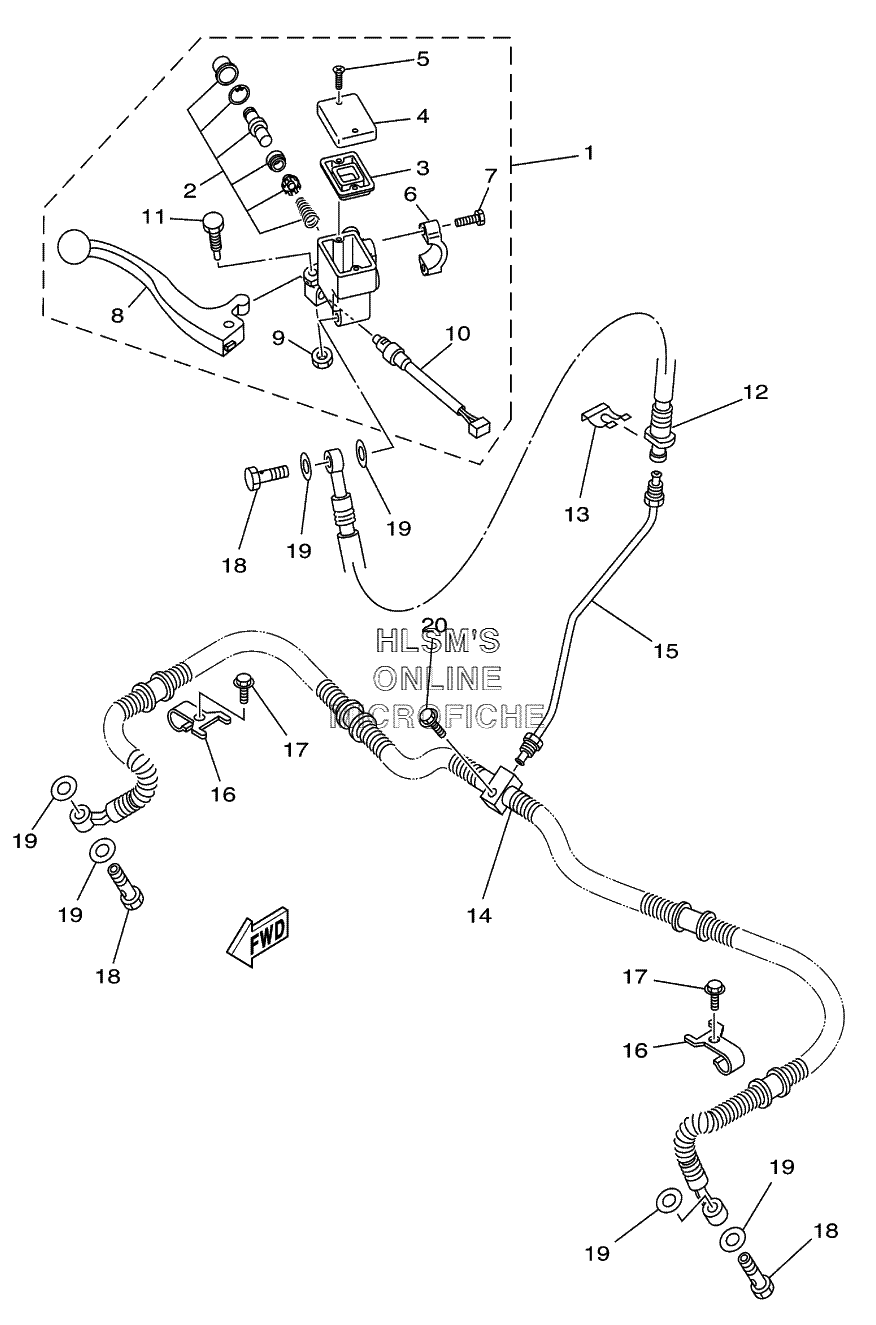

BRAKE - FRONT MASTER CYLINDER для Yamaha KODIAK 4X4 HUNTER YFM400FAHP (5GHR) - 2002 года выпуска
-
№АртикулНазвание
-
15KM-2583T-01-00 MASTER CYLINDER ASSYMASTER CYLINDER ASSY
-
28CR-W0041-00-00 ......CYLINDER KIT, MASTER......CYLINDER KIT, MASTER
-
34L0-25854-00-00 ......DIAPHRAGM, RESERVOIR......DIAPHRAGM, RESERVOIR
-
45JX-25852-01-00 ......CAP, RESERVOIR......CAP, RESERVOIR
-
598706-04012-00 ......SCREW, FLAT HEAD......SCREW, FLAT HEAD
-
65GH-25867-00-00 ......BRACKET, MASTER CYLINDER......BRACKET, MASTER CYLINDER
-
75EB-26332-00-00 ......BOLT......BOLT
-
85KM-83922-00-00 ......LEVER 2......LEVER 2
-
995606-06100-00 ......NUT, U......NUT, U
-
105LP-83980-00-00 ......FRONT STOP SWITCH ASSY......FRONT STOP SWITCH ASSY
-
111FK-2589F-00-00 ......BOLT, LEVER......BOLT, LEVER
-
125GH-25872-00-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
132GU-25866-00-00 CIRCLIPCIRCLIP
-
145GH-25873-00-00 HOSE, BRAKE 2HOSE, BRAKE 2
-
155GH-25871-00-00 PIPE, BRAKEPIPE, BRAKE
-
165GH-25875-00-00 HOLDER, BRAKE HOSE 1HOLDER, BRAKE HOSE 1
-
1795827-06012-00 BOLT, FLANGEBOLT, FLANGE
-
1890401-10159-00 BOLT, UNIONBOLT, UNION
-
1990201-10118-00 WASHER, PLATEWASHER, PLATE
-
2095827-06025-00 BOLT, FLANGEBOLT, FLANGE
